Take command on the water with the Garmin Reactor 40 Kicker Autopilot—engineered for boats with small gasoline outboard motors up to 20 horsepower. It maintains your heading and follows your route, keeping you on course even in wind, waves, or strong currents so you can focus on the day’s catch or the next destination.
Floating handheld remote provides a bright, sunlight-visible display for easy, on-the-fly control. Fine-tune autopilot throttle settings with a simple button press, and quickly drop to idle speed when netting fish or mooring up.
Why it shines on your kicker setup
-
Heading hold and route guidance to keep you on course even in challenging conditions.
-
Instant throttle adjustments at your fingertips for precise control and quicker response during docking or feeding lines.
-
Easy integration with compatible Garmin chartplotters or NMEA 2000 network GPS systems for a seamless onboard setup (without requiring the GHC20 display).
- Designed specifically for small outboards, delivering reliable autopilot performance where it counts—salmon, trout, walleye, or everyday cruising.
- Remote uses 2 x AA batteries (sold separately) for dependable, portable operation.

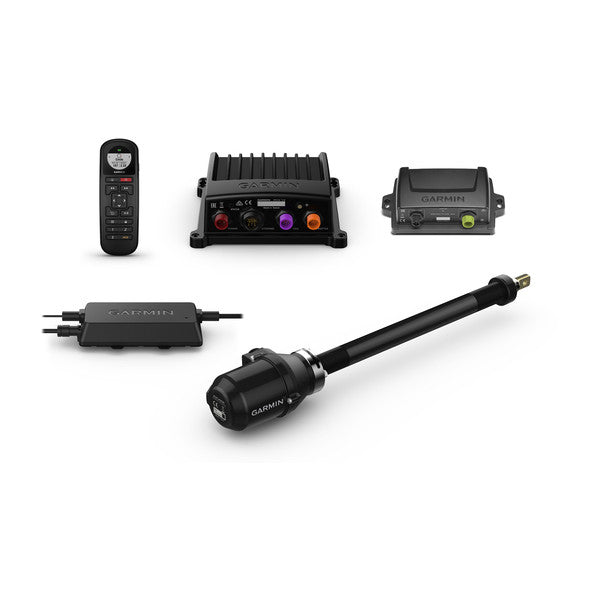

In the box
- Autopilot Remote
- CCU (Course Computer Unit)
- ECU (Electronic Control Unit)
- ECU power cable
- ECU to CCU interconnect cable
- Steering actuator
- Throttle actuator
- Documentation
Specifications at a glance
- dimensions: 6.9" x 5.6" x 2.6" (17.5 x 14.2 x 6.5 cm)
- Supply voltage range: 10 to 32 volts
- Operating temperature range: -20° to 70° C
- Typical power consumption: 1–2 amps (depends on conditions)
- Water rating: IPX7 for ECU
-
Throttle actuator dimensions: 6.0" x 2.5" x 1.1" (15.1 x 5.9 x 2.8 cm)
- Throttle actuator water rating: IPX6
- Steering actuator extends 4" from end of tilt tube; motor diameter 2.5" (64 mm)
- Overall length, closed: 17.5" (44.5 cm); extended: 25.3" (64.4 cm)
- Remote dimensions (W x H x D): 6.0" x 2.0" x 1.3" (15.2 x 5.2 x 3.2 cm)
- Remote display: 1.2" (3.0 cm) diameter, sunlight-visible transflective memory-in-pixel (MIP), 240 x 240 pixels
- Remote power: 2 x AA batteries (sold separately)
- Weight: 3.8 oz (109 g) without batteries
| ECU-14 |
| Dimensions |
6.9" x 5.6" x 2.6" (17.5 x 14.2 x 6.5 cm) |
| Supply voltage range |
10 to 32 volts |
| Operating temperature range |
-20° to 70° C |
| Typical power consumption |
1 to 2 amps average depending on weather conditions |
| Water rating |
IPX7 |
| Throttle Actuator |
| Dimensions |
6.0" x 2.5" x 1.1" (15.1 x 5.9 x 2.8 cm) |
| Operating temperature range |
0° to 70° C |
| Water rating |
IPX6 |
| Steering Actuator |
| Dimensions |
| Motor side |
Extends 4" (10.3 cm) from end of tilt tube |
| Motor |
2.5" (6.2 cm) diameter |
| Overall length |
Closed 17.5" (44.5 cm); Extended 25.3" (64.4 cm) |
| Steering Acuator General |
| Operating temperature range |
-20° to 70° C |
| Water rating |
IPX7 |
| Reactor Remote |
| Physical dimensions (W x H x D) |
6.0" x 2.0" x 1.3" (15.2 x 5.2 x 3.2 cm) |
| Weight |
3.8 oz (109 g) without batteries |
| Display type |
Sunlight-visible, transflective memory-in-pixel (MIP) |
| Display size |
1.2" (3.0 cm) diameter |
| Display resolution |
240 x 240 pixels |
| Power |
2 x AA batteries (sold separately) |
