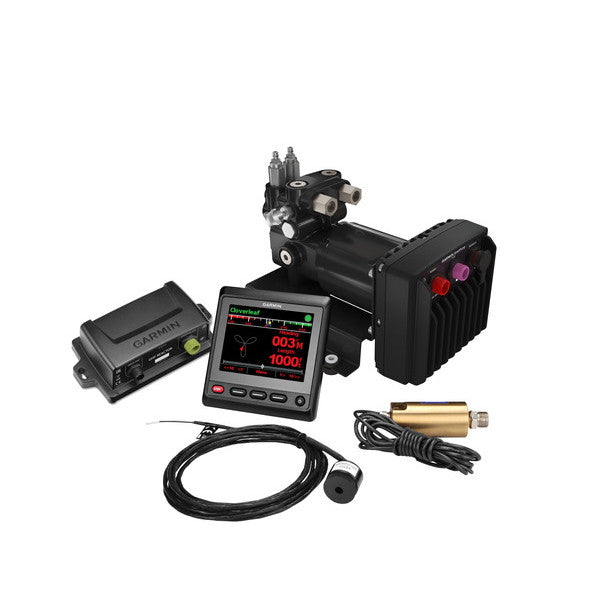

Garmin Reactor 40 Autopilot With SmartPump v2 And GHC20 is a hydraulic corepack that delivers precise, responsive steering for powerboats and sailboats. Its solid-state 9-axis AHRS lets you mount the system in virtually any orientation, while advanced control reduces heading error, course deviation, and unnecessary rudder movement for a smoother ride and lower power draw. Commissioning and calibration are fast and straightforward, so you can enjoy hands-free navigation sooner.
Key benefits
-
9-axis solid-state AHRS: mountable in any orientation for flexible installation with minimal heading error.
-
Shadow Drive technology: you stay in control even when the autopilot is engaged, providing safer, more intuitive steering.
-
SmartPump v2: a compact, brushless pump that fits most hydraulically steered boats, offering higher reliability, better thermal performance, quieter operation, and lower power consumption.
-
One-size-fits-most pump: SmartPump v2 automatically aligns with cylinder sizes from 4-24 cu in; 7-second lock-to-lock up to 17 cu in, taking the guesswork out of installation.
-
Automatic flow rate: maximum flow rate adjustable from 0 to 2.4 L/min for precise steering control.
-
Intelligent Rudder Rate Technology: smooth, natural steering response under varying sea conditions.
-
Color-coded connectors: easy, headache-free installation.
-
Auto Guidance 2 ready: when paired with a compatible Garmin chartplotter and BlueChart g2 Vision charts, the system can automatically steer GPS paths (optional feature).
-
Complete autopilot package: Reactor 40 with SmartPump v2 combines motor drive and pump in a single assembly for a compact, reliable solution.
Designed to deliver the ultimate hydraulic autopilot performance, Reactor 40 with SmartPump v2 and GHC20 reacts to sea conditions to hold your course precisely, even as the boat pitches and rolls. It’s a total autopilot solution that’s powerful enough for serious boating yet simple enough to install and operate, putting you back on the water with confidence.
| Temperature range |
From 5°F to 131°F (from -15°C to 55°C) |
| Power cable length |
9 ft (2.7 m) |
| Power input |
11.5-30 Vdc |
| Fuse |
40 A, blade-type |
| Main power usage |
standby - less than 1 A; engaged - 5-10 A; peak - 34 A |
| Flow rate |
Configurable from 0 to 2.4 L per minute |
| CCU Specifications |
| Dimensions |
3 19/32" diameter (91.4 mm) |
| Weight |
5.6 oz (159 g) |
| Temperature range |
From 5°F to 131°F (from -15°C to 55°C) |
| Case material |
Fully gasketed, high-impact plastic, waterproof to IEC 529 IPX7 standards |
| CCU cable length |
9.5 ft (3 m) |
| NMEA 2000 power input |
9-16 V |
| NMEA 2000 LEN |
3 (150 mA) |
| Buzzer/Alarm Specifications |
| Dimensions (L Diameter) |
29/32" 1.0" (23 mm 25 mm) |
| Weight |
2.4 oz (68 g) |
| Temperature range |
from 5°F to 131°F (from -15°C to 55°C) |
| Cable length |
10 ft (3.0 m) |
| GHC 20 Specs |
| Unit dimensions, WxHxD |
4.3 " x 4.4 " x 1.9 " (10.9 x 11.2 x 4.8 cm) |
| Display resolution, WxH |
320 x 240 pixels |
| Display type |
QVGA color LCD display |
| NMEA output |
NMEA 0183, NMEA 2000® |
| Supply voltage |
Powered by NMEA 2000 bus, 9-16 VDC, units operate up to 32 VDC |
| Operating temperature |
-15° C to 70 C° (5° F to 158° F) |
| Max power consumption |
3W |
| Viewing angle |
170° |
| Brightness |
1200 cd/m2 (NIT) |
| Water rating |
IPX7 |
| NMEA 2000 LEN (Load Equivalency Number) |
7 (350 mA at 9VDC) |
