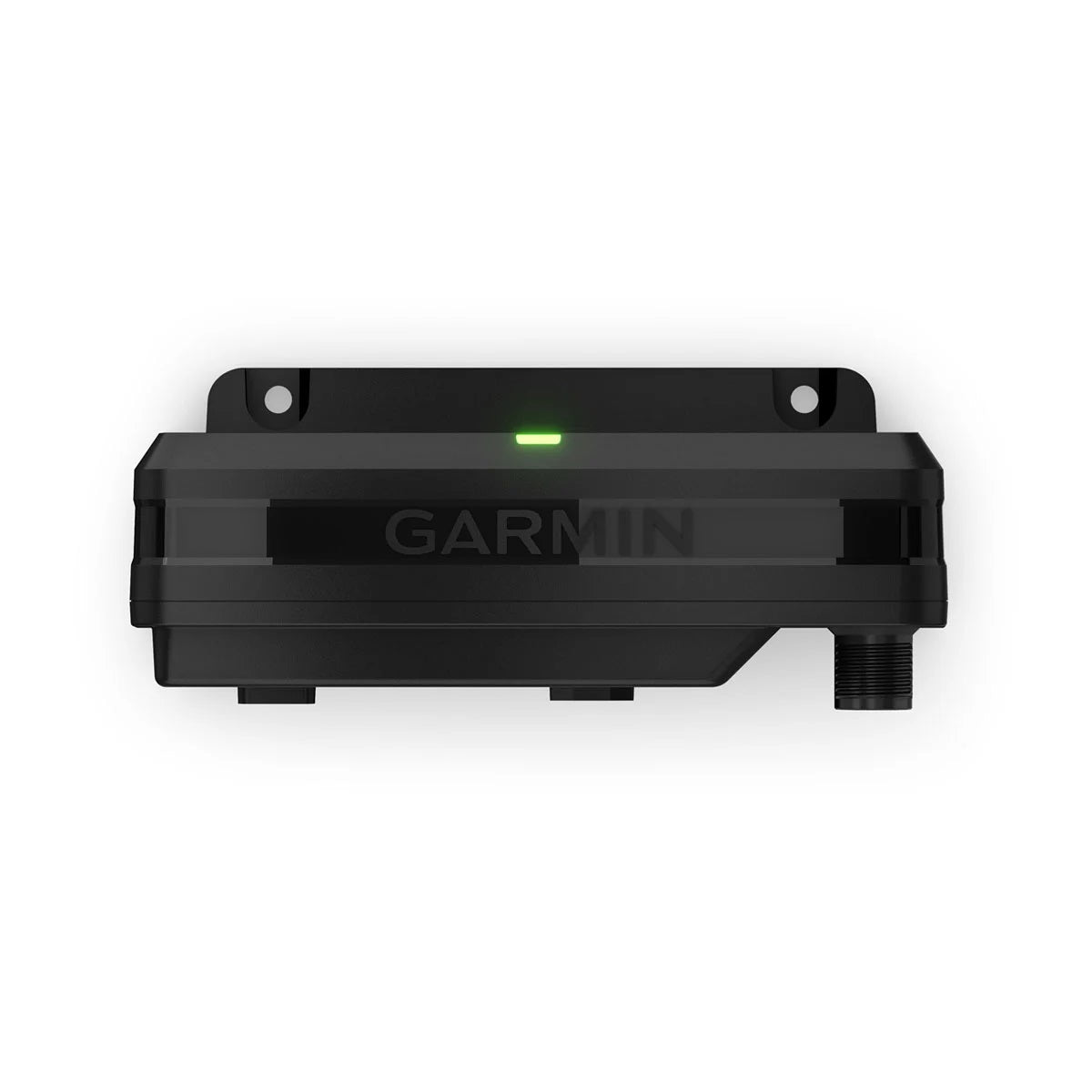

Meet the Garmin Spectra LC102 LED Control Module, Model 010-02829-00 — the brain behind your boat’s lighting system. Control lights from your chartplotter or smartphone, assign groups, and craft the perfect ambience from bow to stern with precision and ease.
Key advantages:
-
Unified lighting control — assign and manage different light groups for cup holders, speakers, strip or courtesy lights, and more to create your own vibe.
-
NMEA 2000 network connectivity — control lights over the NMEA 2000 network with a compatible chartplotter or via the ActiveCaptain app on your smartphone.
-
Music-synced lighting — enjoy the audio sync feature to sync LED lighting with your music for immersive on-deck visuals.
-
Marine audio compatibility — control LED lighting on Fusion Apollo™ stereos and JL Audio speakers/subwoofers (wake tower speakers sold separately).
-
Scalable system — start with a core setup and add more lights later to grow your installation.
-
Rugged, marine-grade design — built to withstand life on the water with IP66/IP67 ratings for confidence in harsh conditions.
-
Premium control options — operate via a compatible MFD or the ActiveCaptain app for convenient, on-the-water customization.
What makes it work
-
Lighting options — RGB, RGBW, CRGBW, or single-channel configurations to match any mood.
-
Lighting modes — color pick, audio sync (color blend/audio spectrum), and dynamic effects.
-
Output and protection — 2 A max per output; overvoltage and overcurrent protection keep your system safe.
-
Power and size — operates on 10.8–16 V (12 V systems) or 21.6–32 V (24 V systems); compact footprint 4.45" x 2.05" x 1.85" (113 x 52 x 47 mm); weighs 2.93 oz (83 g).
-
Electrical — NMEA 2000 LEN 2 (≤ 70 mA); compass-safe distance 7.87" (20 cm).
Specifications at a glance
-
Warranty: 2 years
-
Operating temperature: 32° to 122°F (0° to 50°C)
-
Water rating: IP66/IP67
-
Input current (max): 2 A
-
Output current (max): 2 A per output connector
-
What's in the box: Spectra LC102, power flying lead with water-resistant three-way connector, LED flying lead with water-resistant six-way connector, tee connector for NMEA 2000 network, backbone/drop cable (0.3 m) for NMEA 2000, mounting screws, documentation
What's in the box
- Spectra LC102 control module
- Power flying lead with water-resistant three-way connector
- LED flying lead with water-resistant six-way connector
- Tee connector for the NMEA 2000 network
- Backbone/drop cable (0.3 m) for the NMEA 2000 network
- Mounting screws
- Documentation
Upgrade your boat’s atmosphere with the Garmin Spectra LC102 — a scalable, intelligent LED control solution that makes lighting as dynamic as your voyage. Control, customize, and connect with ease for an unbeatable onboard experience.
| General |
| Unit dimensions (WxHxD) |
4.45" x 2.05" x 1.85" (113 x 52 x 47 mm) |
| Weight |
2.93 oz (83 g) |
| Water rating |
IP66/IP67 |
| Operating temperature range |
32° to 122° F (0° to 50° C) |
| Compass-safe distance |
7.87" (20 cm) |
| Warranty |
2 years |
| Electrical |
| Input voltage |
10.8 to 16 V (12 V system)
21.6 to 32 V (24 V system) |
| Input current (max) |
2 amp |
| Output current (max) |
2 A (per output connector) |
| NMEA 2000® LEN |
2 (Less than or Equal to 70 mA) |
| Over voltage protection |
yes |
| Over current protection |
yes |
| Lighting Features |
| LED connection types |
RGB, RGBW, CRGBW, single channel |
| Lighting modes |
Color pick, audio sync (color blend/audio spectrum), effects |
| Premium control and setup via |
MFD or ActiveCaptain® app |
| Control via |
Fusion Apollo™ Stereo |
