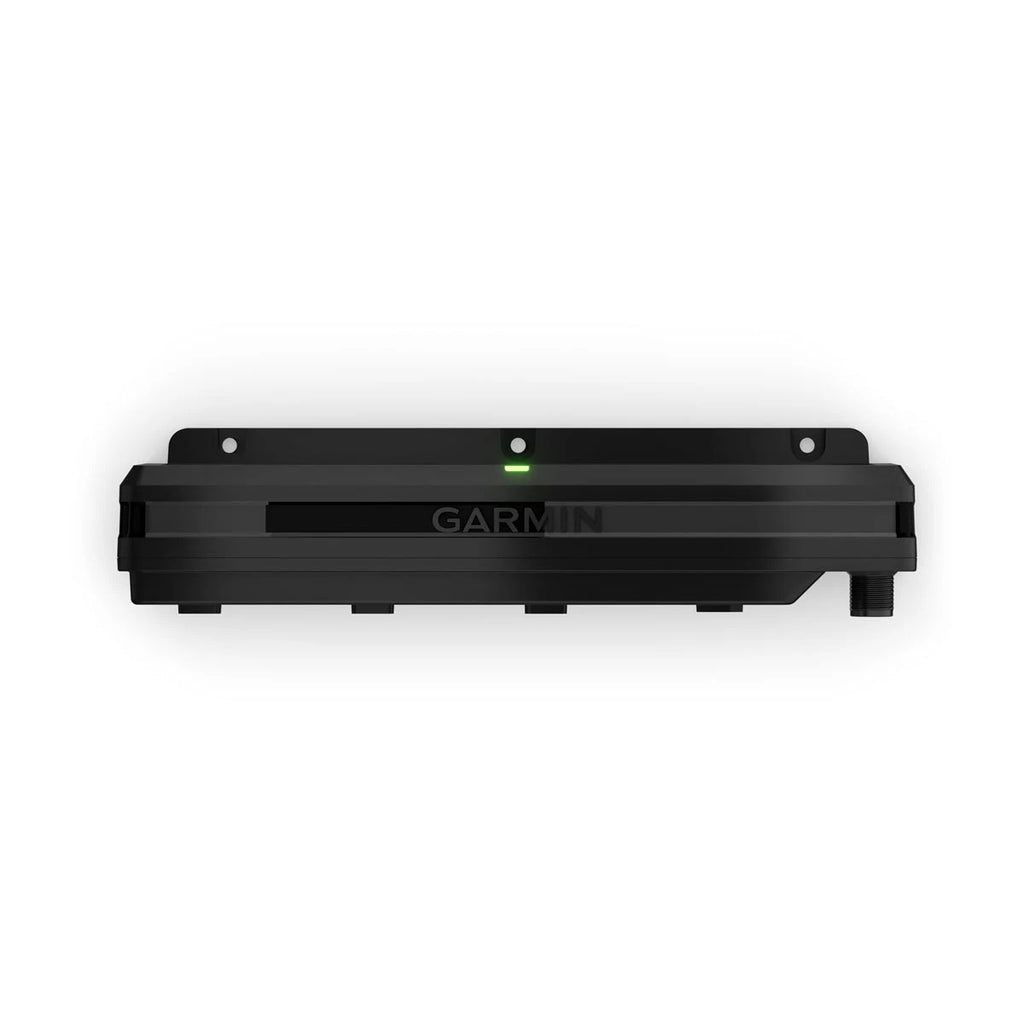

Garmin Spectra LC302 LED Control Module (Model: 010-02830-00) puts you in command of your boat's LED lighting—from bow to stern and every light in between. Control lights from a compatible chartplotter or your smartphone—the lights are not included.
-
Three independent output connectors (max 2 A per output) to manage different zones like cup holders, speakers, strip lighting, and courtesy lights—set up scenes that match your vibe.
- Control over the NMEA 2000 network via your chartplotter or the ActiveCaptain app on a compatible smartphone for seamless onboard lighting management.
-
Color options and compatibility — supports RGB, RGBW, CRGBW, and single-channel lighting to fit any mood or deck color scheme.
-
Audio sync feature lets LED lighting pulse and blend with your music for immersive ambiance on deck.
- integrates with Fusion Apollo stereo systems to extend control to Fusion and JL Audio speakers, subwoofers, and wake tower speakers (sold separately).
-
Scalable system—add more lights after the initial install to grow your setup over time.
- Built for life on the water with IP66/IP67 ratings for rugged marine protection.
-
Specifications: Input voltage 10.8–16 V (12 V system) or 21.6–32 V (24 V system); max input current 6 A; output current 2 A per output; NMEA 2000 LEN ≤ 70 mA; overvoltage and overcurrent protection.
Dimensions and Warranty
- Unit dimensions: 7.76" x 2.05" x 1.85" (197 x 52 x 47 mm); weight: 5.57 oz (158 g).
- Warranty: 2 years.
What’s in the Box
- Spectra LC302 power flying lead with water-resistant three-way connector
- Three LED flying leads with water-resistant six-way connectors
- Tee connector for the NMEA 2000 network
- Backbone/drop cable (0.3 m) for the NMEA 2000 network
- Mounting screws
- Documentation
| General |
| Unit dimensions (WxHxD) |
7.76" x 2.05" x 1.85" (197 x 52 x 47 mm) |
| Weight |
5.57 oz (158 g) |
| Water rating |
IP66/IP67 |
| Operating temperature range |
32° to 122° F (0° to 50° C) |
| Compass-safe distance |
7.87" (20 cm) |
| Warranty |
2 years |
| Electrical |
| Input voltage |
10.8 to 16 V (12 V system)
21.6 to 32 V (24 V system) |
| Input current (max) |
6 amp |
| Output current (max) |
2 A (per output connector) |
| NMEA 2000® LEN |
2 (Less than or Equal to 70 mA) |
| Over voltage protection |
yes |
| Over current protection |
yes |
| Lighting Features |
| LED connection types |
RGB, RGBW, CRGBW, single channel |
| Lighting modes |
Color pick, audio sync (color blend/audio spectrum), effects |
| Premium control and setup via |
MFD or ActiveCaptain® app |
| Control via |
Fusion Apollo™ Stereo |
