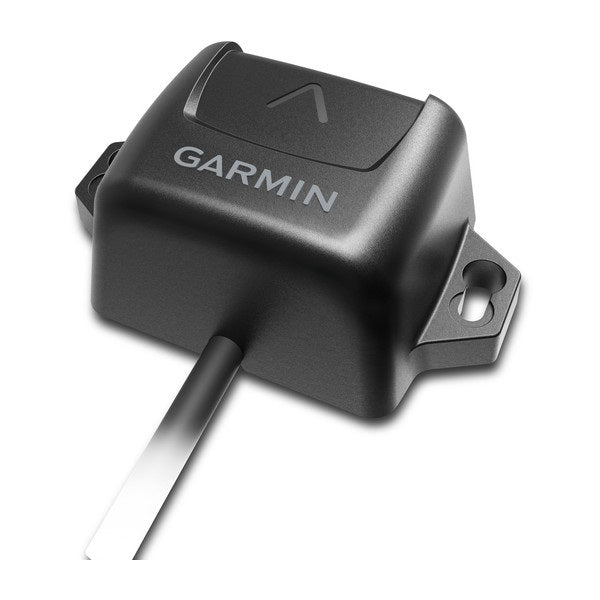

Take command of your chartplotter’s orientation with the Garmin SteadyCast Heading Sensor. Designed for boaters who demand accurate, quickly updated heading data, it keeps your on-screen bow alignment true even when trolling or navigating rough water.
-
Model: 010-11417-10 with integrated NMEA 2000 drop cable
-
Heading updates: 10 Hz default output for fast, reliable heading
-
Heading accuracy: ±3° to keep chart orientation aligned with your boat’s heading
-
Interface: NMEA 2000 connection for simple installation on compatible Garmin chartplotters
-
Calibration: Two-step calibration; basic calibration supported for non-Garmin displays
-
Mounting flexibility: 9-axis MEMS technology allows installation in any orientation, reducing magnetic interference
-
Durability: IPX7 water rating for rugged marine environments
-
Power: 9–32 V DC input for versatile installation
-
Dimensions: 3.4" L × 2.1" W × 1.3" H (86.3 × 52.9 × 33.7 mm)
-
What's in the box: SteadyCast heading sensor with integrated NMEA 2000 drop cable (6 ft) and NMEA 2000 T-connector
With SteadyCast, your chartplotter responds to your true heading in real time, helping you cast and navigate with confidence. The high-precision, 10 Hz updates keep the screen orientation aligned during quick maneuvers, trolling, and even when the boat sits dead in the water. Its flexible mounting and rugged build mean it performs reliably in harsh marine conditions, while the straightforward plug-and-play setup minimizes installation time. Whether you’re on a calm lake or a chop-filled sea, SteadyCast provides stable, accurate heading information you can trust for better navigation and fishing efficiency.
| Default heading output |
10Hz |
| Output heading |
±3 degree accuracy |
| Water rating |
IPX7 |
| LEN |
2 |
| Input Voltage |
9-32vDC |
| Dimensions |
(LxWxH): 3.4" x 2.1" x 1.3" (86.3 x 52.9 x 33.7 mm) |
