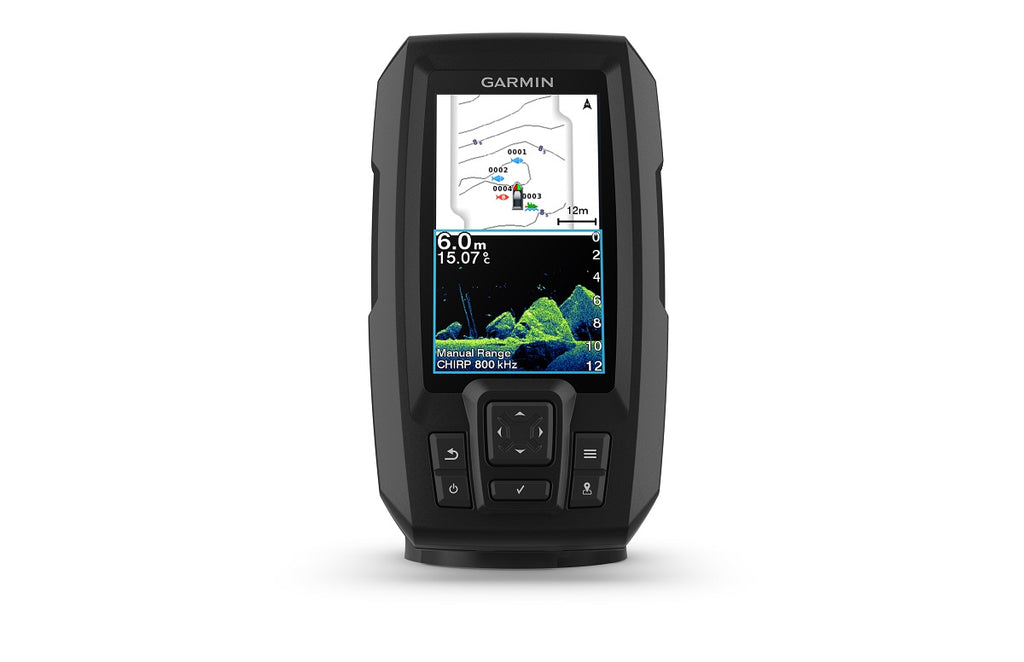

Garmin STRIKER Vivid 4cv is a compact, color-rich fishfinder and GPS track plotter designed for anglers who crave crisp sonar, reliable waypoint navigation, and on-device mapping. The 3.5-inch display offers seven vivid color options to maximize contrast, helping you spot fish, structure, and contours with clarity.
-
Display: 3.5" QSVGA color display with 272 x 480 resolution and seven vivid color options for clear, high-contrast sonar views.
-
Transmit Power: 300 W RMS transmit power for strong, clear sonar returns.
-
Sonar capabilities: Dual-frequency 50/200 kHz; Dual-beam 77/200 kHz; CHIRP traditional sonar; CHIRP ClearVü scanning sonar (260/455/800 kHz).
-
Bottom Lock: Bottom Lock shows returns from the bottom up for easier target recognition.
-
A-Scope: A-SCOPE provides real-time display of fish passing through the transducer beam.
-
Fish Symbol ID: Fish Symbol ID with AutoGain Technology to minimize clutter and maximize targets.
-
Water data: Water temperature log and graph; water temperature sensor included.
-
GPS & mapping: Integrated GPS; mark Waypoints; plan Routes; track Course over Ground; view boat speed.
-
Mapping capacity: Store up to 2 million acres of maps with 1' contours; QuickDraw Contours for on-device map creation.
-
Transducer & mounting: GT20 transducer included; tilt/swivel mount; transom and trolling motor mounting hardware and cable; additional 4-pin transducer port.
-
Rugged & compact design: IPX7 water rating; compact dimensions (3.9" x 6.9" x 1.8"); lightweight at 0.7 lb.
-
In the box: STRIKER Vivid 4cv fishfinder; GT20-TM transducer; Power/data cable; Tilt/swivel mount; Hardware; Documentation.
With powerful CHIRP sonar, reliable waypoint navigation, and on-device mapping, STRIKER Vivid 4cv helps you locate productive spots, map fishing grounds on the fly, and navigate confidently on lakes and coastal waters. The combination of detailed sonar, GPS plotting, and QuickDraw Contours makes it a practical, easy-to-use tool for day-long trips on the water.
| General |
| PHYSICAL DIMENSIONS |
3.9'' x 6.9'' x 1.8'' (9.8 x 17.4 x 4.5 cm) |
| DISPLAY RESOLUTION |
272 X 480 pixels |
| DISPLAY TYPE |
QSVGA |
| WEIGHT |
0.7 lbs (0.3 kg) |
| WATER RATING |
IPX7 |
| TRANSMIT POWER |
300 W (RMS) |
| Sonar Features & Specifications |
| DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE |
Yes |
| DUAL-BEAM (77/200 KHZ) SONAR CAPABLE |
Yes |
| FREQUENCIES SUPPORTED |
Traditional: 50/77/200 kHz
CHIRP (mid and high)
ClearVü 260/455/800 kHz |
| BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) |
Yes |
| WATER TEMPERATURE LOG AND GRAPH |
Yes |
| Fishfinder Features |
| SPLIT-SCREEN ZOOM |
Yes |
| ULTRASCROLL® (DISPLAYS FISH TARGETS AT HIGHER BOAT SPEEDS) |
Yes |
| FISH SYMBOL ID (HELPS IDENTIFY FISH TARGETS) |
Yes |
| AUTOGAIN TECHNOLOGY (MINIMIZES CLUTTER, MAXIMIZES TARGETS) |
Yes |
| ADJUSTABLE DEPTH LINE (MEASURES DEPTH OF UNDERWATER OBJECTS) |
Yes |
| A-SCOPE (REAL TIME DISPLAY OF FISH PASSING THROUGH TRANSDUCER BEAM) |
Yes |
| WATER TEMPERATURE SENSOR INCLUDED |
Yes |
| Additional |
| One 4-pin transducer port |
Yes |
| Quickdraw Contours |
Yes |
| Integrated GPS |
Yes |
| Mark Waypoints |
Yes |
| Course over Ground (COG) |
Yes |
| Current draw @ 12V |
0.40A |
