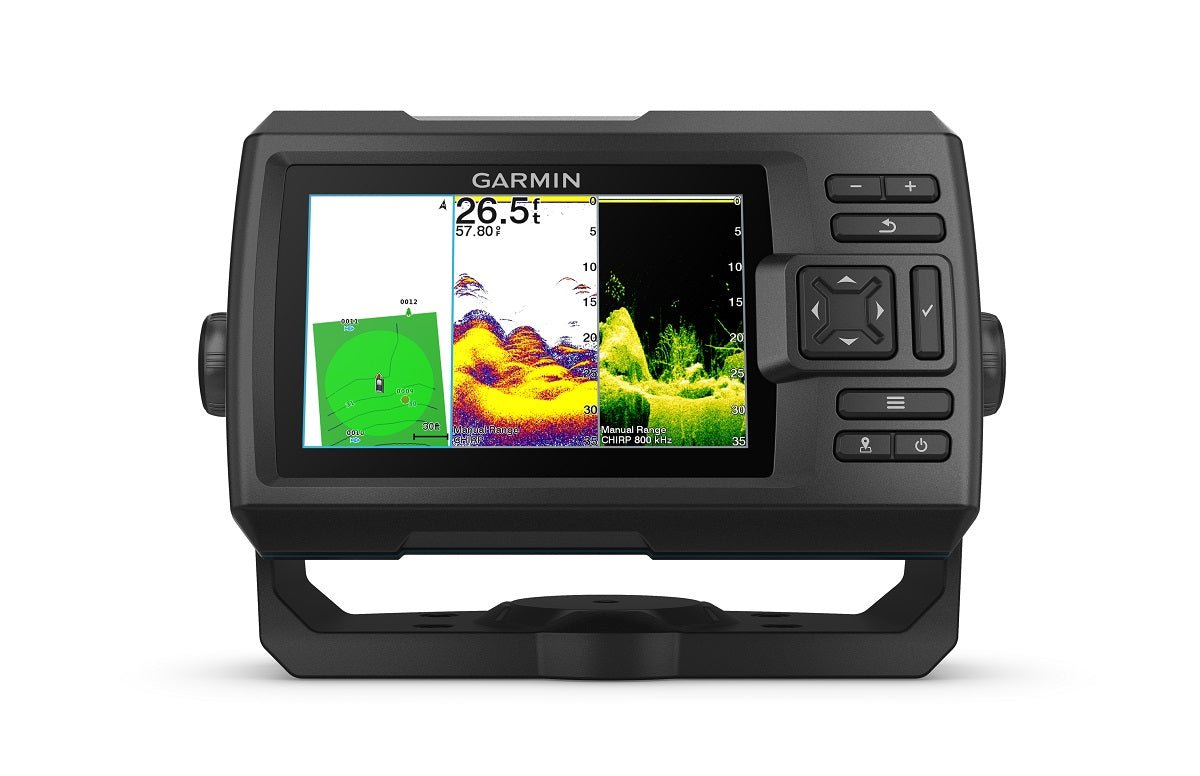

Meet the Garmin STRIKER Vivid 5cv — a compact 5-inch fishfinder with GPS track plotting and CHIRP sonar designed for anglers who want precise readings and clear visuals on the water. The GT20 transducer delivers both CHIRP traditional and CHIRP ClearVü scanning sonar for detailed, real-time views of fish and underwater structure.
-
Display: 5" WVGA color display with 800 x 480 resolution for sharp sonar and maps
-
Color options: 7 vivid color options to maximize contrast between fish, structure, and bait
-
Sonar technology: CHIRP traditional sonar (50/77/200 kHz) and CHIRP ClearVü scanning sonar (260/455/800 kHz) for comprehensive coverage
-
Bottom Lock: Shows returns from the bottom up for clearer interpretation
-
AutoGain: Minimizes clutter while maximizing targets
-
UltracScroll: Displays fish targets at higher boat speeds
-
A-Scope: Real-time display of fish passing through the transducer beam
-
Water temperature sensor: Included for on-water condition readings
-
GPS & navigation: Integrated GPS with waypoint marking, Course Over Ground (COG), and the ability to plan routes and view boat speed
-
QuickDraw Contours: Create and store your own 1' contour maps for up to 2 million acres
-
Expansion port: One additional 4-pin transducer port for expansion
-
Durability: IPX7 water rating for rugged on-water reliability
-
Power efficiency: Low power draw at 0.40A @ 12V for extended outings
-
Transducer included: GT20-TM transducer providing CHIRP traditional and CHIRP ClearVü
-
What’s in the box: Includes tilt/swivel mount, transom and trolling motor mounting hardware, power/data cable, Garmin bumper sticker, and documentation
-
Transmit power: 500 W RMS for strong echoes
With CHIRP traditional and ClearVü sonar, you can distinguish fish, bait, and structure at a glance, while waypoint marking and route planning help you return to productive spots quickly. QuickDraw Contours lets you map 1' contours across up to 2 million acres, turning on-water data into a personalized map library. The compact 5-inch form factor, low power draw, and durable IPX7 construction make STRIKER Vivid 5cv a reliable companion for serious fishing days on a variety of waters.
| General |
| PHYSICAL DIMENSIONS |
7.4’’ x 4.5’’ x 2.1’’ (18.8 x 11.6 x 5.4 cm) |
| DISPLAY RESOLUTION |
800 x 480 pixels |
| DISPLAY TYPE |
WVGA color |
| WEIGHT |
1.0 lb (0.5 kg) |
| WATER RATING |
IPX7 |
| TRANSMIT POWER |
500 W (RMS) |
| Sonar Features & Specifications |
| DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE |
Yes |
| DUAL-BEAM (77/200 KHZ) SONAR CAPABLE |
Yes |
| FREQUENCIES SUPPORTED |
Traditional: 50/77/200 kHz
CHIRP (mid and high)
ClearVü 260/455/800 kHz |
| BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) |
Yes |
| WATER TEMPERATURE LOG AND GRAPH |
Yes |
| Fishfinder Features |
Yes |
| SPLIT-SCREEN ZOOM |
Yes |
| ULTRASCROLL® (DISPLAYS FISH TARGETS AT HIGHER BOAT SPEEDS) |
Yes |
| FISH SYMBOL ID (HELPS IDENTIFY FISH TARGETS) |
Yes |
| AUTOGAIN TECHNOLOGY (MINIMIZES CLUTTER, MAXIMIZES TARGETS) |
Yes |
| ADJUSTABLE DEPTH LINE (MEASURES DEPTH OF UNDERWATER OBJECTS) |
Yes |
| A-SCOPE (REAL TIME DISPLAY OF FISH PASSING THROUGH TRANSDUCER BEAM) |
Yes |
| WATER TEMPERATURE SENSOR INCLUDED |
Yes |
| Additional |
| One 4-pin transducer port |
Yes |
| Quickdraw Contours |
Yes |
| Integrated GPS |
Yes |
| Mark Waypoints |
Yes |
| Course over Ground (COG) |
Yes |
| Current draw @ 12V |
0.40A |
