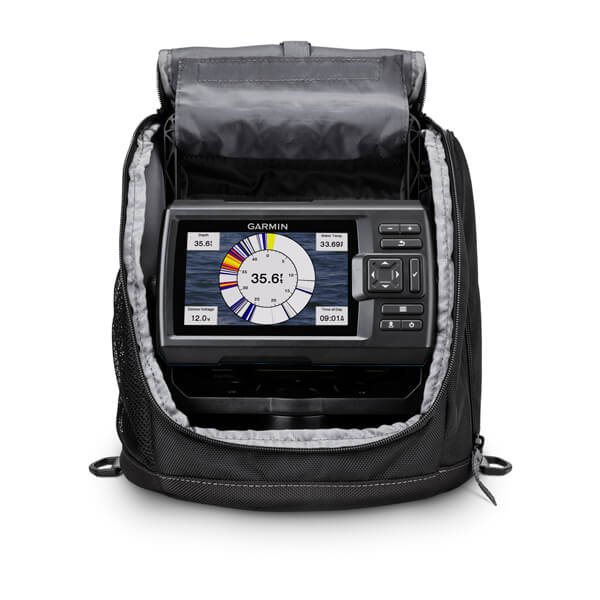

The Garmin STRIKER Vivid 5cv Ice Fishing Bundle is a compact, rugged fishfinder built for ice anglers who want fast, crystal-clear sonar at the hole and dependable under-ice visibility. Note: this bundle is a fishfinder, not a chart plotter.
-
Display: 5" WVGA color display with 800 x 480 pixels for bright, easy-to-read sonar views at the hole
-
Sonar technology: Garmin CHIRP traditional sonar with CHIRP mid/high and ClearVü 260/455/800 kHz; includes real-time A-Scope feedback, Fish Symbol ID, and AutoGain
-
Transducer: GT8HW-IF transducer with adjustable beam angles for exceptional target separation and sharp images below the ice
-
Under-ice visibility: See your jig or weighted bait, the depth of fish, and even watch your jig being lifted or dropped to judge fish movement
-
A-Scope: Real-time display of fish passing through the transducer beam
-
Split-screen Zoom: Yes for detailed views
-
ULTRASCROLL®: Yes, displays fish targets at higher boat speeds
-
Fish Symbol ID: Helps identify fish targets
-
Autogain technology: Minimizes clutter, maximizes targets
-
Adjustable depth line: Measures depth of underwater objects
-
GPS & mapping: High-sensitivity GPS; store up to 2 million acres of maps with 1' contours; create routes; view boat speed for year-round use
-
Quickdraw Contours: Mapping feature to customize and save fishing spots
-
Vivid Scanning Sonar color palettes: Available with accessory purchase
-
All-season versatility: Optional all-season kit adds the GT20-TM transducer for year-round use with high-contrast color palettes for improved visibility
-
Durability & portability: Rugged carrying case designed for easy transport between holes and seasons; IPX7 water rating
-
Included items: STRIKER Vivid 5cv fishfinder, GT8HW-IF transducer, Power/data cable, Tilt/swivel mount, Hardware, Garmin bumper sticker, Documentation, Bag with handle, Foam float, Lead-acid rechargeable battery, Battery charger
The STRIKER Vivid 5cv helps you optimize every hole with real-time jig depth, fish targets, and movement visible at the moment they occur, letting you decide when to jig, lift, or reposition. Its expansive mapping capability makes it easy to return to proven honey holes, while the optional all-season kit expands your setup for year-round use. Built to handle harsh conditions and easy to transport, this bundle delivers reliable performance with a clear display and fast data at the ice hole.
| PHYSICAL DIMENSIONS |
7.4’’ x 4.5’’ x 2.1’’ (18.8 x 11.6 x 5.4 cm) |
| DISPLAY RESOLUTION |
800 x 480 pixels |
| DISPLAY TYPE |
WVGA color |
| WEIGHT |
Unassembled kit with device: 8.5 lb (3.9 kg) |
| WATER RATING |
IPX7 |
| Sonar Features & Specifications |
| FREQUENCIES SUPPORTED |
Traditional: 50/77/200 kHz
CHIRP (mid and high)
ClearVü 260/455/800 kHz |
| Fishfinder Features |
| SPLIT-SCREEN ZOOM |
Yes |
| ULTRASCROLL® (DISPLAYS FISH TARGETS AT HIGHER BOAT SPEEDS) |
Yes |
| FISH SYMBOL ID (HELPS IDENTIFY FISH TARGETS) |
Yes |
| AUTOGAIN TECHNOLOGY (MINIMIZES CLUTTER, MAXIMIZES TARGETS) |
Yes |
| ADJUSTABLE DEPTH LINE (MEASURES DEPTH OF UNDERWATER OBJECTS) |
Yes |
| A-SCOPE (REAL TIME DISPLAY OF FISH PASSING THROUGH TRANSDUCER BEAM) |
Yes |
| Additional |
| Quickdraw Contours |
Yes |
| Vivid Scanning Sonar color palettes (requires accessory purchase): yes |
Yes |
| Bag size |
Small |
