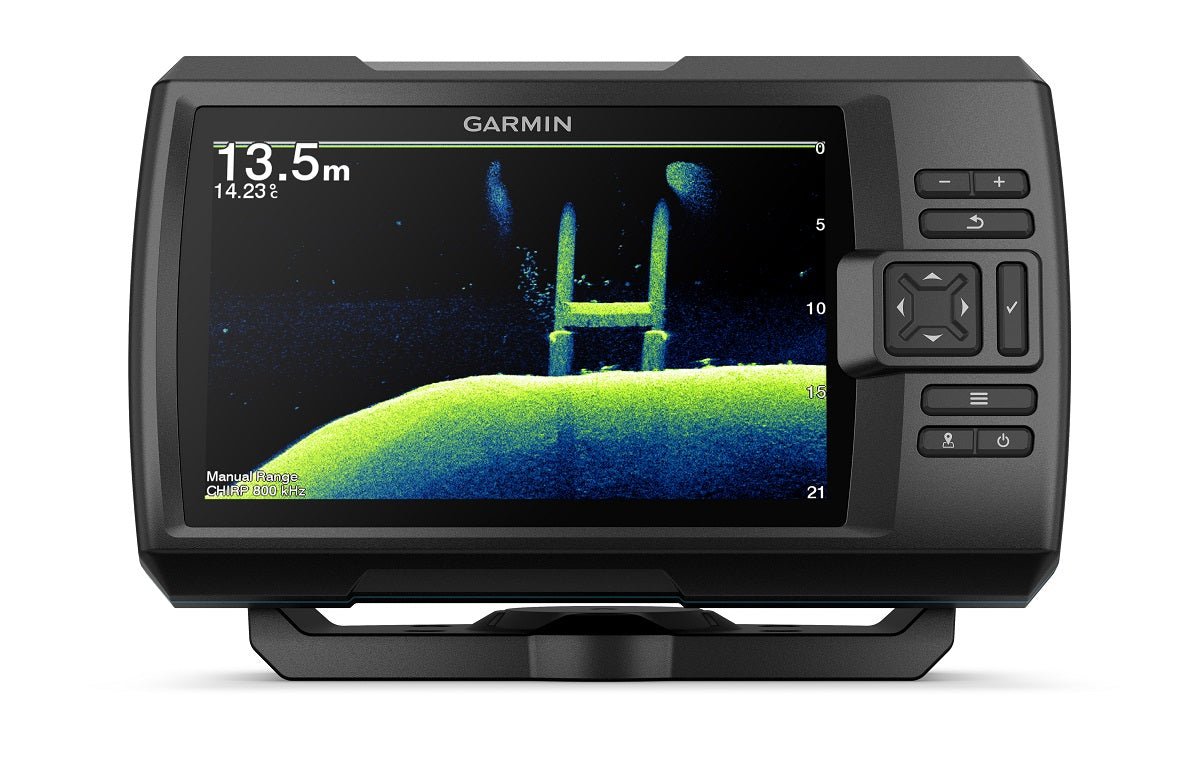

Meet the Garmin STRIKER Vivid 7cv with GT20 Transducer—a 7-inch fishfinder GPS plotter designed to help you see more, fish smarter, and fish longer on lakes and rivers.
-
Display: 7" WVGA color display (800 x 480) with 7 vivid color options to tailor viewing contrast for water conditions and fishing style
-
Sonar technology: CHIRP traditional sonar and CHIRP ClearVü scanning sonar delivered through the GT20 transducer for crisp target separation and detailed underwater views
-
Transducer: GT20 transducer included; one 4-pin transducer port for adding an additional transducer
-
GPS & mapping: High-sensitivity GPS for planning routes, tracking speed, and accurate positioning; store up to 2 million acres of mapping with 1' contour lines
-
Waypoint & navigation: Waypoint marking to save hot spots and navigate back with confidence
-
Connectivity & ecosystem: Wi‑Fi connectivity with ActiveCaptain compatibility for data transfer, updates, smart notifications, and access to Garmin Quickdraw Community
-
Mounting & bundle: Includes tilt/swivel mount plus transom and trolling motor mounting hardware and cable
-
Sonar specifics: Dual-frequency (50/200 kHz) and Dual-beam (77/200 kHz) with support for CHIRP mid/high and ClearVü 260/455/800 kHz; Bottom Lock, Autogain, A-Scope real-time sonar, and a water temperature sensor
-
Imaging & targeting: Ultrascroll and Fish Symbol ID to track targets at higher speeds and identify likely bites
-
Performance & durability: Transmit power 500 W RMS; IPX7 water rating
-
In the box: STRIKER Vivid 7cv fishfinder; GT20‑TM transducer; power/data cable; tilt/swivel mount; mounting hardware; Garmin bumper sticker; documentation
This combination of advanced sonar imaging and built‑in mapping helps you locate prime fishing spots, plan efficient routes, monitor boat speed, and follow contours with precision. The 1' contour detail turns unfamiliar waters into familiar, trusted terrain, while built‑in Wi‑Fi with ActiveCaptain and Quickdraw Community keeps your data, updates, and favorite spots at your fingertips.
| General |
| PHYSICAL DIMENSIONS |
9.3" x 5.5" x 2.3" (23.5 x 14.0 x 5.8 cm) |
| DISPLAY RESOLUTION |
800 x 480 pixels |
| DISPLAY TYPE |
WVGA color |
| WEIGHT |
1.7 lbs (0.8 kg) |
| WATER RATING |
IPX7 |
| TRANSMIT POWER |
500 W (RMS) |
| Sonar Features & Specifications |
| DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE |
Yes |
| DUAL-BEAM (77/200 KHZ) SONAR CAPABLE |
Yes |
| FREQUENCIES SUPPORTED |
Traditional: 50/77/200 kHz
CHIRP (mid and high)
ClearVü 260/455/800 kHz |
| BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) |
Yes |
| WATER TEMPERATURE LOG AND GRAPH |
Yes |
| Fishfinder Features |
| SPLIT-SCREEN ZOOM |
Yes |
| ULTRASCROLL® (DISPLAYS FISH TARGETS AT HIGHER BOAT SPEEDS) |
Yes |
| FISH SYMBOL ID (HELPS IDENTIFY FISH TARGETS) |
Yes |
| AUTOGAIN TECHNOLOGY (MINIMIZES CLUTTER, MAXIMIZES TARGETS) |
Yes |
| ADJUSTABLE DEPTH LINE (MEASURES DEPTH OF UNDERWATER OBJECTS) |
Yes |
| A-SCOPE (REAL TIME DISPLAY OF FISH PASSING THROUGH TRANSDUCER BEAM) |
Yes |
| WATER TEMPERATURE SENSOR INCLUDED |
Yes |
| Additional |
| One 4-pin transducer port |
Yes |
| Wireless Connectivity: Yes |
Yes |
| Quickdraw Contours |
Yes |
| Integrated GPS |
Yes |
| Mark Waypoints |
Yes |
| Course over Ground (COG) |
Yes |
| Current draw @ 12V |
0.55A |
