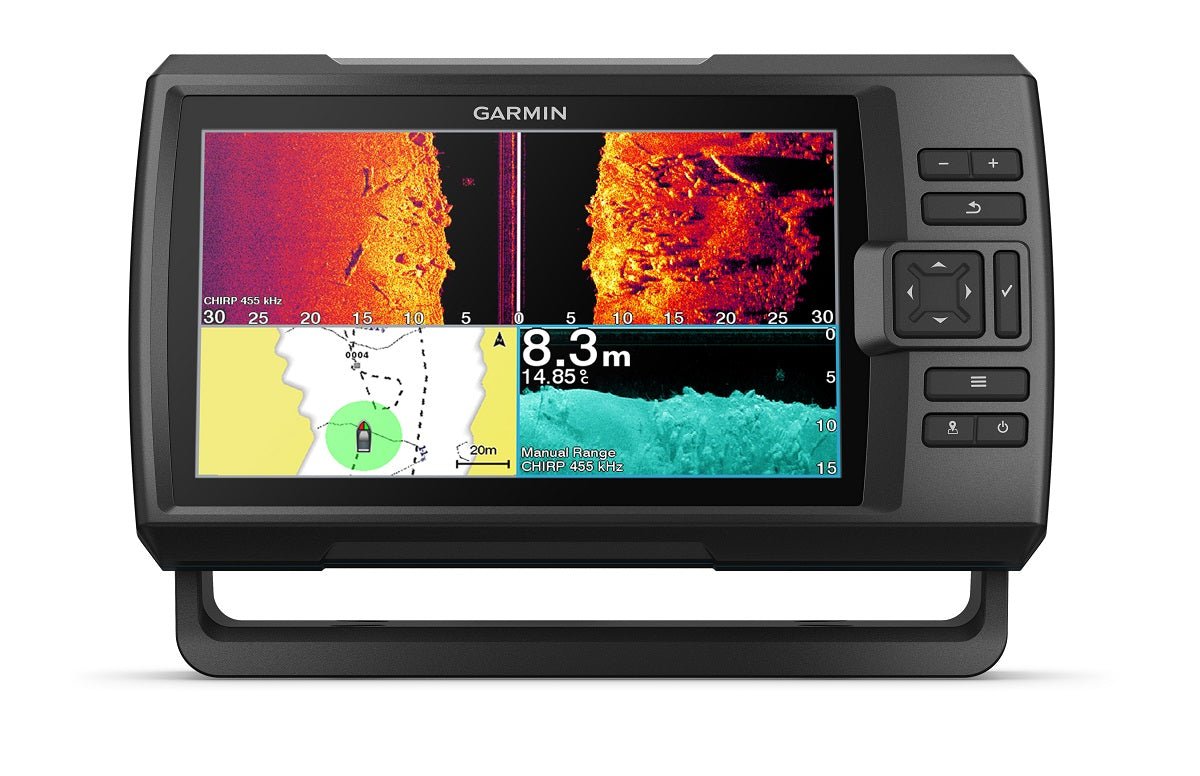

Meet the Garmin STRIKER Vivid 9sv with GT52 Transducer — a 9-inch fishfinder GPS track plotter that paints the underwater world in vivid color. Choose from 7 vivid color options to see fish and structure with maximum contrast and clarity on your display.
With the included GT52 transducer, you get Garmin CHIRP traditional sonar plus CHIRP ClearVü and CHIRP SideVü scanning sonar, so you can scan below, to the sides, and ahead of your boat with astonishing detail.
Crystal-clear sonar on a bright 9" display
The 9" WVGA color display delivers sharp targets and easy-to-read returns, even in bright sunlight. Built to endure the elements, this unit carries an IPX7 rating in a compact package (11.1" x 6.5" x 2.4", 2.4 lbs).
Navigate, mark hotspots, and map your day
Integrated high-sensitivity GPS lets you mark hot spots, plan routes, and view your boat’s speed. Store up to 2 million acres of maps with 1' contours and create your own maps with Garmin Quickdraw Contours. Use waypoint marking to easily return to productive spots.
Smart on-water features
-
Wi‑Fi connectivity expands on‑shore options and app integration
- Compatible with the ActiveCaptain app to transfer waypoints, receive smart notifications (including software updates), and access the Garmin Quickdraw Community
- Split-screen zoom, Ultrascroll, Fish Symbol ID, and AutoGain help you interpret sonar quickly
- Bottom Lock and A-Scope provide precise depth and real-time fish movement
What’s included and how it’s built
The STRIKER Vivid 9sv includes the GT52HW-TM transducer, power/data cable, 12-pin to dual 4-pin transducer adapter cable, tilt/swivel mount, mounting hardware, Garmin bumper sticker, and documentation. It supports enhanced expansion with one 4-pin transducer port and one 4-pin SideVü transducer port in addition to the GT52 transducer.
Specifications at a glance
- Display: 9" WVGA color, 800 x 480
- Power: 500 W RMS
- Dimensions: 11.1" x 6.5" x 2.4"
- Weight: 2.4 lbs
- Water rating: IPX7
- Transducers: GT52 transducer (CHIRP traditional, CHIRP ClearVü, CHIRP SideVü)
- Frequencies: Traditional 50/77/200 kHz; CHIRP 260/455/800 kHz for ClearVü/SideVü
- GPS: Integrated; Waypoints, Course over Ground (COG), speed
- Mapping: Up to 2 million acres of maps with 1' contours; Garmin Quickdraw Contours
Equip your boat with the STRIKER Vivid 9sv and experience a more productive day on the water—where every cast is guided by vivid color, precise sonar, and smart connectivity.
| General |
| PHYSICAL DIMENSIONS |
11.1" x 6.5" x 2.4" (28.2 x 16.5 x 6.0 cm) |
| DISPLAY RESOLUTION |
800 x 480 pixels |
| DISPLAY TYPE |
WVGA color |
| WEIGHT |
2.4 lbs (1.1 kg) |
| WATER RATING |
IPX7 |
| TRANSMIT POWER |
500 W (RMS) |
| Sonar Features & Specifications |
| DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE |
Yes |
| DUAL-BEAM (77/200 KHZ) SONAR CAPABLE |
Yes |
| FREQUENCIES SUPPORTED |
Traditional: 50/77/200 kHz
CHIRP (mid and high)
ClearVü and SideVü 260/455/800 kHz |
| BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) |
Yes |
| WATER TEMPERATURE LOG AND GRAPH |
Yes |
| Fishfinder Features |
| SPLIT-SCREEN ZOOM |
Yes |
| ULTRASCROLL® (DISPLAYS FISH TARGETS AT HIGHER BOAT SPEEDS) |
Yes |
| FISH SYMBOL ID (HELPS IDENTIFY FISH TARGETS) |
Yes |
| AUTOGAIN TECHNOLOGY (MINIMIZES CLUTTER, MAXIMIZES TARGETS) |
Yes |
| ADJUSTABLE DEPTH LINE (MEASURES DEPTH OF UNDERWATER OBJECTS) |
Yes |
| A-SCOPE (REAL TIME DISPLAY OF FISH PASSING THROUGH TRANSDUCER BEAM) |
Yes |
| WATER TEMPERATURE SENSOR INCLUDED |
Yes |
| Additional |
| One 4-pin transducer port |
Yes |
| One 4-pin SideVü transducer port |
Yes |
| Wireless Connectivity |
Yes |
| Quickdraw Contours |
Yes |
| Integrated GPS |
Yes |
| Mark Waypoints |
Yes |
| Course over Ground (COG) |
Yes |
| Current draw @ 12V |
0.75A |
