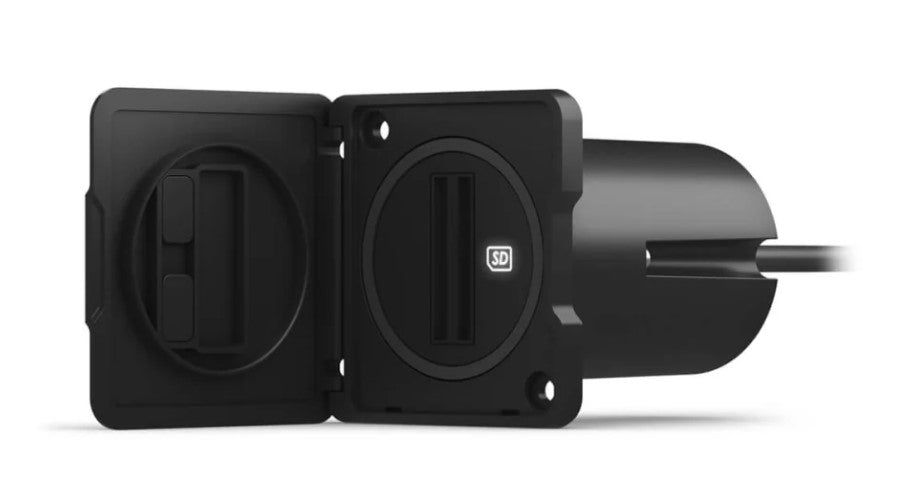

Introducing the Garmin USB Card Reader with USB-C Adapter (Model: 010-02251-10) — a compact, water-resistant SD card reader designed for the helm. It holds two full-size SD cards for quick access to charts, software updates, and ActiveCaptain data. With a 2" x 2" footprint, flush mounting, and a USB connection to the back of your chartplotter, this card reader slots neatly into a crowded dash or helm area.
Compact, flush-mounted design
- Holds two full-size SD cards for fast access to charts, updates, and ActiveCaptain data.
- 2" x 2" x 2.4" footprint (excluding the cable) with flush mounting for a clean, space-saving installation.
- USB connection to the back of your chartplotter to keep cockpit wiring tidy.
- Waterproof to IPX7 with fully gasketed, high-impact plastic construction for marine reliability.
- Includes USB-C adapter cable for modern devices.
Designed for marine reliability
Built to endure harsh conditions, the reader operates across a wide temperature range (-15°C to 70°C) and is sealed to prevent moisture ingress, ensuring dependable operation at the helm.
Technical specifications
- Dimensions (W x H x D): 2" x 2" x 2.4" (excluding the cable)
- Weight: 4.025 oz
- Temperature range: -15°C to 70°C
- Material: fully gasketed, high-impact plastic, IPX7 waterproof
- Input power: 4.75V–5.25V
- Maximum power usage at 10 Vdc: 2.5 W
- Typical current draw at 12 Vdc: 100 mA
- Maximum current draw at 12 Vdc: 500 mA
- Compass-safe distance: 21" (533 mm)
What's in the box
- Garmin USB card reader
- Mounting hardware
- Power cable
- Documentation
- USB-C adapter cable
| Dimensions |
(W H D): 2" x 2" x 2.4" (excluding the cable) |
| Weight |
4.025 oz |
| Temperature range |
-15C to 70C |
| Material |
fully gasketed, high-impact plastic, waterproof to IPX7 standards |
| Input power |
4.75V — 5.25V |
| Maximum power usage at 10 Vdc |
2.5 W |
| Typical current draw at 12 Vdc |
100 mA |
| Maximum current draw at 12 Vdc |
500mA |
| Compass-safe distance |
21" (533 mm) |
