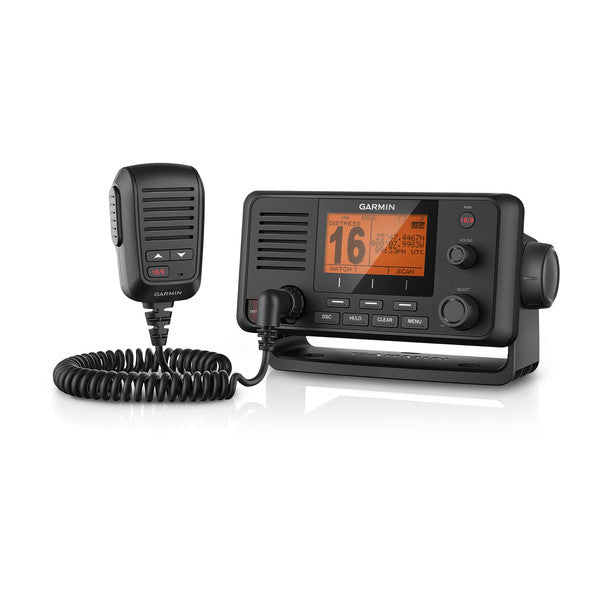

Garmin VHF215 AIS Marine Radio is a fixed-mount VHF radio that brings AIS data to your Garmin chartplotter, enhancing situational awareness, safety, and efficiency on every voyage.
-
AIS data integration with Garmin chartplotter: Display AIS information directly on your Garmin chartplotter to improve awareness and collision avoidance with mariners worldwide.
-
25-Watt transmit power with built-in GPS: Provides reliable range for distress calls and routine communications, with GPS support for accurate location data.
-
DSC Class D: Standard distress calling and direct calling with user-programmed MMSI for rapid, organized safety communications.
-
Broad channel coverage: Includes all USA, Canadian, and international marine channels plus 10 NOAA weather channels for up-to-date forecasts and alerts.
-
NMEA 2000 compatibility: Easy plug-and-play integration with compatible Garmin chartplotters and MFDs, keeping your system simple and reliable.
-
NMEA 0183 compatibility: Ensures seamless data exchange with a wide range of navigation gear.
-
Two-way hailer system: Onboard communication made easy for crew and passengers alike, with 20 W hailer output.
-
Premium helm design: Built to complement GPSMAP 7x2/9x2, GPMAP 10x2/12x2, GPSMAP 7400/7600, and GPSMAP 8400/8600 displays with a clean, integrated look.
-
Rugged, water-resistant build: IPX7-rated housing ensures durability in harsh marine conditions.
-
Operating environment: Wide temperature range (-15°C to 70°C) with storage down to -20°C, plus a compass-safe distance of 29.5" (75 cm).
-
Antenna and power specs: S0-239 (50 Ω) antenna connector with up to 9 dBi gain; operates at 12.0 Vdc; standby 350 mA; receive 600 mA; transmit 2.0–6.0 A (depending on power settings).
-
Frequency range: 156.050 MHz to 163.275 MHz (including WX channels).
-
Hailer and speaker details: Hailer output 20 W at 4 Ω; compatible with 4 Ω external speakers.
-
What’s in the box: VHF 215 AIS marine radio, removable fist microphone, fist mic mounting hardware, bail mount with knobs and mounting hardware, protective cover, trim ring snap cover, flush mount gasket, power cable, documentation.
-
Unit dimensions and weight: Unit 3.9" x 7.8" x 5.8" (9.8 x 19.7 x 14.9 cm); radio 42.8 oz (1.2 kg); microphone 8.8 oz (0.25 kg).
With AIS data visible on your Garmin displays, DSC safety features at your fingertips, and a durable marine-grade build, the Garmin VHF215 AIS Marine Radio helps you stay informed, connected, and confident on every voyage—from coastal cruises to offshore passages.
| Unit Dimensions |
HxWxD: 3.9" x 7.8" x 5.8" (9.8 x 19.7 x 14.9 cm) |
| Weight |
Radio without microphone 42.8 oz. (1.2 kg); Microphone 8.8 oz. (0.25 kg) |
| Water rating |
IPX7 |
| Temperature Range |
Operating (from -15 C to 70 C; from 5 F to 158 F); Storage (from -20 C to 70 C; from -4 F to 158 F); |
| Compass-safe Distance |
29.5" (75 cm) |
| NMEA 2000 |
Yes |
| NMEA 0183 |
Yes |
| Digital Selective Calling |
Class D |
| Frequency Bands |
All USA, Canadian, and international marine channels; 10 NOAA weather channels |
| Operating Voltage |
12.0 Vdc |
| Current Draw |
Standby 350 mA; Receive 600 mA; Transmit from 2.0 A to 6.0 A (from 1 W to 25 W) |
| Frequency Range |
156.050 MHz to 163.275 MHz (including WX channels) |
| Hailer Output Power |
20 W at 4 Ω |
| Hailer horn impedance |
4 Ω |
| External speaker impedance |
4 Ω |
| Antenna connector |
S0-239 (50 Ω) |
| Maximum antenna gain |
9 dBi |
