The Garmin VHF315 VHF Radio is a reliable 25-watt VHF Class D DSC marine radio designed to keep your crew connected, safe, and in command on the water. Built for performance and ease of use, it integrates seamlessly with your Garmin onboard system while delivering professional-grade communication from bow to stern.
With a built-in GPS receiver (external antenna required) you gain precise location data for DSC calls and navigation support, making it simple to pair with compatible chartplotters and multifunction displays through NMEA 2000 connectivity.
Preprogrammed with US, Canadian and international marine channels plus 10 NOAA weather channels, the VHF315 keeps you plugged into the right frequencies and weather alerts for every voyage. It’s designed to deliver reliable, clear communication even in demanding conditions.
For flexible on-water communication, the system includes a GHS 11 handset and a new active speaker to use as an intercom between up to 3 stations. In addition, a two-way 30-watt hailer enables direct communication with other boats or deckhands, enhancing safety and coordination on deck.
The VHF315 also emphasizes simple setup and ongoing integration. NMEA 2000 connectivity enables easy integration with compatible chartplotters and multifunction displays, while simplified handset connectors and an intuitive interface get you up and running quickly so you can get back to sea sooner.
Key specifications
-
Powerful transmitter high 23–25 W; low 0.7–1 W
-
Type VHF, Class D DSC, marine radio
-
GPS Built-in receiver with external antenna connector
-
Channel coverage All USA, Canadian and international marine channels; 10 NOAA weather channels
-
Intercom GHS 11 handset and active speaker for up to 3 stations
-
Hailer 2-way 30-watt system for on-deck communication
-
NMEA 2000 LEN 1 for easy integration with chartplotters and MFDs
-
Water rating IPX7
-
Operating temperature -13°F to 131°F (-25°C to 55°C)
-
Dimensions 8.1" x 7.1" x 2.4" (20.5 x 18.1 x 6.0 cm)
-
Weight 3.4 lbs (1.53 kg)
What's in the box

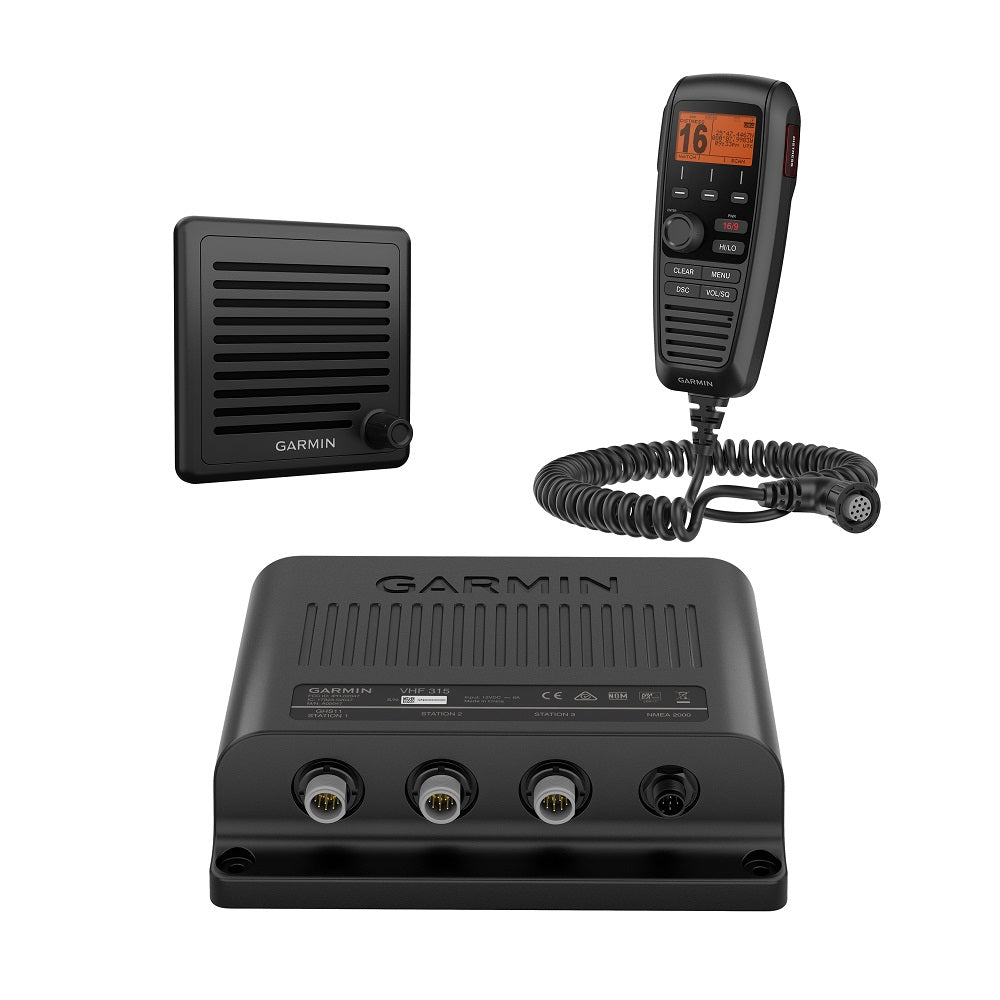

- VHF315 marine radio
- GHS 11 cradle (for GHS 11)
- Active speaker
- Power cable
- Deck cable (10 meters)
- Microphone hanger
- Mounting hardware
- Documentation
| Weight |
3.4 lbs. (1.53 kg) |
| Operating Temperature Range |
-13°F to 131°F (-25°C to 55°C) |
| Water rating |
IPX7 |
| Compass-safe Distance |
2" (5 cm) |
| Digital Selective Calling |
Class D |
| Frequency Bands |
All USA, Canadian, and international marine channels; 10 NOAA weather channels |
| Transmitter Power (at 13.6 Vdc): High Power: 23-25 W; Low Power |
0.7-1 W |
| NMEA 2000 LEN |
1 |
| Input Voltage |
9.6 - 16 Vdc |
| Input Draw |
350 mA; Receive: 600 mA; Transmit High Power: 6 A max; Transmit Low Power: 2 A max |
| Dimensions |
8.1" x 7.1" x 2.4" (20.5 x 18.1 x 6.0 cm) |
