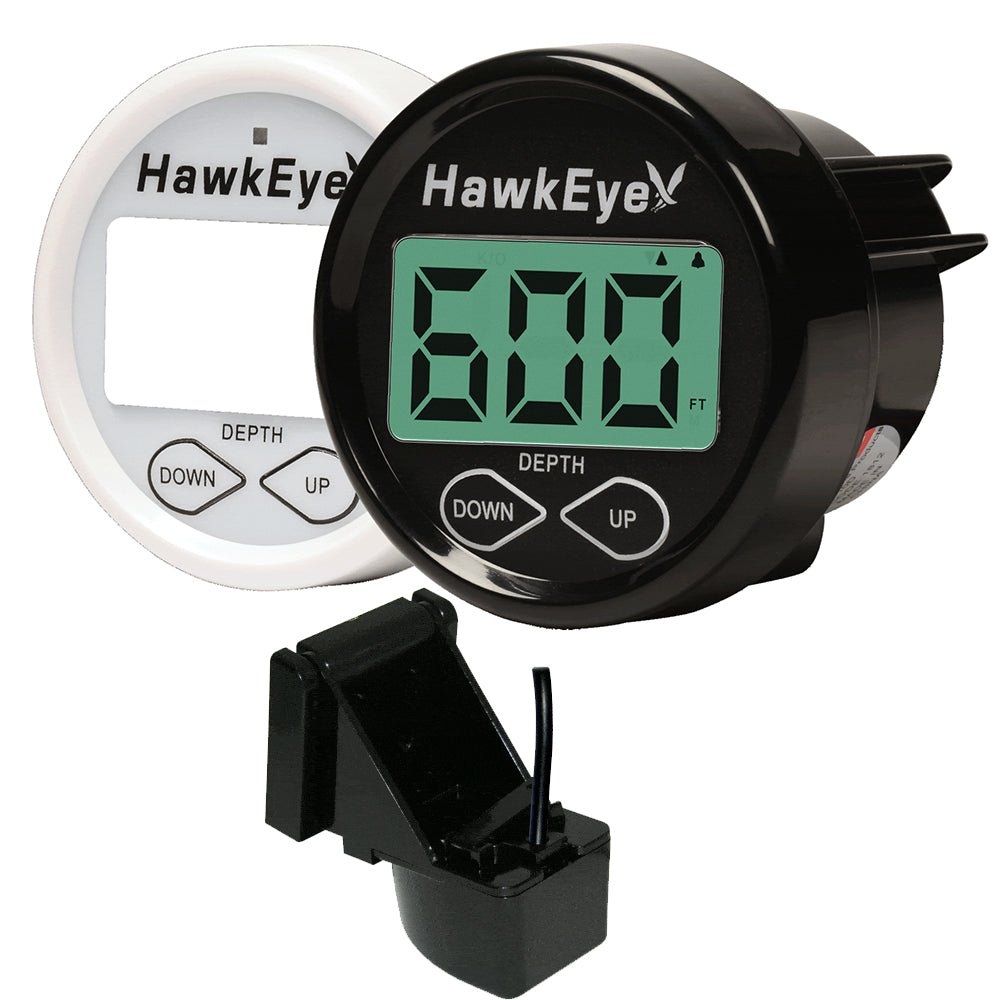

Meet the HawkEye DepthTrax In-Dash Digital Depth Gauge - Transom Mount, a high-performance depth finder built for speed, precision, and reliability on every voyage. Engineered to dive deeper and read faster, the DepthTrax delivers 600 ft depth capability with advanced sonar that keeps readings accurate even at high speeds.
-
Advanced sonar with algorithmic programming dramatically reduces false readings while delivering unmatched depth precision down to 600 ft.
-
EasyTouch programming gives you one-touch access to all user settings for quick, effortless adjustments on the water.
-
User-programmable keel offset automatically adjusts depth readings to match your vessel’s draft, ensuring reliable measurements wherever you go.
-
Imperial or Metric readout to suit your preference and regional standards.
-
Dual upper and lower depth alarms provide flexible alerting across the full depth range, so you never miss a warning.
-
3-Stage Advanced Warning System™ signals alarm conditions with audible alerts, LED indicators, and LCD status, with one-touch alarm muting for calm waters or noisy environments.
-
Air & water temperature display in °F or °C keeps you informed of environmental conditions at a glance.
-
Automatic memory retention stores all user settings even after power cycles—no reprogramming needed.
-
Removable face system includes White & Black faceplates and trim rings for quick customization to your setup.
-
No glare, polarized LCD icon display with a storage sun cover ensures clear visibility in bright conditions and protects the display when not in use.
-
SoftGlow™ backlit display and programming keys provide low-light readability and reduce eye strain, especially during night fishing or dawn programs.
Technical specifications
- Gauge Dimensions (Diameter x Depth): 2" x 1.75" (51 x 45mm)
- Screen Dimensions (Height x Width): 1.65" x.87" (42 x 22mm)
- Gauge Cut-out Size: 2"
- Operating Temperature: 0 to 160°F (-18 to 71°C)
- Depth Range: 2.5' to 600' (.7 to 180 m)
- Transducer Type: Transom Mount
- Transducer Frequency: 200 kHz
- Transducer Beam Angle: 14°
- Transducer Cable Length: 30' (9 m)
- Power Requirement: 12 - 14 VDC
In the box
- Gauge Bezel/Faceplate - Black and White
- Display cover
- Mounting hardware
- Transducer - transom mount w/30' cable
- Instruction manual
