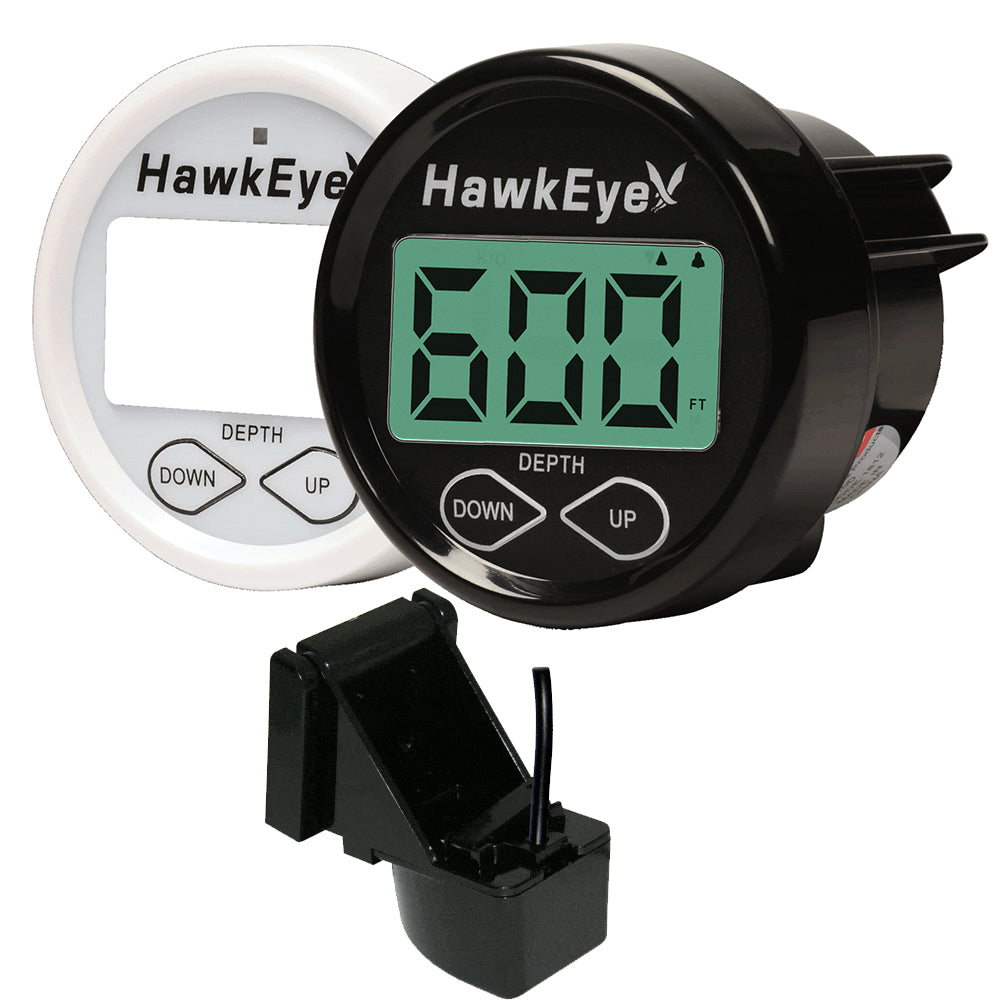

Introducing the Hawkeye DepthTrax 2BX In-Dash Digital Depth & Temp Gauge with Transom Mount — the ultimate blend of precision, reliability, and value for anglers and coastal cruisers. This advanced depth finder not only shows water depth with pinpoint accuracy, but also delivers real-time air and water temperature, all through a sleek, in-dash display designed for easy visibility and effortless control.
Why DepthTrax 2BX Stands Out
-
Dual temperature displays deliver instant water and air temperature readings via integrated sensors in both the head unit and the transducer.
-
AIRMAR transom mount transducer provides ultra-sensitive, high-performance sonar with a 200 kHz frequency and a narrow 14° beam for crisp bottom detail.
-
Algorithmic programming minimizes false readings and delivers unmatched depth accuracy in a wide range of fishing and cruising conditions.
-
EasyTouch programming offers one-touch access to user settings for quick customization on the fly.
-
Keel offset auto-adjustment automatically calibrates depth readings to match your vessel’s draft, ensuring accurate measurements every time.
-
Imperial or Metric readouts let you choose your preferred measurement system with a simple toggle.
-
Dual depth alarms (upper and lower) provide proactive alerts throughout the full depth range, helping you avoid shallow or deep waters.
-
3-Stage Advanced Warning System combines audible alarms, LED indicators, and LCD alerts with one-touch muting for clear, immediate notifications.
-
Water & air temperature in °F or °C shown at a glance for quick environmental awareness.
-
Automatic memory retention preserves all user settings, so you never lose your preferred configuration after power cycles.
-
Removable face system includes White & Black faceplates and trim rings for a personalized, glare-free look in any cockpit or cabin.
-
No glare, polarized LCD with a storage sun cover and SoftGlow backlighting keeps the display legible and easy on the eyes, even at night or in bright sun.
Technical Specifications
- Gauge Dimensions (Diameter x Depth): 2" x 1.75" (51 x 45 mm)
- Screen Dimensions (Height x Width): 1.65" x.87" (42 x 22 mm)
- Gauge Cut-out Size: 2"
- Operating Temperature: 0 to 160° F (-18 to 71°C)
- Depth Range: 2.5' to 600' (.7 to 180 m)
- Transducer Type: Transom Mount
- Transducer Frequency: 200 kHz
- Transducer Beam Angle: 14°
- Transducer Cable Length: 30' (9 m)
- Power Requirement: 12 - 14 VDC
In the Box
- Gauge Bezel/Faceplate — Black and White
- Display cover
- Mounting hardware
- Transducer — transom mount with 30' cable
- Instruction manual
Elevate your boating instrumentation with the Hawkeye DepthTrax 2BX — a capable, budget-friendly depth and temperature solution that blends precise sonar, reliable alarms, and smart features into one compact in-dash package.
