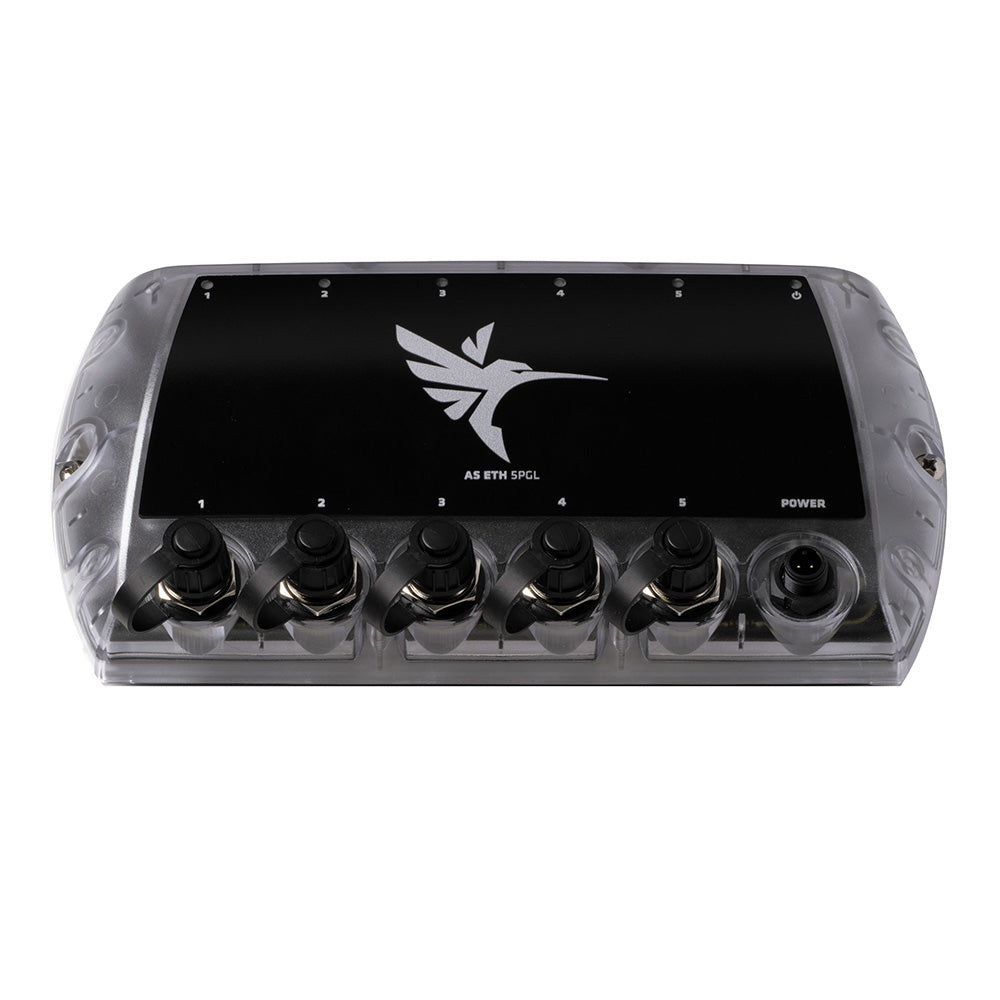

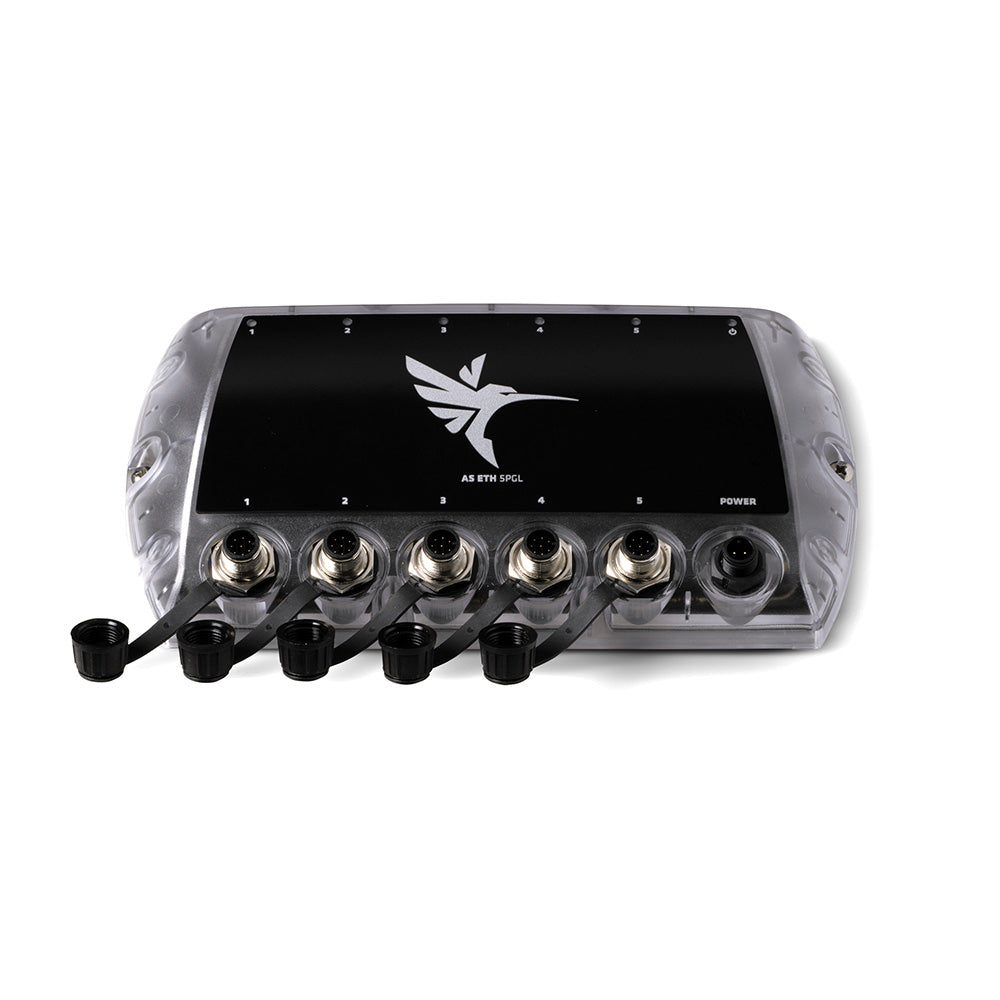

The Humminbird AS-ETH-5PGL is a rugged 5-port Ethernet switch designed for marine networks, letting you share sonar, radar, and system data across multiple Humminbird displays and Ethernet-enabled devices. It’s ideal for boaters building a compact helm setup or a larger, multi-display network.
-
Ports: Connect up to five devices—including Humminbird fish finders and Ethernet-enabled accessories—to share sonar, radar, and system data across your network.
-
Scalability: Expand capacity by linking additional switches for a total of up to 20 devices (sold separately).
-
Compatibility: Broad compatibility with APEX, SOLIX, HELIX G4N, and HELIX G3N models for a versatile marine backbone.
-
Status indicators: Amber power light; Amber and Green connection lights show status—Solid means connected, Flashing means data transfer in progress, No Light means no connection.
-
Connection mapping: Amber connection light covers HELIX G4N and G3N, AS ETH NMEA2K, Minn Kota trolling motors, and radar; Green connection light covers APEX, SOLIX, MEGA Live, TargetLock, AS ETH 5PXG, and AS ETH 5PGL.
-
Expansion notes: Requires additional Ethernet cables to connect devices; AS EC QDE connectors are needed to connect compatible HELIX models to the switch.
-

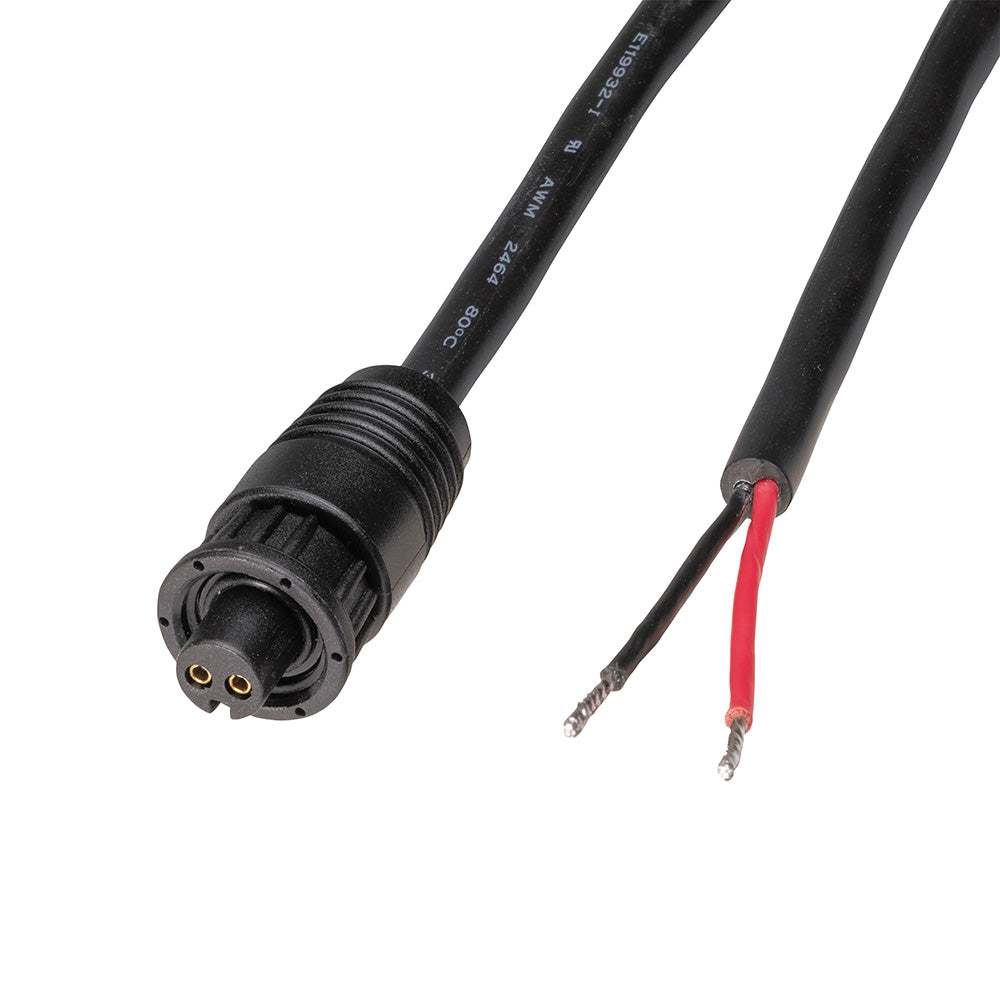

Included: Ethernet switch, power cable, mounting hardware.
-
Warranty: 1-year limited warranty from Humminbird.
Whether you’re building a compact helm setup or a larger network across multiple displays, the AS-ETH-5PGL delivers dependable data sharing and streamlined integration. Upgrade your boat’s network to enjoy faster access to critical sonar, radar, and system information across all Humminbird devices.
