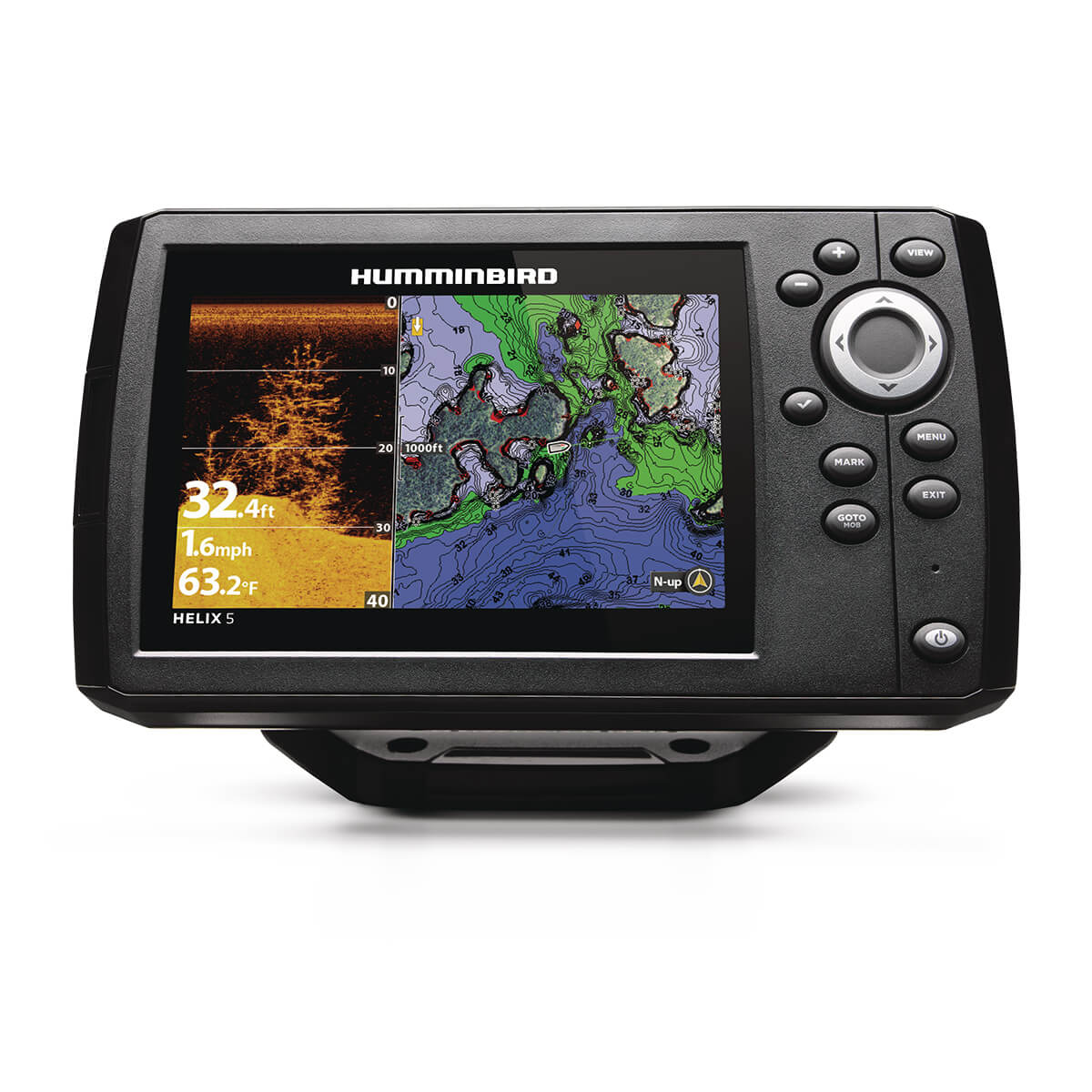

Meet the Humminbird HELIX 5 CHIRP DI GPS G3 — a compact, feature-rich fish finder designed for anglers who demand clarity, mapping, and real-time insight beneath the boat.
-
Display: 5" WVGA color display with 800H x 480V resolution for crisp charts and sonar images
-
Sonar technology: Dual Spectrum CHIRP 2D sonar plus CHIRP Down Imaging for detailed arches and a clutter-free view of underwater structure
-
Sonar coverage: Wide and Narrow search modes via Low-Q CHIRP transducer for flexible visibility
-
CHIRP frequencies: 83/200 (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)
-
Depth capability: Depth up to 1,200 ft with standard transducer; up to 3,000 ft with optional 50 kHz transducer
-
Imaging frequencies: 455 kHz imaging (420-520 kHz) for detailed underwater views
-
GPS & mapping: Built-in Basemap with AutoChart Live for real-time mapping; Premium chart compatibility with LakeMaster and CoastMaster, plus Navionics compatibility
-
Memory & storage: 8 hours of built-in recording; Single Micro SD card slot; AutoChart Zero Line SD card compatibility
-
Control & mounting: Easy keypad control; Gimbal mounting for flexible installation
-
Power & performance: 615 mA power draw; 10.8-20 VDC input; peak-to-peak power 4,000 Watts; RMS power 500 Watts
-
Additional compatibility: AIS, AutoPilot, Minn Kota US2 Sonar
-
Warranty: 1-year limited warranty
With the HELIX 5 CHIRP DI GPS G3, you gain precise sonar detail, dynamic mapping, and dependable navigation in a compact package. Real-time AutoChart Live lets you map depth contours, bottom hardness, and vegetation as you move, while built-in Basemap and premium chart compatibility expand your horizons across lakes and coastlines. The combination of Dual Spectrum CHIRP 2D and Down Imaging reveals fish-holding structure with clarity, so you can identify hotspots and plan your approach with greater confidence. A single Micro SD slot keeps your data organized, and the rugged keypad ensures quick access to settings and views in variable conditions. This unit’s power efficiency and broad accessory compatibility make it a versatile addition to serious freshwater or coastal setups alike.
| Display Size - Diagonal |
5" |
| Display Pixel Matrix |
800H x 480V |
| Sonar-Standard |
Dual Spectrum CHIRP, CHIRP Down Imaging |
| Sonar-Coverage |
20°, 42° & 60° @ -10dB |
| Sonar-Optional |
50 kHz, 50/Low Airmar CHIRP |
| CHIRP - Frequencies Supported |
83/200 (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz) |
| Sonar-Frequencies Supported |
50/83/200/455 kHz |
| Depth-Sonar |
1,200 ft (standard transducer), 3,000 ft (optional 50 kHz) |
| CHIRP - Imaging-Frequencies Supported |
455 kHz (420-520 kHz) |
| Depth-Down Imaging |
350 ft |
| Interface |
Keypad Control |
| Features |
Built In GPS, Built In Mapping, Dual Spectrum CHIRP, Down Imaging |
| Memory Card Slot |
Single Micro SD |
| Compatible With |
AIS, AutoPilot, Minn Kota US2 Sonar |
| Power Draw |
615 mA |
| Power Input |
10.8-20 VDC |
| Power Output Peak-to-Peak |
4000 Watts |
| Power Output RMS |
500 Watts |
| Screen Snap Shot |
Yes |
| Sonar Recording |
Yes |
| Mount-Standard |
Gimbal |
| Mount-Standard Size |
7.55" W x 4.64" H x 3.3" D |
| Transducer Mount Location |
Transom |
| GPS Chartplotting |
Yes |
| GPS Trackplotting |
Yes |
| LakeMaster Compatibility |
Yes |
| Coast Master Compatibility |
Yes |
| Navionics Gold/HotMaps Compatibility |
Yes |
| Navionics Platinum + Compatibility |
Yes |
| Platinum Compatibility |
Yes |
| Heading Sensor GPS Compatibility |
No |
| Upgradable Software |
Yes |
| View Preset Keys |
No |
| X-Press Menu System |
Yes |
| Custom Digital Readout |
Yes |
| Custom View Selections |
No |
| Display Colors Grayscale |
16-Bit |
| Display Size |
5" |
| Speed |
GPS Provided |
| Temperature |
Built In |
| Temperature Alarm |
Yes |
| Temperature Graph |
Yes |
| Transducer Included |
XNT 9 HW DI T |
| HDMI Compatible |
No |
| MEGA Live Compatibility |
No |
