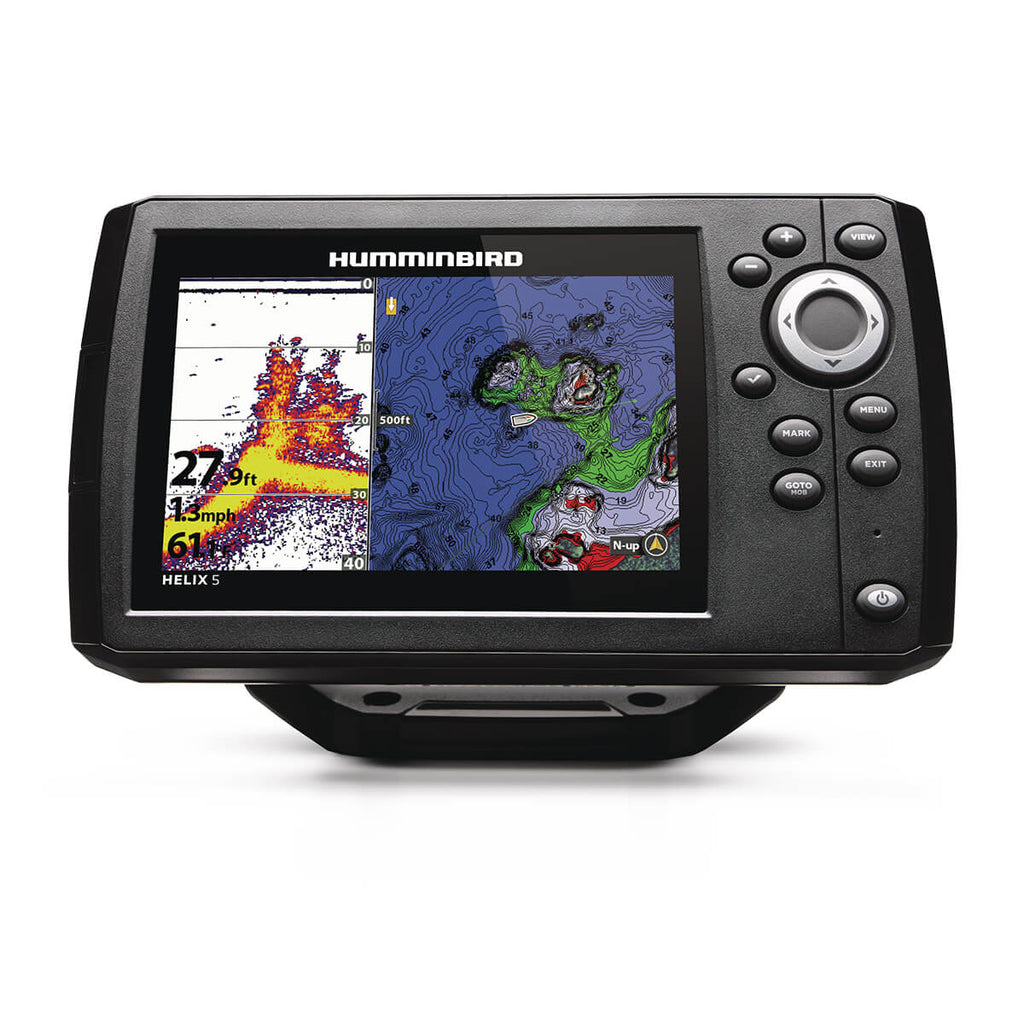

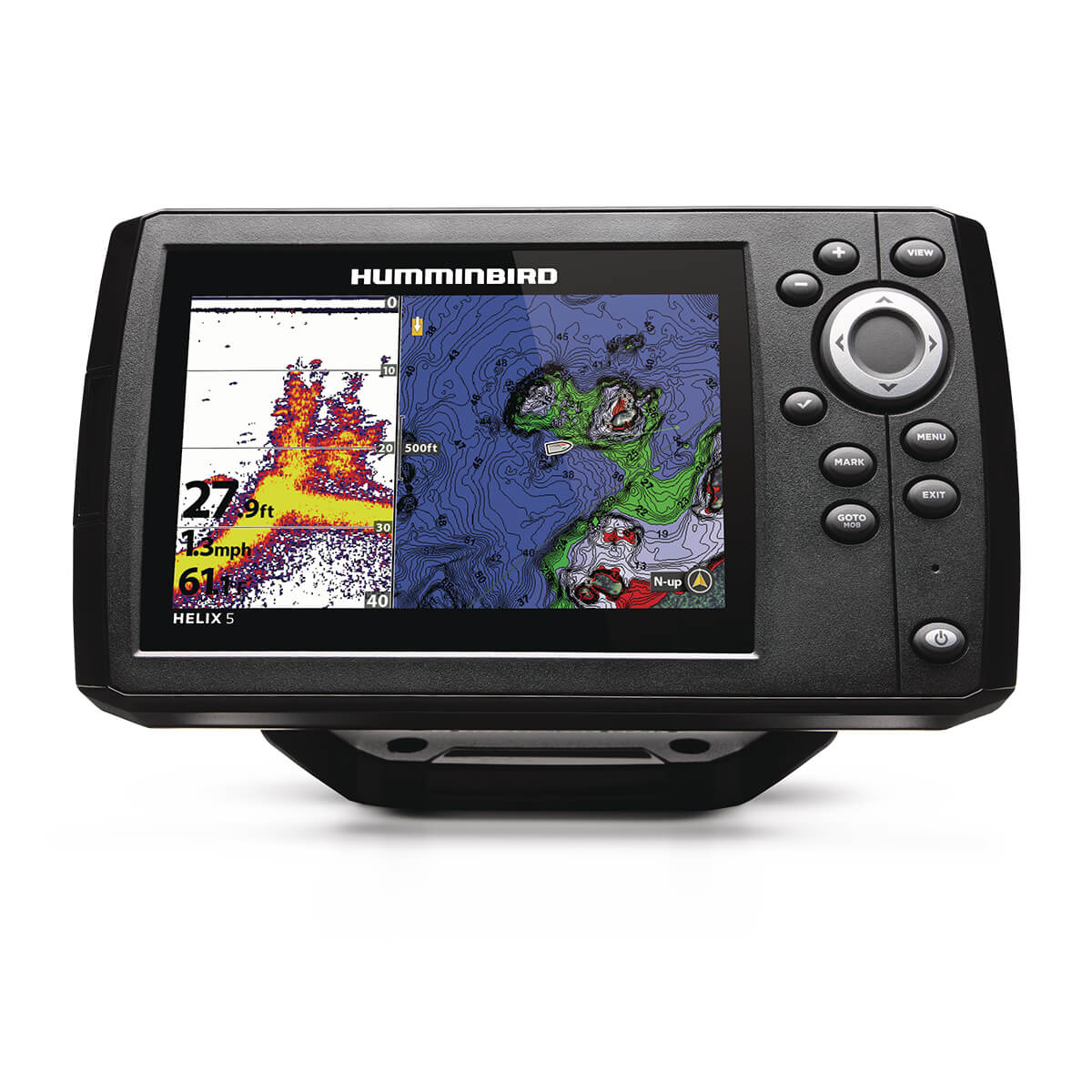

Experience precision on the water with the Humminbird HELIX5 CHIRP GPS G3, a compact 5" WVGA fish finder that blends advanced sonar, built-in navigation, and in-depth mapping for confident angling in any conditions. This compact powerhouse delivers big features that guide you to productive structure and fish with ease.
-
Dual Spectrum CHIRP 2D sonar reveals clear fish arches and structure, helping you identify targets before you cast. Choose Wide Mode for maximum coverage or Narrow Mode for pinpoint detail.
-
Low-Q CHIRP transducer powers two viewing options and provides crisp targets with reliable performance in varied conditions. Coverage angles include 20°, 42°, and 60° @ -10dB.
-
Internal GPS with Humminbird Basemap gives you a detailed view of underwater terrain and points of interest, from buoys and hazards to marinas and depth markers, with chart coverage for over 10,000 lakes and coastal US.
-
Premium chart compatibility supports LakeMaster and CoastMaster, plus compatible Navionics charts, so you can tailor your maps to your favorite waters and fishing style.
-
AutoChart Live enables real-time mapping of your fishing spots—depth contours, bottom hardness, and vegetation—driven by eight hours of built-in recording and expandable with AutoChart Zero Line SD cards for virtually endless mapping.
-
Display and performance — a bright 5" diagonal color display (800x480) pairs with a robust 4000W peak-to-peak power and 500W RMS for crisp sonar returns and easy viewing in sun and shade.
-
Depth and frequency flexibility — standard depth capability to 1,200 ft with the transducer and up to 3,000 ft with the optional 50 kHz transducer; CHIRP frequencies span 83/200 kHz, plus extended ranges for Full, Narrow, and Wide modes (150-220 kHz, 180-240 kHz, 140-200 kHz respectively).
-
Connectivity and expandability — built-in GPS/chart plotting, track plotting, memory card slot (micro SD), and compatibility with AIS, AutoPilot, and Minn Kota US2 for a feature-rich, flexible boat-wide navigation system.
-
Rugged mounting and ease of use — comes with standard gimbal mount and keypad-controlled operation for reliable performance in rough conditions, letting you stay focused on the fish.
Whether you’re scouting structure, mapping uncharted spots, or navigating unfamiliar waters, the HELIX5 CHIRP GPS G3 is tuned to help you fish smarter. Elevate your angling with a compact, feature-packed solution designed for serious results.
| Display Size - Diagonal |
5" |
| Display Pixel Matrix |
800H x 480V |
| Sonar-Standard |
Dual Spectrum CHIRP |
| Sonar-Coverage |
20°, 42° & 60° @ -10dB |
| Sonar-Optional |
50 kHz, 50/Low Airmar CHIRP |
| CHIRP - Frequencies Supported |
83/200 (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz) |
| Sonar-Frequencies Supported |
50/80/200 kHz |
| Depth-Sonar |
1,200 ft (standard transducer), 3,000 ft (optional 50 kHz) |
| Interface |
Keypad Control |
| Features |
Built In GPS, Built In Mapping, Dual Spectrum CHIRP |
| Memory Card Slot |
Single Micro SD |
| Compatible With |
AIS, AutoPilot, Minn Kota US2 Sonar |
| Power Draw |
615 mA |
| Power Input |
10.8-20 VDC |
| Power Output Peak-to-Peak |
4000 Watts |
| Power Output RMS |
500 Watts |
| Screen Snap Shot |
Yes |
| Sonar Recording |
Yes |
| Mount-Standard |
Gimbal |
| Mount-Standard Size |
7.55" W x 4.64" H x 3.3" D |
| Transducer Mount Location |
Transom |
| GPS Chartplotting |
Yes |
| GPS Trackplotting |
Yes |
| LakeMaster Compatibility |
Yes |
| Coast Master Compatibility |
Yes |
| Navionics Gold/HotMaps Compatibility |
Yes |
| Navionics Platinum + Compatibility |
Yes |
| Platinum Compatibility |
Yes |
| Heading Sensor GPS Compatibility |
No |
| Upgradable Software |
Yes |
| View Preset Keys |
No |
| X-Press Menu System |
Yes |
| Custom Digital Readout |
Yes |
| Custom View Selections |
No |
| Display Colors Grayscale |
16-Bit |
| Speed |
GPS Provided |
| Temperature |
Built In |
| Temperature Alarm |
Yes |
| Temperature Graph |
Yes |
| HDMI Compatible |
No |
| MEGA Live Compatibility |
No |
