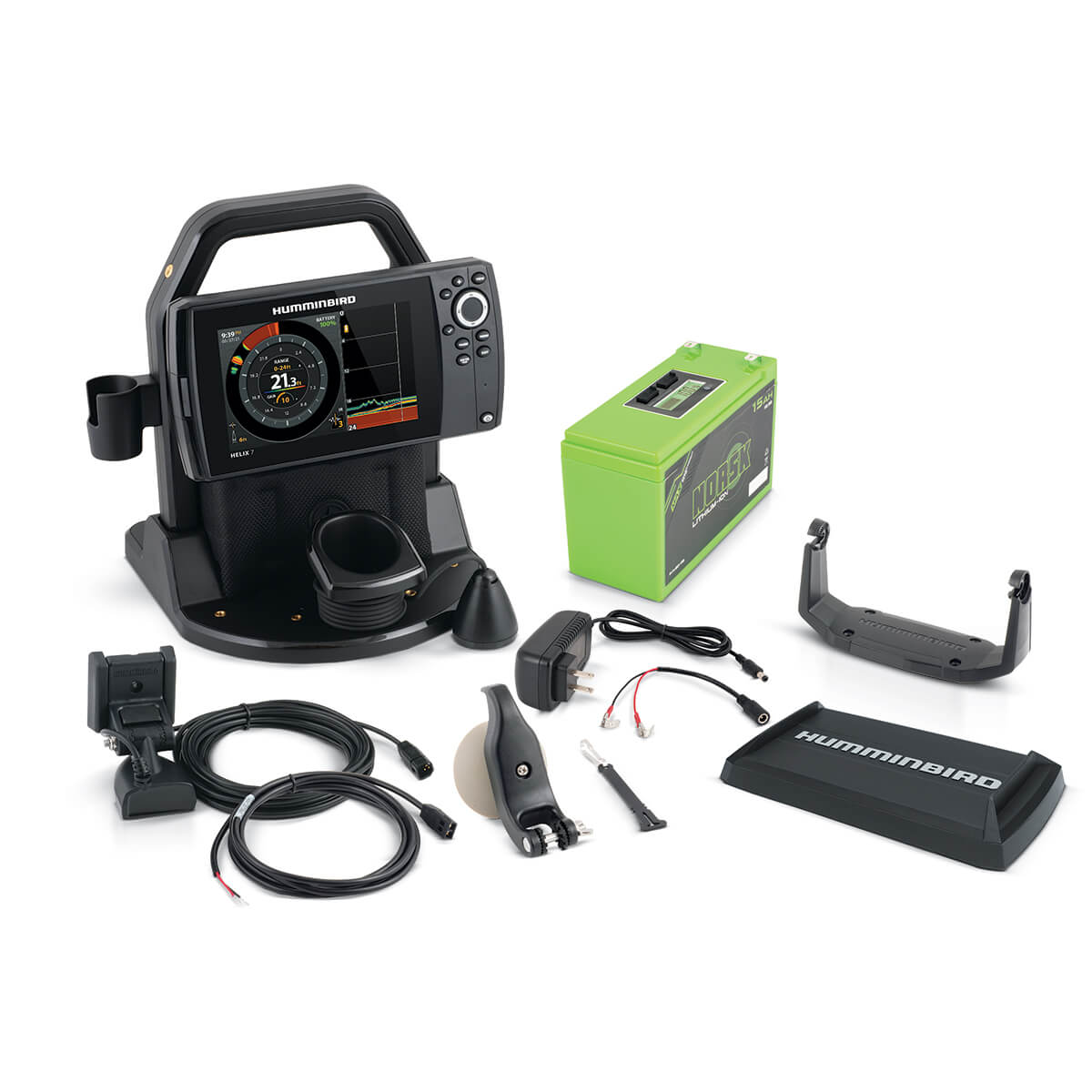

Conquer ice and open-water seasons with the Humminbird Helix 7 G4 ICE CHIRP GPS All Season Kit. This feature-packed fish finder delivers crystal-clear sonar, built-in navigation, and real-time mapping that help you find fish faster and navigate with confidence, rain or shine.
-
Dual Spectrum CHIRP Sonar provides high-resolution returns for individual fish, bait, and structure on both flasher and traditional 2D views, with target separation down to 3/4".
-
CHIRP Interference Rejection uses six settings to keep competing sonar signals from cluttering your screen, ensuring a clean view in both sonar and flasher modes.
-
Adjustable Sonar Zoom sharpens your focus on fish at any depth—2X zoom on the flasher and up to 16X on the 2D view.
-
Internal Precision GPS built-in to mark your most productive spots, navigate with GPS tracks, and return to your honey holes with confidence.
-
Humminbird Basemap Built-in offers a clear view of underwater terrain and points of interest, with charts for more than 10,000 lakes and features to identify buoys, hazards, marinas, contours, and depth markers.
-
AutoChart Live ICE creates real-time 1-foot contour maps of your fishing spots, highlighting humps, drop-offs, and reefs while integrating LakeMaster features like Depth Highlight and Shallow Water Highlight.
-
MicroSD Card Reader enables premium mapping, software updates, and the ability to save screenshots, sonar recordings, and waypoints from your ICE HELIX.
-
Ultra-Bright, Detailed LCD Display delivers crystal-clear depth readings and sonar returns in real time, whether you’re inside a fish house or out on open ice.
-
Jig Charge Mode lets you recharge glow-painted spoons and jigs so you’re back on the bite quickly.
-
Premium Shuttle includes a master power switch, quick-connect SAE cables, a large handle, multiple mounting options, two rod holders, cable/transducer management, and a battery cover for clean, convenient operation.
-
All-Season Ready designed for use on ice or in summer boat and portable setups, with compatibility for LakeMaster or Navionics maps to maximize your fishing and navigation capabilities.
Includes a 15Ah lithium battery to power long days on the ice, along with everything you need to operate seamlessly whether you’re drilling in winter or cruising in warmer months. Experience unparalleled clarity, precise positioning, and real-time mapping that set this kit apart from the rest, so you can fish smarter and stay ahead of the bite all year long.
| Display Size - Diagonal |
7" |
| Display Pixel Matrix |
1024H x 600V |
| Sonar-Standard |
Dual Spectrum CHIRP |
| Sonar-Coverage |
15° & 21° @ -3dB |
| Sonar-Optional |
50 kHz, 50/Low Airmar CHIRP |
| CHIRP - Frequencies Supported |
50/200 (28-75/130-250 kHz), 83/200 (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz) |
| Sonar-Frequencies Supported |
50/80/200 kHz |
| Depth-Sonar |
400 ft |
| Interface |
Keypad Control |
| Features |
Dual Spectrum CHIRP, Interference Rejection, Jig Charge Mode, Portable, Built In GPS, Built In Mapping, AutoChart Live Ice, MEGA Live Imaging |
| Memory Card Slot |
Single Micro SD |
| Compatible With |
AIS, AutoPilot |
| Power Draw |
800 mA |
| Power Input |
10.8-20 VDC |
| Power Output Peak-to-Peak |
4000 Watts |
| Power Output RMS |
500 Watts |
| Screen Snap Shot |
Included |
| Sonar Recording |
Included |
| Mount-Standard |
Portable |
| Transducer Mount Location |
Portable |
| GPS Chartplotting |
Included |
| GPS Trackplotting |
Included |
| LakeMaster Compatibility |
Yes |
| Coast Master Compatibility |
Yes |
| Navionics Gold/HotMaps Compatibility |
Yes |
| Navionics Platinum + Compatibility |
Yes |
| Platinum Compatibility |
Yes |
| Heading Sensor GPS Compatibility |
Yes |
| Upgradable Software |
Yes |
| View Preset Keys |
No |
| X-Press Menu System |
Yes |
| Custom Digital Readout |
Yes |
| Custom View Selections |
Yes |
| Display Colors Grayscale |
16-Bit |
| Speed |
Included |
| Temperature |
Built In |
| Temperature Alarm |
Yes |
| Temperature Graph |
No |
| HDMI Compatible |
No |
| MEGA Live Compatibility |
No |
