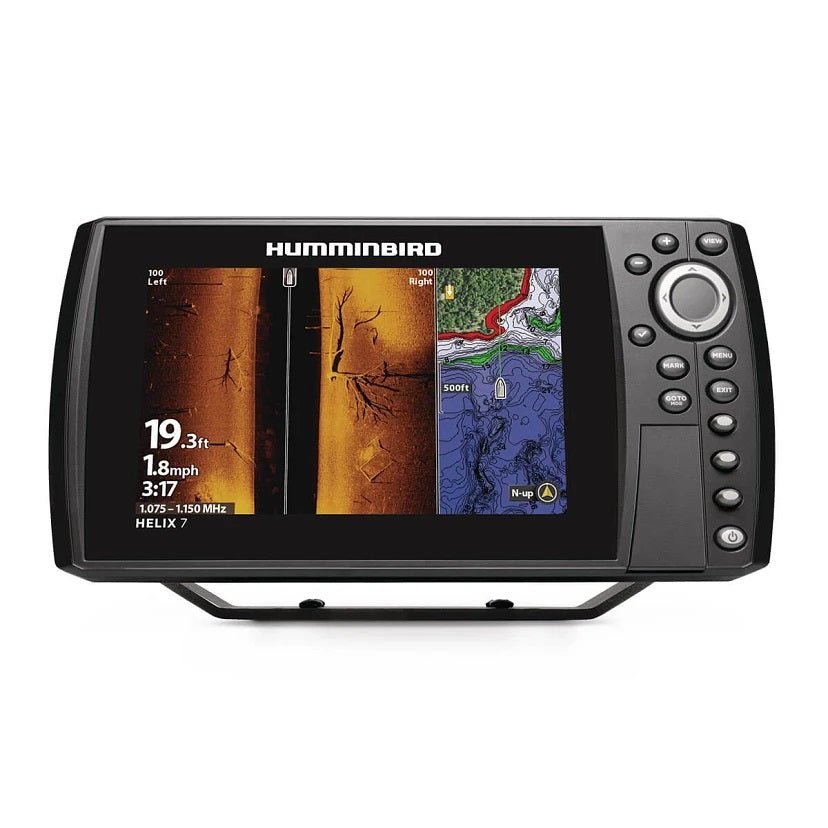

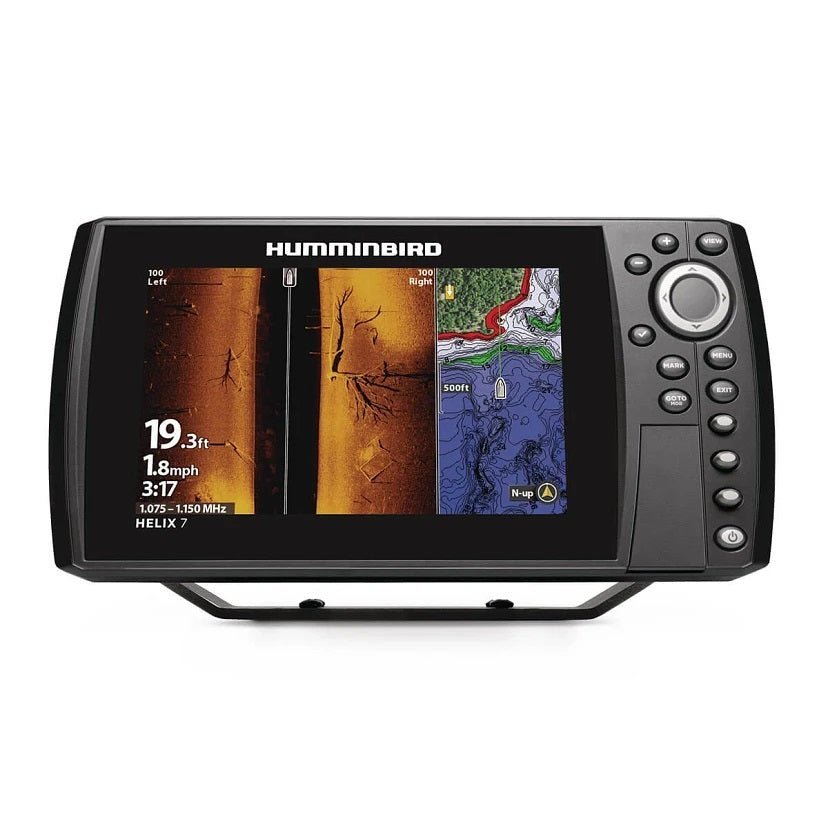

Humminbird HELIX7 CHIRP MSI GPS G4N

Meet the Humminbird HELIX7 CHIRP MSI GPS G4N — a powerful all-in-one fishfinder and navigation system designed for serious anglers who want precise imaging, real-time mapping, and seamless connectivity on the water.

• Display: 7" display with a 1024×600 pixel matrix for sharp, easy-to-read imaging in varying lighting conditions.
• Imaging technology: MEGA Side Imaging and MEGA Down Imaging deliver crystal-clear views up to 125 feet per side and down to 125 feet, providing up to 3x more detail than standard imaging.
• CHIRP Sonar: Dual Spectrum CHIRP 2D sonar with Wide Mode for broad coverage and Narrow Mode for fine-detail targeting, powered by a Low-Q transducer.
• GPS & Basemap: Integrated GPS with Humminbird Basemap, including charts for more than 10,000 lakes and continental U.S. coastal coverage for confident navigation.
• Premium Chart Compatibility: Supports LakeMaster and CoastMaster, plus compatible Navionics charts for enhanced offshore and inland detail.
• AutoChart Live: Real-time mapping to create drive-depth contours, bottom hardness, and vegetation for your favorite spots.
• Storage & Recording: Dual Micro SD memory slots with up to eight hours of built-in recording time and compatibility with AutoChart Zero Line SD cards for expanded mapping capacity.
• Networking: One-Boat Network compatible with high-speed Ethernet to connect multiple fish finders and add-on technologies; enables advanced integrations.
• Smart Connectivity: Bluetooth and Wi-Fi for wireless control, smartphone notifications, and wireless software updates via the Humminbird FishSmart App.
• Data Networking: Built-in NMEA 2000 for easy connection to an accessory network and enhanced data sharing.
• Control & Interface: Master keypad control with soft-key driven menus for quick, reliable operation in any conditions.
• Imaging Frequencies: CHIRP imaging frequencies include 455 kHz (440–500 kHz), MEGA DI (1075–1150 kHz), and MEGA SI (1075–1150 kHz).
• Depth Range: Depth capability of 1,200 ft with standard transducer and up to 3,500 ft with an optional 50 kHz transducer.
• Sonar Coverage: 20°, 42°, 60°, and two 86° angles at -10 dB for flexible scanning and target isolation.
• Optional Frequencies: 53 kHz and 50/Low Airmar CHIRP options available for extended compatibility.
• Power: Power input 10.8–20 VDC; typical power draw of 800 mA for efficient on-board operation.
• Compatibility: AIS, AutoPilot, Minn Kota US2 Sonar, Minn Kota built-in MEGA DI, MEGA Live, One-Boat Network, Minn Kota i-Pilot Link, Minn Kota Talon/Raptor, NMEA 2000, and radar integration.
• Memory Card Slot: Dual Micro SD.
• Interface: Keypad control for reliable operation in challenging conditions.

This HELIX7 bundle combines razor-sharp MEGA imaging with robust mapping options and versatile connectivity to help you locate fish faster, mark productive spots, and navigate with confidence. Real-time AutoChart Live mapping builds your own drive-depth contours and bottom profiles, while One-Boat Network keeps compatible devices on the same data plane. With broad chart support, wireless updates, and flexible transducer options, you can tailor your setup to your favorite waters and fishing style.
