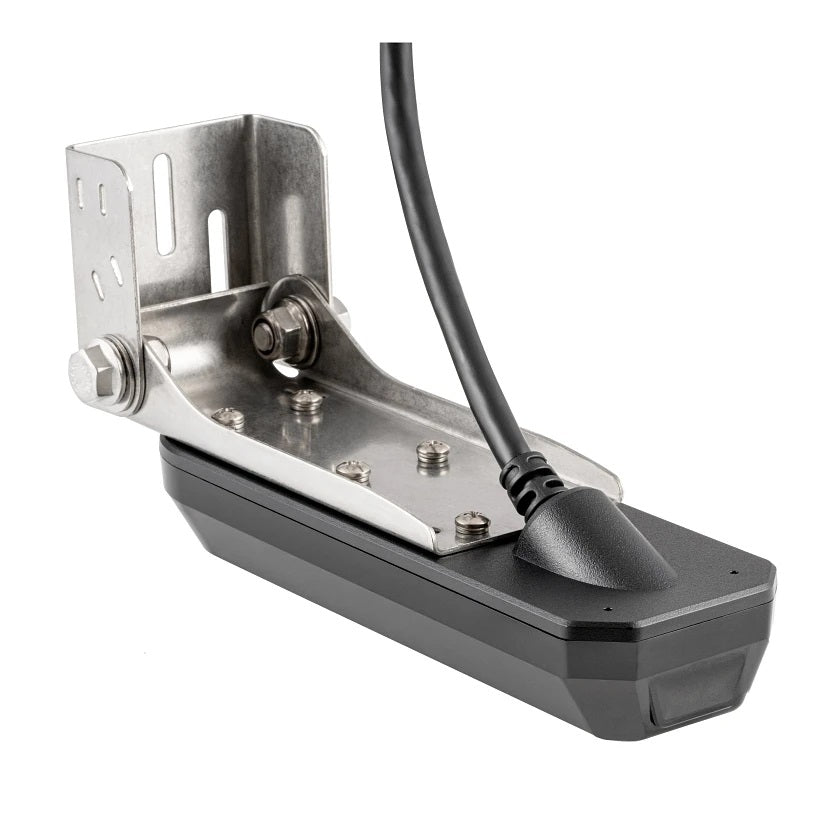

The Humminbird XM-14-HW-CMSI-T Transom Mount Transducer delivers professional MEGA Side Imaging+ and Down Imaging+ performance in a compact, durable transom-mount design for Humminbird APEX, SOLIX G3, and XPLORE displays. It reveals structure, cover, and fish with clarity on the water.
-
Imaging capabilities: MEGA Side Imaging+ and MEGA Down Imaging+ with dual frequencies deliver broad coverage and razor-sharp detail at varying depths.
-
MEGA Side Imaging+ frequencies: 455 kHz for broad coverage up to 800 ft (244 m) and MEGA 1.1–1.2 MHz for detail up to 400 ft (122 m).
-
MEGA Down Imaging+ frequencies: 455 kHz (420–520 kHz) down to 400 ft (122 m) and MEGA 1.125–1.225 MHz down to 400 ft (122 m) for strong vertical detail.
-
Dual Spectrum CHIRP: Three sweeping modes—Full 150–220 kHz, Narrow 180–240 kHz, and Wide 140–200 kHz—for versatile target separation across depths.
-
Transom mounting: Screw-On Connector design for simple, secure installation on a transom boat setup.
-
Built-in temperature sensor: Real-time water-temperature data to aid fish behavior interpretation and navigation.
-
Cable length: 20 feet to provide flexible mounting options and reach on larger vessels.
-
Compatibility: Harmonizes with Humminbird APEX, XPLORE, and SOLIX G3 sonars to unlock MEGA imaging capabilities in a compact transducer body.
-
Warranty: 1-Year Limited Warranty for dependable support and peace of mind.
Upgrade your marine sonar with MEGA imaging that helps you identify structure, cover, and fish more clearly. With extensive side coverage and down-imaging depth, plus real-time temperature data and straightforward transom installation, this transducer offers a reliable, high-detail upgrade for Humminbird displays across a wide range of depths and conditions.
