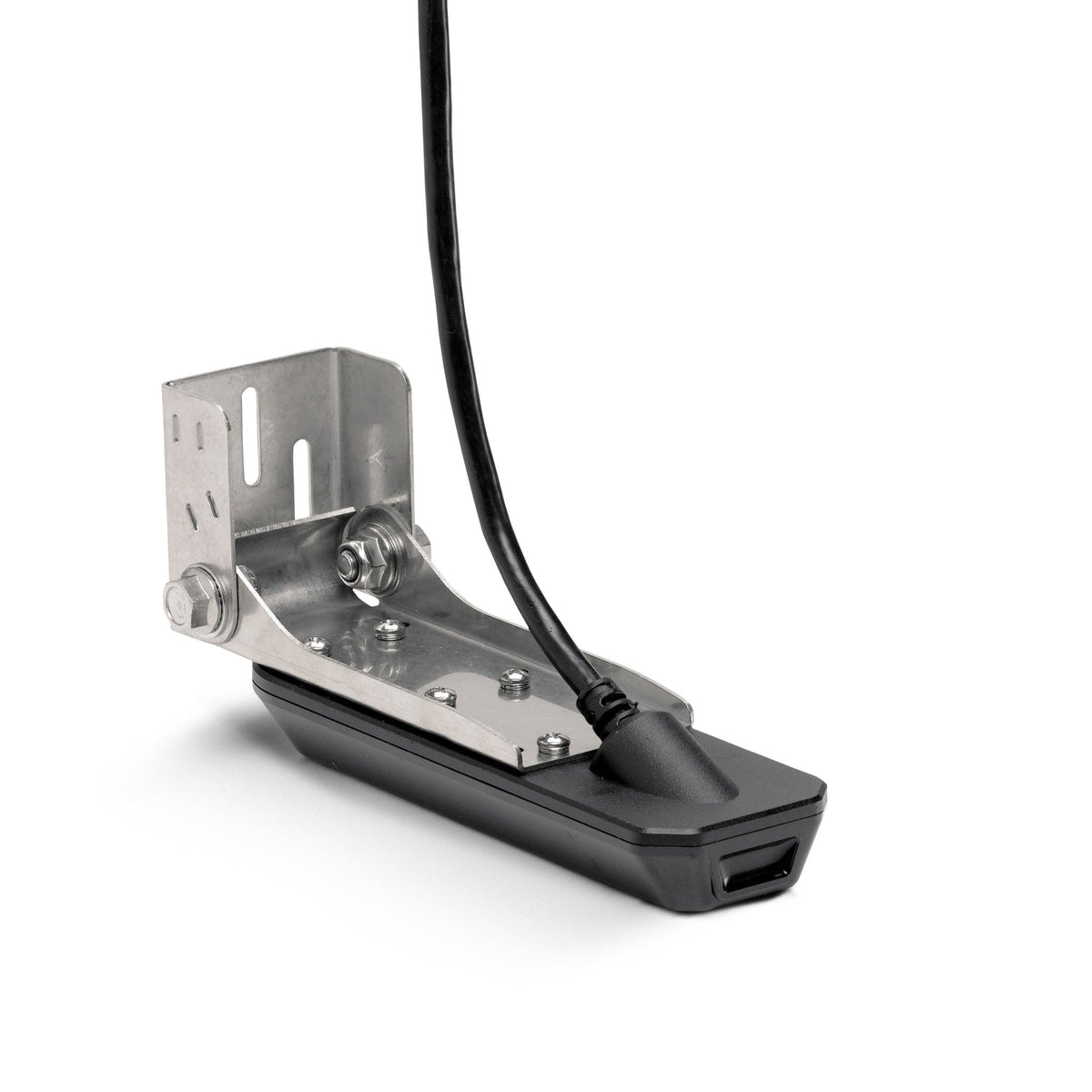

Engineered for serious anglers, the Humminbird XM-14-HW-MDI-T Transom Mount with Temperature Sensor delivers rugged, high-performance sonar tailored for SOLIX displays with MEGA Imaging+ and Dual Spectrum CHIRP. Built to endure demanding waterways, it provides precise data and real-time water temperature where you need it most.
-
Mount Type: Transom
-
Sonar Type: MEGA Imaging, Dual Spectrum
-
Imaging Technologies: MEGA Imaging+ and Down Imaging+ for ultra-high-resolution underwater views
-
Dual Spectrum CHIRP: Full 150-220 kHz, Narrow 180-240 kHz, Wide 140-200 kHz
-
Depth Range: Max depth up to 1200 ft (365 m)
-
Temperature Sensor: Built-in sensor continuously reports water temperature
-
Durability: Rugged composite housing with an all-metal bracket for challenging environments and secure mounting
-
Cable Length: 20 ft cabling included for flexible installation and optimal reach to SOLIX head units
-
Compatibility: Designed for SOLIX series displays — SOLIX 10, SOLIX 12, and SOLIX 15
-
Power/Model: Model 710290-1 powers the XM-14-HW-MDI-T
Enhance your fishing with precise imaging and real-time water temperature data, enabling quicker interpretation of fish behavior and feeding patterns. The XM-14-HW-MDI-T combines rugged durability with high-resolution sonar performance, delivering reliable depth reach and clear target separation on every trip.
| Mount Type |
Transom |
| Sonar Type |
MEGA Imaging, Dual Spectrum |
| Current Models |
SOLIX 10, SOLIX 12, SOLIX 15 |
