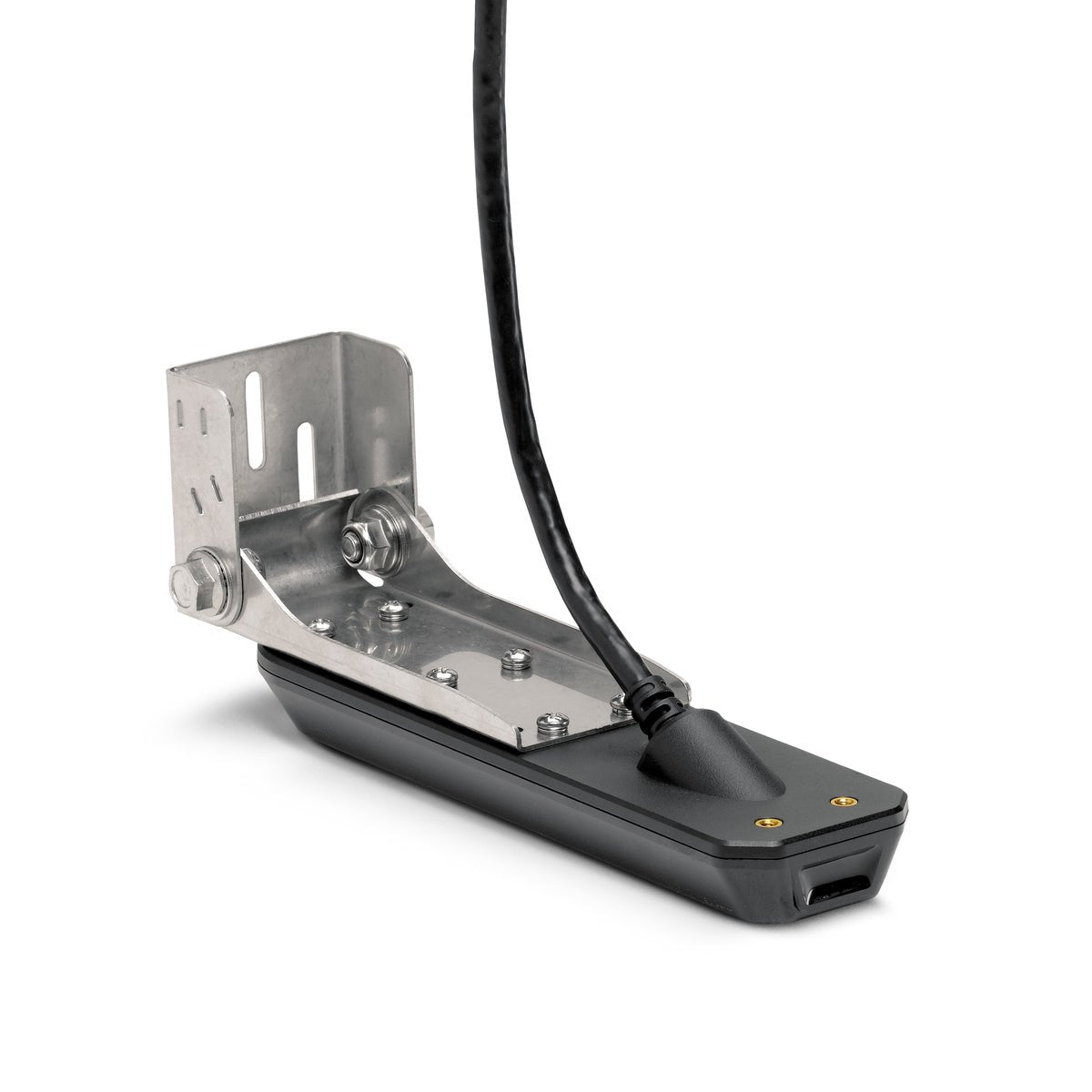

Meet the Humminbird XM-14-HW-MSI-T Transom Mount with Temp—a rugged transducer designed for SOLIX displays that delivers high-clarity MEGA Imaging+ and Dual Spectrum CHIRP along with real-time water temperature data. Specifically designed for SOLIX 10, 12, and 15, it combines durable construction with flexible installation for reliable performance on the water.
-
Mount Type: Transom
-
Sonar Type: MEGA Imaging, Dual Spectrum
-
Current Models: SOLIX 10, SOLIX 12, SOLIX 15
-
Temperature Sensing: Built-in temperature sensor provides real-time water temperature readings
-
Construction: Rugged composite housing with an all-metal mounting bracket
-
Cable Length: 20 ft
-
Depth Range: Up to 1200 ft (365 m) with MEGA Imaging+ and Dual Spectrum CHIRP 2D sonar
-
MEGA Imaging+ Side Imaging Frequencies: 455 kHz and 800 kHz
-
MEGA Imaging+ Side Range: Up to 800 ft (244 m) side-to-side
-
MEGA SI+ Frequency Range: 1075–1150 kHz for enhanced reach (up to ~400 ft / 122 m)
-
Dual Spectrum CHIRP 2D Range: CHIRP 150–220 kHz
With real-time temperature data, you can tailor fishing decisions to current conditions. The combined MEGA Imaging+ and Dual Spectrum CHIRP 2D sonar deliver crisp, detailed imagery for fish, structure, and terrain from shallow to deep water. The rugged construction and all-metal bracket ensure durability in challenging conditions, while the 20 ft cable provides flexible mounting options to optimize coverage on SOLIX 10, 12, and 15 displays. This transom-mount solution unlocks advanced sonar capabilities and reliable temperature data on every voyage.
| Mount Type |
Transom |
| Sonar Type |
MEGA Imaging, Dual Spectrum |
| Current Models |
SOLIX 10, SOLIX 12, SOLIX 15 |
