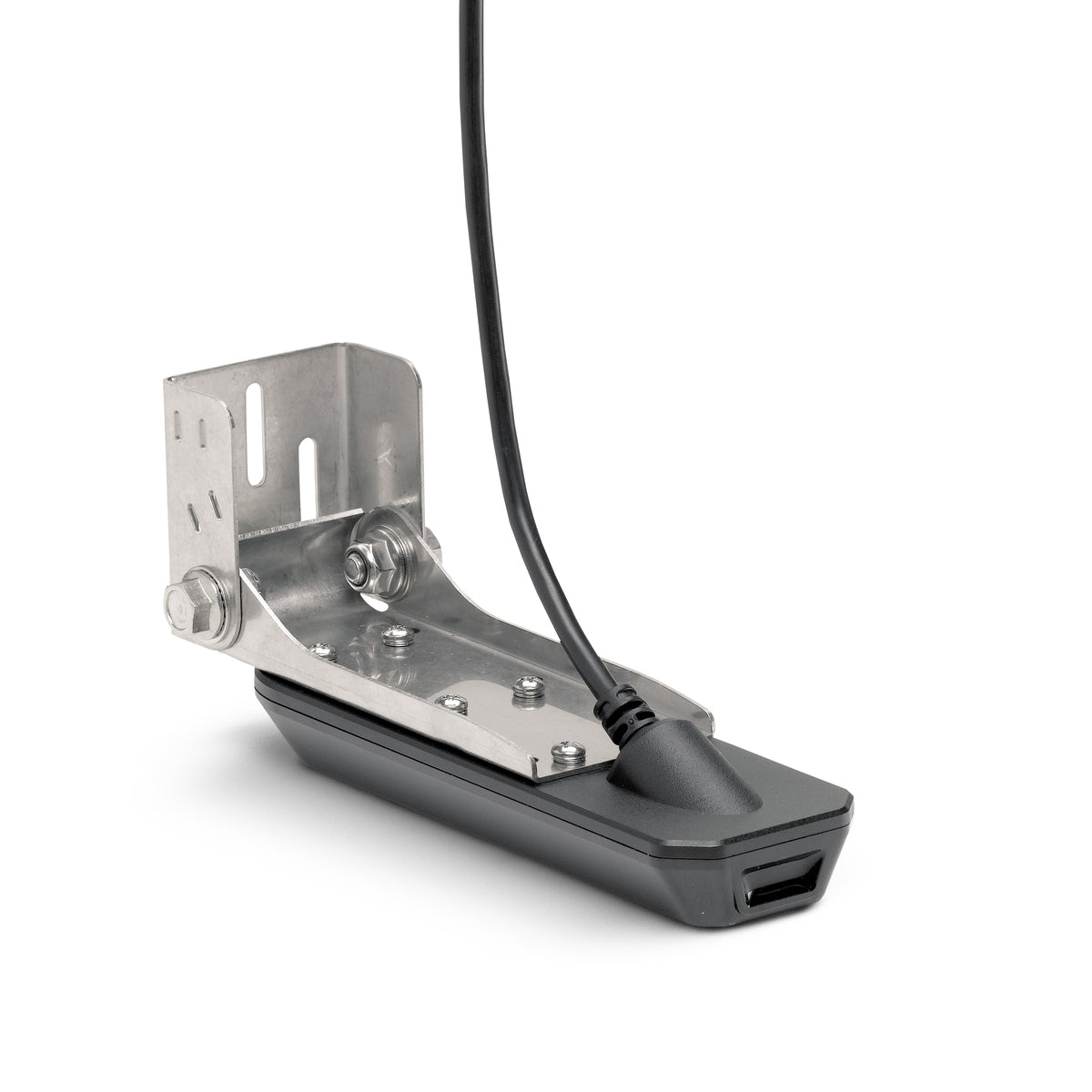

Humminbird XM-9-HW-MDI-T Transom Mount with Temp is a rugged, high-performance transducer designed for HELIX 8/9/10/12 G3N Series systems. With MEGA Imaging, Dual Spectrum CHIRP, and a built-in temperature sensor, this transom mount delivers crystal-clear bottom detail, unprecedented target separation, and real-time water-temperature data on your display.
Compatibility
- HELIX 8 G3N Series MEGA DI and MEGA SI+
- HELIX 9 G3N Series MEGA DI and MEGA SI+
- HELIX 10 G3N Series MEGA DI and MEGA SI+
- HELIX 12 G3N Series MEGA DI and MEGA SI+
Key Features
- Transom-mount transducer that supports MEGA Imaging, 800 kHz, and 455 kHz, plus Dual Spectrum CHIRP 2D sonar with a CHIRP range of 150–220 kHz
- Dual Spectrum CHIRP frequencies: Full 150–220 kHz, Narrow 180–240 kHz, Wide 140–200 kHz
- Max depth for CHIRP 2D: up to 1200 ft (365 m)
- Down Imaging frequencies and depth performance:
- 455 kHz: 440–500 kHz, up to 400 ft (122 m)
- 800 kHz: 790–850 kHz, up to 125 ft (38 m)
- MEGA DI+: 1075–1150 kHz, up to 200 ft (61 m)
- Built-in temperature sensor for real-time water temperature readouts
- Rugged composite housing with an impact-release mounting bracket for quick, reliable mounts
- Includes a 20 ft cable for flexible installation on a variety of vessels
Engineered for precision and durability, the XM-9-HW-MDI-T enhances your fishing experience by delivering superior imaging, expansive sonar coverage, and temperature data directly to your HELIX G3N display. Whether you’re trolling, casting, or stalking structure, this transom mount helps you find fish faster and stay in the know about the water you’re in.
| Mount Type |
Transom |
| Sonar Type |
MEGA Imaging, Dual Spectrum |
| Current Models |
HELIX 8, HELIX 9, HELIX 10, HELIX 12 |
