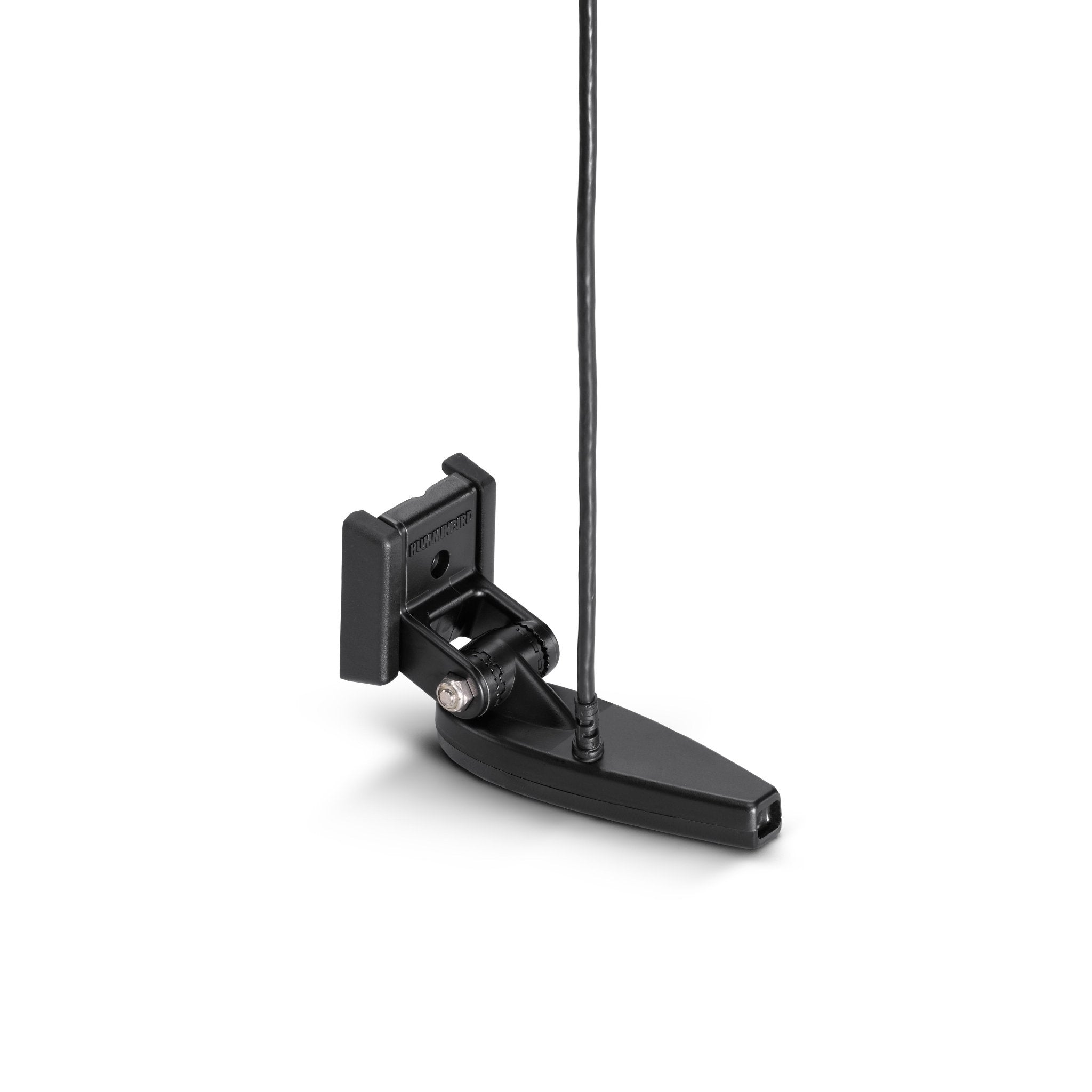

Upgrade your Humminbird HELIX system with the XNT-9-HW-MDI-75-T Transom Mount with Temperature Sensor. Model 710295-1 is designed to pair with HELIX 7 and HELIX 8 CHIRP MEGA DI GPS G3/G3N displays, delivering crystal-clear imaging and reliable water-temperature data on the water.
Unmatched Imaging with MEGA Imaging and Dual Spectrum CHIRP
Experience MEGA Imaging clarity with frequencies 440-500 kHz up to 350 ft (107 m), plus MEGA Down Imaging at 1075-1150 kHz up to 125 ft (38 m). The transom mount also supports MEGA Imaging, 800 kHz, and 455 kHz, and provides Dual Spectrum CHIRP 2D sonar across a CHIRP range of 150-220 kHz. Choose from three bandwidth modes for optimal target separation: Full 150-220 kHz, Narrow 180-240 kHz, and Wide 140-200 kHz.
Key Features
-
Built-in temperature sensor for real-time water conditions
-
Rugged composite design built to endure demanding fishing environments
-
Impact-release mounting bracket for quick, secure removal and easy storage
-
20 ft (6 m) cable for flexible installation
-
Transom mount compatible with HELIX 7 and HELIX 8 CHIRP MEGA DI GPS G3/G3N systems
Compatibility and Performance
-
Mount Type: Transom
-
Sonar Type: MEGA Imaging, Dual Spectrum CHIRP
-
Current Models Supported: HELIX 7 and HELIX 8
Why This Transom Transducer Stands Out
The Humminbird XNT-9-HW-MDI-75-T delivers a seamless integration of MEGA Imaging and Dual Spectrum CHIRP with temperature sensing in a compact, durable transom-mount package. It’s the perfect upgrade for anglers who demand high-resolution fish arches, precise depth readings, and reliable performance in a rugged fishing boat setup.
| Mount Type |
Transom |
| Sonar Type |
MEGA Imaging, Dual Spectrum |
| Current Models |
HELIX 7, HELIX 8 |
