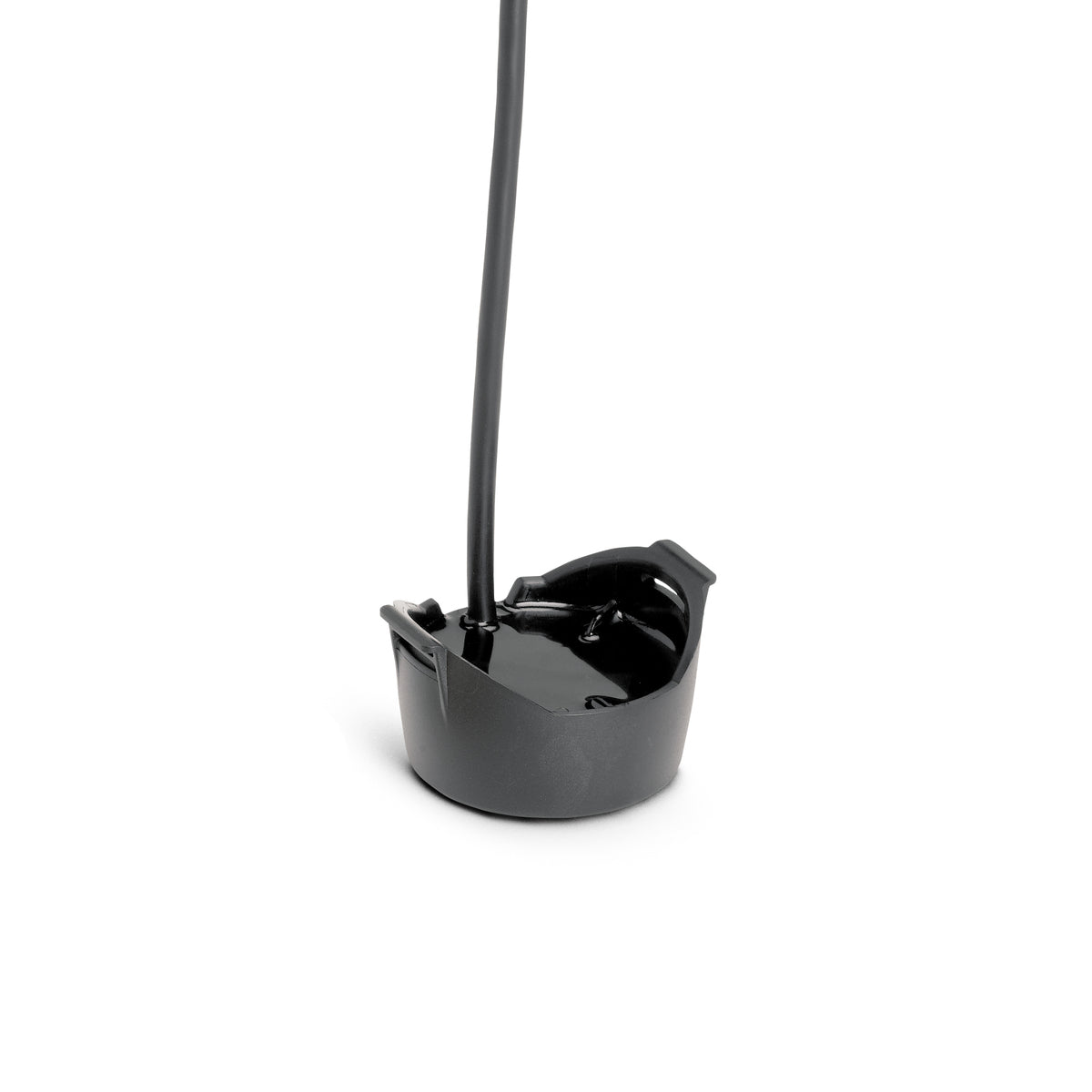

Meet the Humminbird XP-9-HW Puck Transducer, a purpose-built, in-hull CHIRP transducer designed to deliver precise 2D sonar performance for a range of HELIX models. Engineered for glue-in installation inside a single-layer fiberglass hull, it provides a clean, secure mounting and reliable depth readings without compromising hull integrity.
Compatibility
- HELIX 5 CHIRP G2 — GPS-equipped models only
- HELIX 7 CHIRP G2/G3 — GPS-equipped and CHIRP DI G2 models
- HELIX 7 CHIRP G2N/G3N — All models
- HELIX 8 CHIRP G3N — All models
- HELIX 9 CHIRP G2N/G3N — All models
- HELIX 10 CHIRP G2N/G3N — All models
- HELIX 12 CHIRP G2N/G3N — All models
- ICE HELIX CHIRP G2 — All models (In Open Water Mode)
- Note: Side Imaging™ and Down Imaging™ units can support the XP 9 HW as a 2D sonar only; it does not support Side Imaging or Down Imaging.
Performance & Technology
-
Dual Spectrum CHIRP frequencies — Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
-
Max depth — Up to 1200 ft (365 m)
- High-frequency beam with a wide cone angle for broad sonar coverage and detailed bottom visibility
- Designed specifically for in-hull installation to preserve deck space and reduce mounting clutter
Installation & Durability
-
In-Hull Glue-In installation inside a single-layer fiberglass hull
- Includes epoxy kit and a 20’ cable for a secure, long-reaching connection
Specifications
-
Model — 710275-1
-
Mount Type — In-Hull
-
Transducer Type — Dual Spectrum CHIRP
-
Current Models — HELIX 5, HELIX 7, HELIX 8, HELIX 9, HELIX 10, HELIX 12 and ICE HELIX CHIRP G2/G3N/G2N
What's in the box: XP-9-HW Transducer, epoxy kit, and 20’ cable.
| Mount Type |
In-Hull |
| Sonar Type |
Dual Spectrum |
| Current Models |
HELIX 5, HELIX 7, HELIX 8, HELIX 9, HELIX 10, HELIX 12 |
