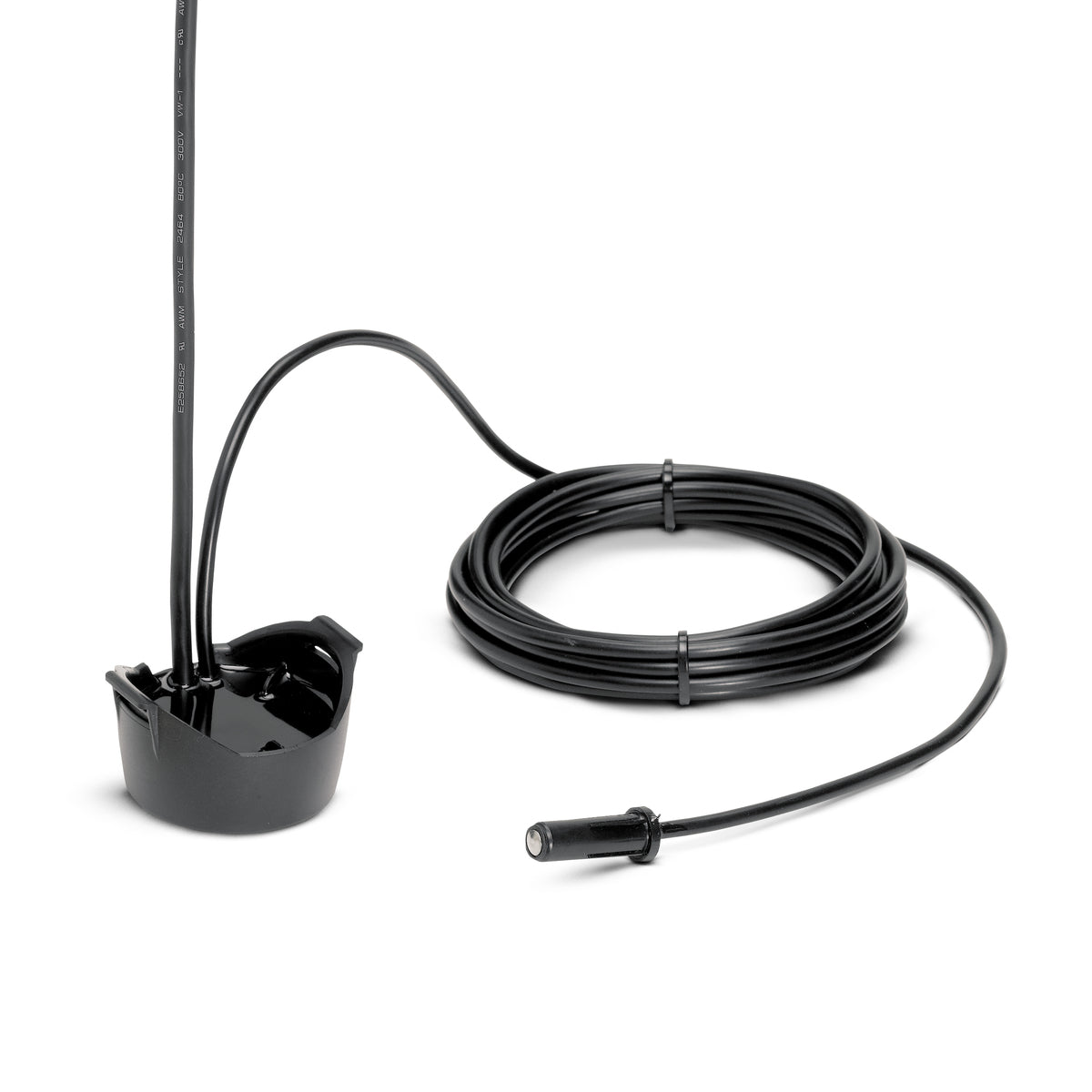

The Humminbird XP-9-HW-T Puck Transducer is a compact, in-hull 2D CHIRP transducer designed for fiberglass hulls and compatible with HELIX and ICE HELIX systems. It delivers clear targets, structure, and real-time water-temperature data for precise sonar when locating fish, shoals, and underwater features.
-
Mount Type: In-Hull
-
Sonar Type: Dual Spectrum
-
Frequencies: Full 150–220 kHz; Narrow 180–240 kHz; Wide 140–200 kHz
-
Max Depth: Up to 1200 ft (365 m)
-
Installation: In-Hull glue-in installation designed for single-layer fiberglass hulls with a clean profile; epoxy kit included
-
Temperature Sensor: Built-in temperature sensor for real-time water-temperature readings
-
Includes: Epoxy kit and 20 ft cable
-
Compatibility: Works with HELIX 5 CHIRP G2 (GPS-equipped); HELIX 7 CHIRP G2/G3 (GPS-equipped and CHIRP DI G2); HELIX 7 CHIRP G2N/G3N; HELIX 8 CHIRP G3N; HELIX 9 CHIRP G2N/G3N; HELIX 10 CHIRP G2N/G3N; HELIX 12 CHIRP G2N/G3N; ICE HELIX CHIRP G2 Imaging
-
Imaging Limitation: Side Imaging and Down Imaging units can use the XP 9 HW T as a 2D sonar only; no Side Imaging or Down Imaging support
The XP-9-HW-T delivers dependable 2D CHIRP performance in a low-drag, hull-friendly package. With three frequency bands, you can tailor the sonar to shallow structure or deeper schools while maintaining crisp target returns and reliable depth readings. The built-in temperature sensor adds actionable context for fish behavior and thermocline conditions. A straightforward glue-in installation, plus the epoxy kit and 20 ft cable, helps get you online quickly without compromising your hull. This transducer is compatible with a broad range of HELIX and ICE HELIX displays, making it a versatile upgrade for both new installations and retrofits. Keep in mind that users with Side Imaging or Down Imaging units will still receive 2D sonar output only.
| Mount Type |
In-Hull |
| Sonar Type |
Dual Spectrum |
| Current Models |
HELIX 5, HELIX 7, HELIX 8, HELIX 9, HELIX 10, HELIX 12, ICE HELIX |
