Engineered for Humminbird SOLIX MEGA SI+ GPS G2 displays, the Humminbird XPTH 14 HW MSI T Plastic Thru Hull Transducer is a rugged, high‑performance through‑hull sonar solution that unlocks MEGA Imaging+ and Dual Spectrum CHIRP for ultra‑clear views of fish and structure around and beneath your boat.
-

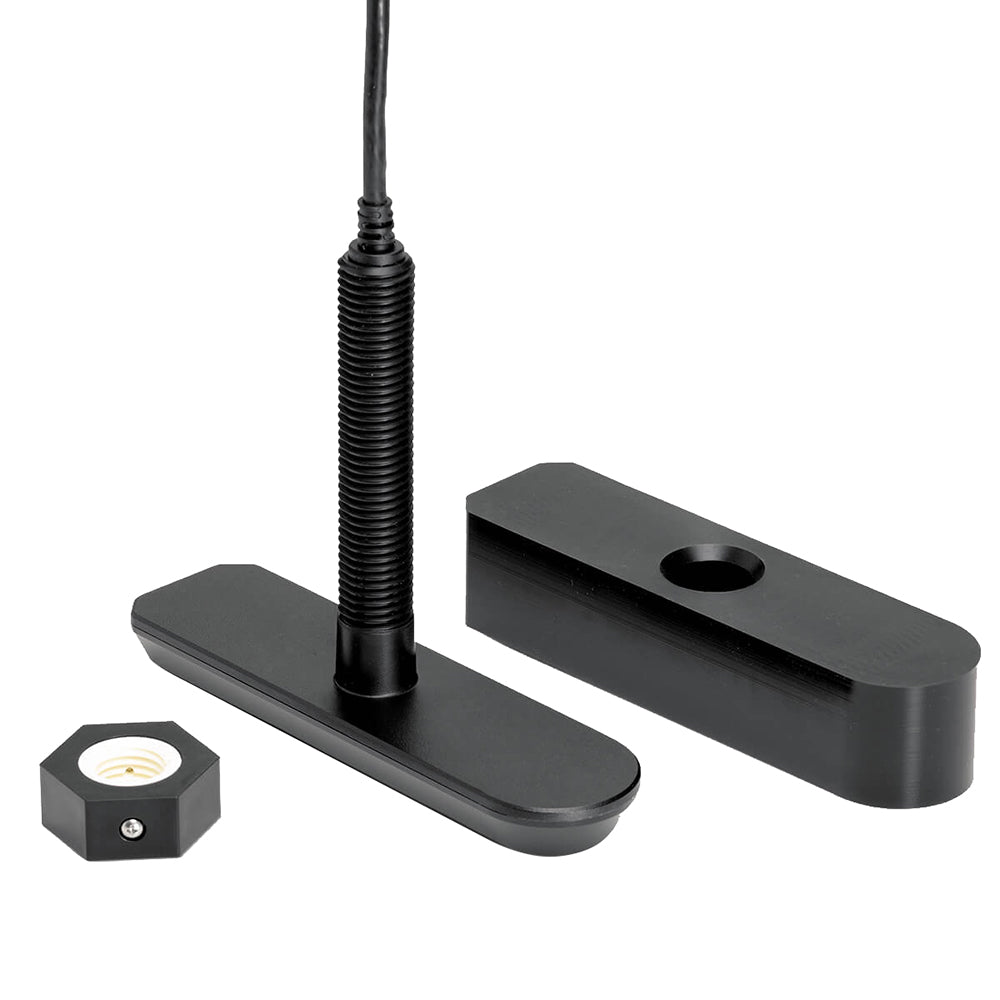

Through‑Hull Plastic Design: Clean hull integration with minimal drag; compact housing (8.4 in L × 2.3 in W × 1.0 in D) and a 5 in stem (Ø 1 in) engineered for reliable marine performance.
-
MEGA Imaging+ & Dual Spectrum CHIRP: Delivers high‑resolution side imaging, down imaging, and versatile 2D CHIRP sonar for superior target separation and structure detail.
-
MEGA Imaging Frequencies & Range: 455 kHz (440–500 kHz) up to 800 ft; 800 kHz (790–850 kHz) up to 250 ft; MEGA SI+ (1075–1150 kHz) up to 400 ft.
-
MEGA Down Imaging & DI+: 455 kHz up to 400 ft; 800 kHz up to 250 ft; MEGA DI+ (1075–1150 kHz) up to 200 ft.
-
Dual Spectrum CHIRP 2D Sonar: Full 150–220 kHz, Narrow 180–240 kHz, Wide 140–200 kHz; maximum depth up to 1200 ft.
-
Built‑in Temperature Sensor: Monitors water temperature to help interpret fish activity patterns and bait choices.
-
Rugged Composite Construction: Designed to withstand harsh marine conditions for reliable, long‑term use.
-

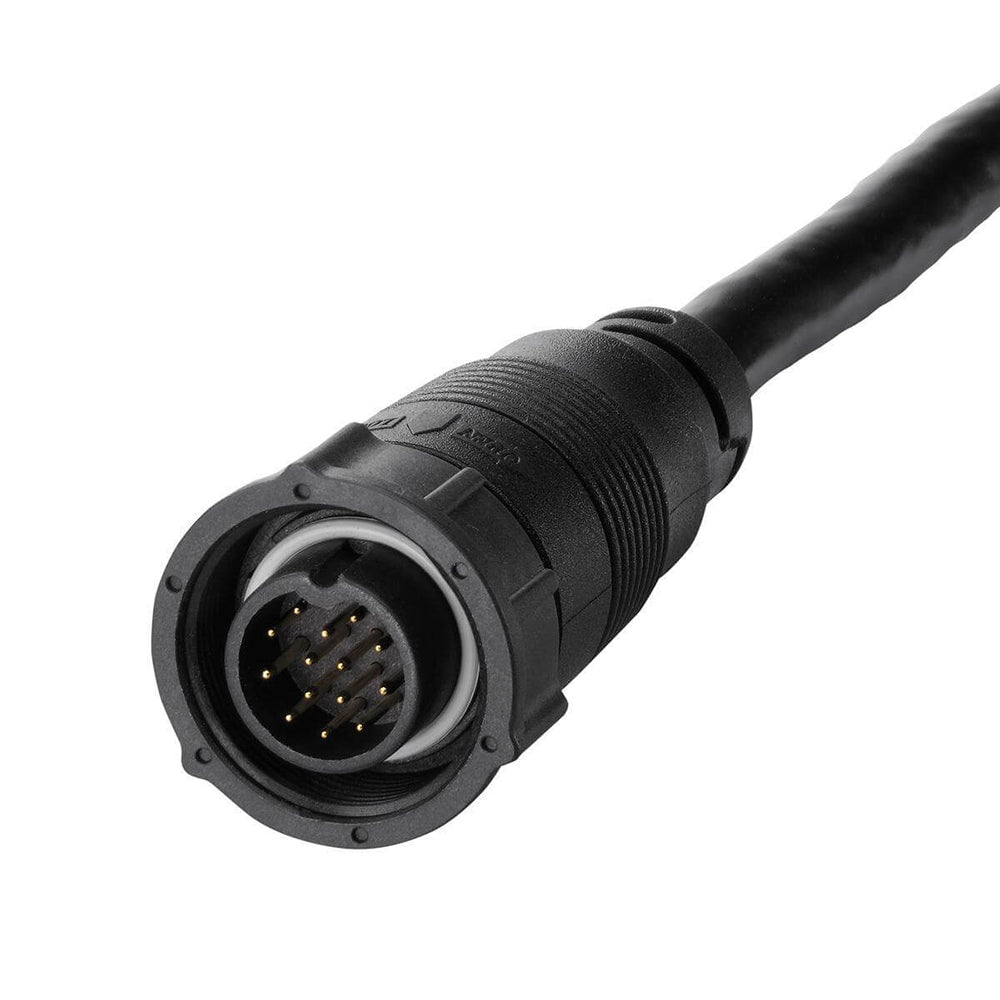

Cable Length: 30 ft for flexible installation and routing options.
-
Compatibility: Specifically designed to pair with SOLIX 10, SOLIX 12, and SOLIX 15 CHIRP MEGA SI+ GPS G2 systems to maximize MEGA imaging.
-
Warranty: 1‑Year Limited Warranty.
This transducer enables deeper, clearer insights with MEGA Imaging+ and CHIRP performance while maintaining a streamlined hull profile. Its built‑in temperature sensing supports smarter fishing decisions, helping you time your casts and select baits with more confidence. The rugged construction and 30‑foot cable provide reliable installation and flexible routing across a range of vessels and mounting situations, ensuring optimized MEGA imaging across your SOLIX displays.
