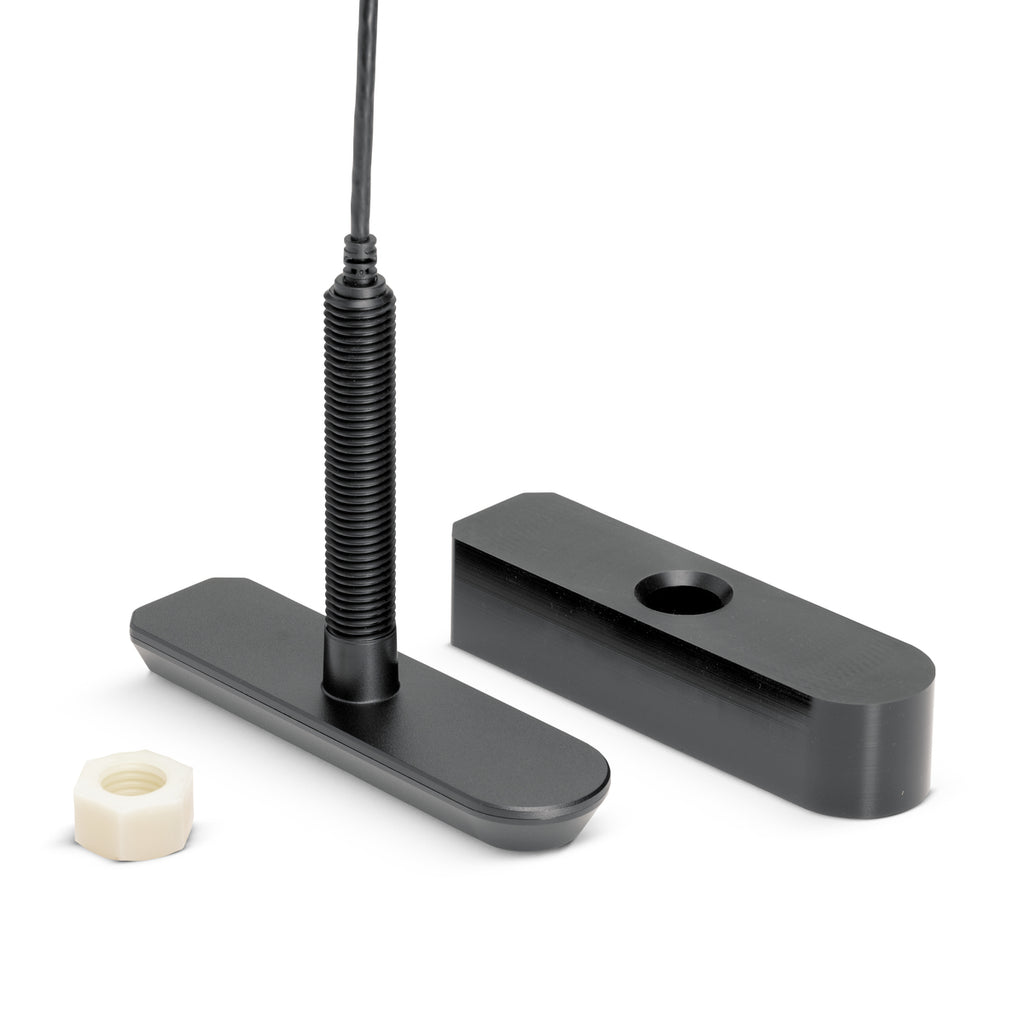

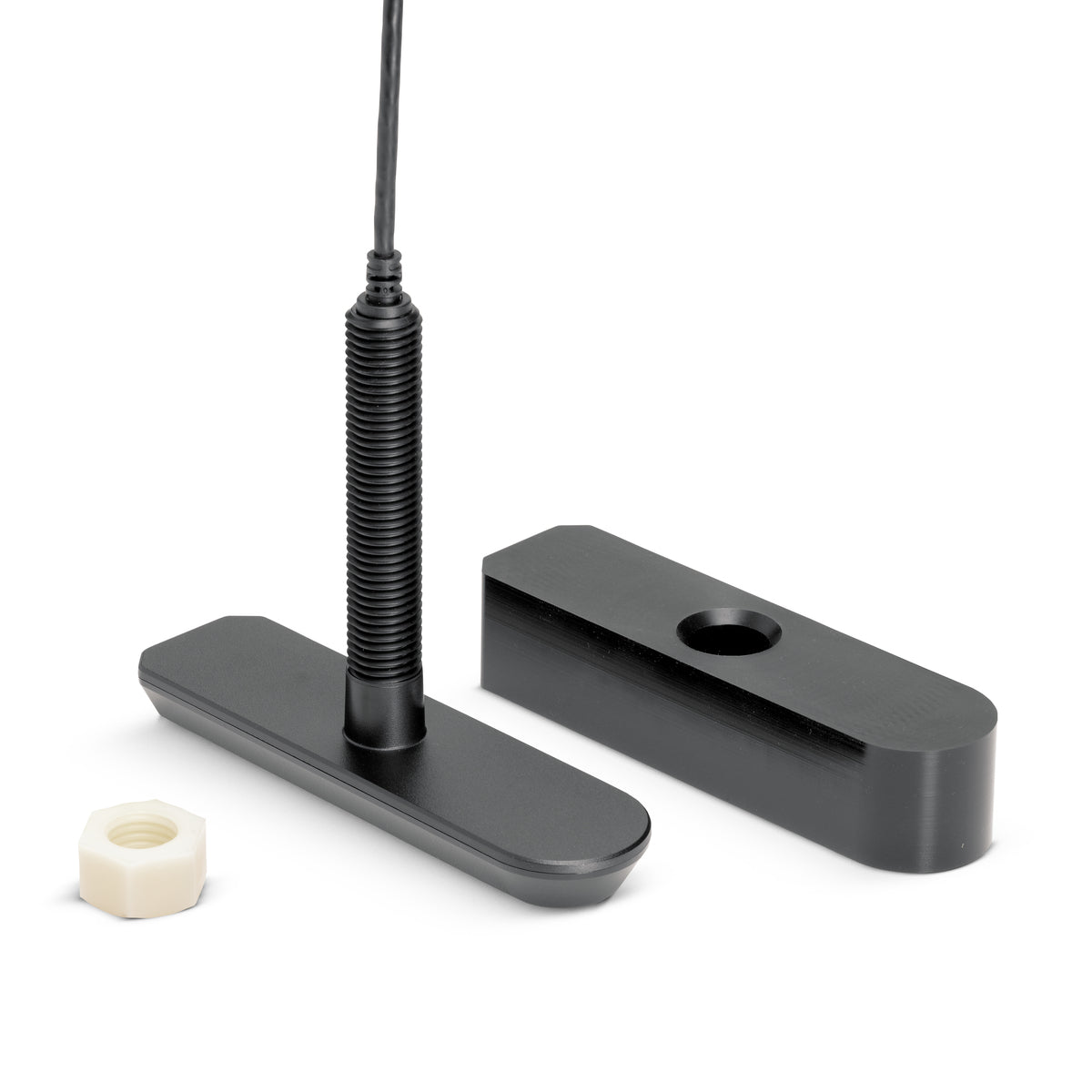

Discover precision beneath the surface with the Humminbird XPTH-9-HW-MSI-T Thru-Hull Transducer with Temperature. This rugged MEGA Imaging transducer is designed to integrate with HELIX 8/9/10/12 CHIRP MEGA SI+ GPS G3N systems, delivering ultra-detailed side and down imaging for anglers who demand clarity and confidence on every cast.
Engineered for through-hull mounting, the XPTH-9-HW-MSI-T combines a robust plastic housing, built-in temperature sensor, and a 30’ cable for flexible installation. It delivers MEGA Imaging alongside Dual Spectrum CHIRP 2D sonar, providing crisp target detail from near to far while maintaining excellent performance at speed.
Key features
-
MEGA Imaging and Dual Spectrum CHIRP — Enjoy ultra-detailed MEGA Side Imaging, MEGA Down Imaging, and DI+ with a CHIRP 2D sonar range of 150–220 kHz. Dual Spectrum CHIRP supports three options for optimized depth and target separation: Full 150–220 kHz, Narrow 180–240 kHz, and Wide 140–200 kHz.
-
MEGA Imaging Performance — MEGA Side Imaging+ frequencies include 455 kHz (440–500 kHz) with up to 800 ft (244 m) side-to-side range and 800 kHz (790–850 kHz) with up to 250 ft (76 m). MEGA Down Imaging+ covers 455 kHz (440–500 kHz) up to 400 ft (122 m) and 800 kHz (790–850 kHz) up to 125 ft (38 m). MEGA DI+ operates at 1075–1150 kHz with up to 200 ft (61 m) depth.
-
Deep, crisp imaging — Max MEGA imaging depth for Side Imaging+ reaches up to 1200 ft (365 m), delivering broad coverage with exceptional detail.
-
Compatibility — Specifically designed for HELIX 8, HELIX 9, HELIX 10, and HELIX 12 CHIRP MEGA SI+ GPS G3N units, ensuring seamless integration with your existing sonar network.
-
Through-Hull Design — Plastic thru-hull construction provides a durable, low-drag mounting solution for steady signal transmission and long-term reliability.
-
Temperature Sensor — Built-in temperature sensing delivers real-time water temperature data to inform fishing strategy.
-
Ready to install — Includes a 30’ cable for flexible installation options on a wide range of vessels.
Upgrade to the Humminbird XPTH-9-HW-MSI-T through-hull transducer to unleash MEGA Imaging clarity, Dual Spectrum CHIRP precision, and dependable performance under diverse conditions. Enjoy enhanced target discrimination, deeper understanding of structure, and real-time temperature insight for smarter, more successful fishing trips.
| Mount Type |
Thru-Hull |
| Sonar Type |
MEGA Imaging, Dual Spectrum |
| Current Models |
HELIX 8, HELIX 9, HELIX 10, HELIX 12 |
