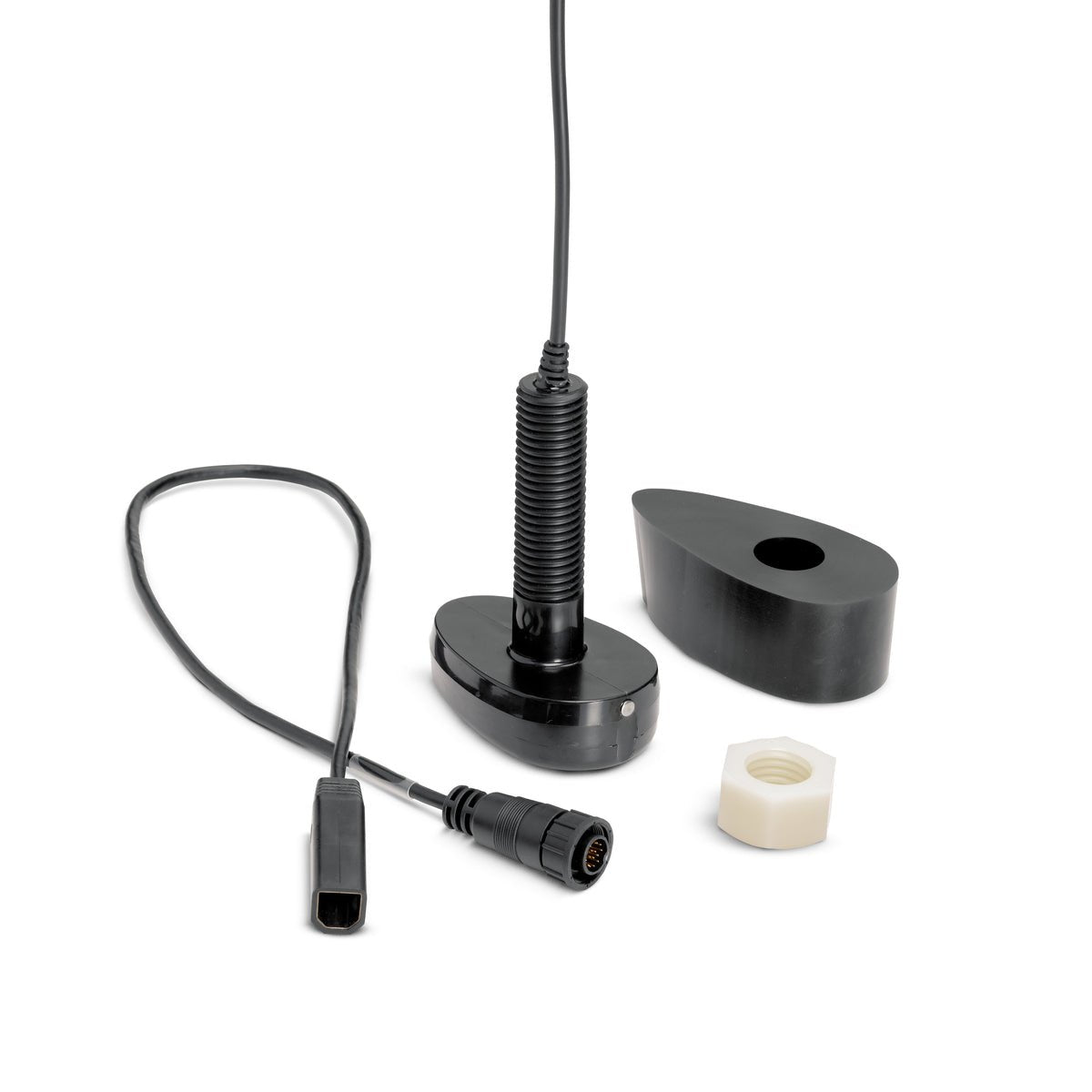

Upgrade your Humminbird HELIX sonar experience with the Humminbird XPTH-9-HW-T Transducer W/Temp. This thru-hull, plastic transducer combines Dual Spectrum CHIRP 2D sonar with a built-in temperature sensor, giving you accurate depth readings and real-time water temperature for smarter on-the-water decisions.
Designed for demanding on-board performance, this rugged transducer is built to endure the marine environment and delivers crisp 2D CHIRP returns with a focused high-frequency beam and a wide cone angle. It includes a 30’ cable for flexible installation and easy routing.
Compatibility & Deployment
-
Compatibility: Works with HELIX 5 CHIRP G2 GPS-equipped models; HELIX 7 CHIRP G2/G3 GPS-equipped and CHIRP DI G2 models; HELIX 7 CHIRP G2N/G3N (All models); HELIX 8 CHIRP G3N (All models); HELIX 9 CHIRP G2N/G3N (All models); HELIX 10 CHIRP G2N/G3N (All models); HELIX 12 CHIRP G2N/G3N (All models); and ICE HELIX CHIRP G2 (Open Water Mode).
-
2D Sonar Only: Side Imaging and Down Imaging units can use the XPTH-9-HW-T as a 2D sonar transducer, but it does not support Side Imaging or Down Imaging.
Key Specifications
-
Dual Spectrum CHIRP Frequencies: Full 150-220 kHz, Narrow 180-240 kHz, Wide 140-200 kHz
-
Max Depth: 1200 ft (365 m)
-
Construction: Plastic thru-hull with a rugged composite design
-
Built-in Temperature Sensor: Real-time water temperature data
-
Cable Length: 30 ft
Enhance your fishing camp, navigation, and depth-sensing capabilities with the XPTH-9-HW-T, a reliable transducer that delivers robust 2D CHIRP performance, temperature readouts, and straightforward installation across a wide range of HELIX models.
| Mount Type |
Thru-Hull |
| Sonar Type |
Dual Spectrum |
| Current Models |
HELIX 5, HELIX 7, HELIX 8, HELIX 9, HELIX 10, HELIX 12, ICE HELIX |
