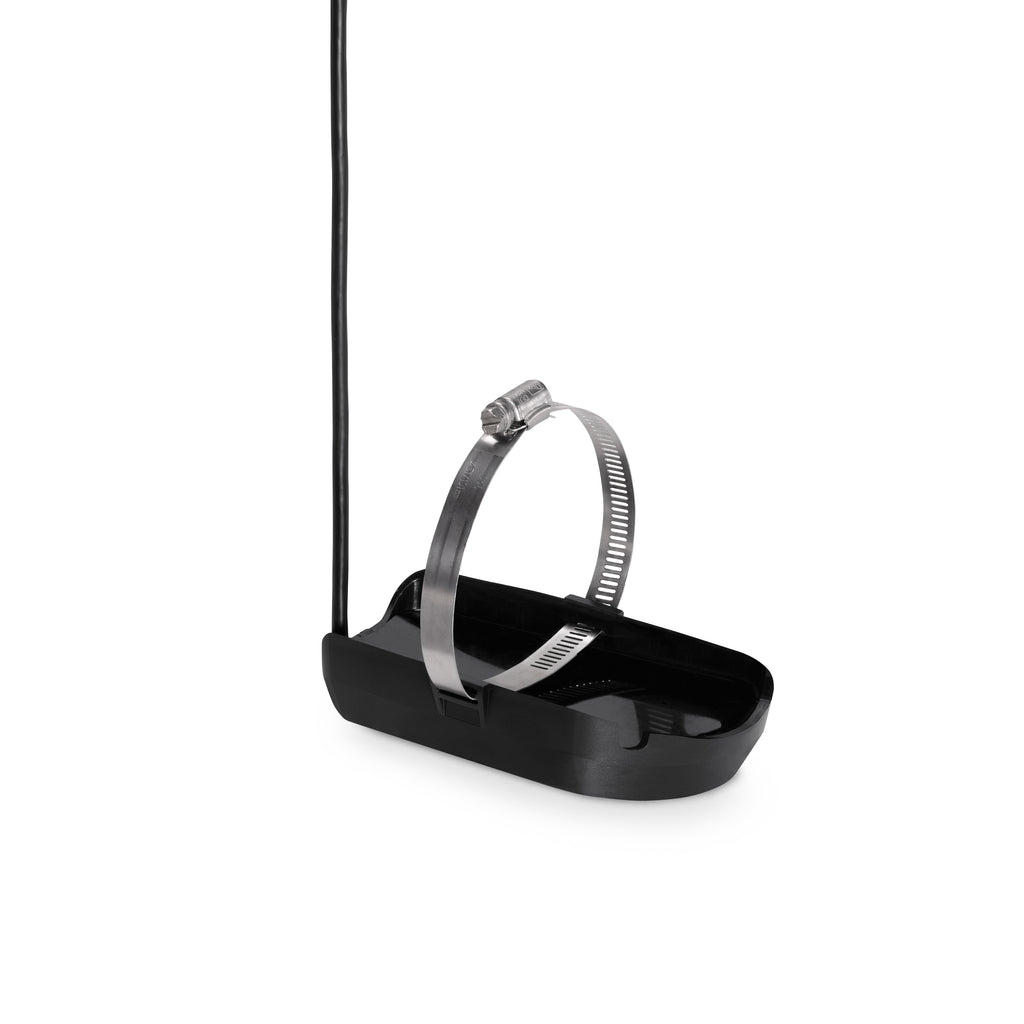

Upgrade your trolling motor sonar with the Humminbird XTM-9-HW-MSI-150-T Transducer W/Temp. Engineered for rugged use and loaded with MEGA Imaging power, this transducer unlocks crystal-clear side and down imaging plus dual-spectrum CHIRP for accurate fish finding at depth.
Key Features
-
MEGA Imaging dual-spectrum CHIRP 2D sonar: Delivers ultra-detailed imaging and precise target separation with Dual Spectrum CHIRP across multiple frequencies.
-
Compatible with: HELIX 7 and HELIX 8 CHIRP MEGA SI GPS G3/G3N units.
-
Mounted on a trolling motor: Provides stable, hands-free scanning while you maneuver.
-
CHIRP frequency ranges: Full 150-220 kHz, Narrow 180-240 kHz, Wide 140-200 kHz.
-
Max depth: Up to 1200 ft (365 m) for targeting deep structures.
-
MEGA Imaging details:
- Side Imaging: 455 kHz with 440-500 kHz tuning, up to 480 ft (146 m) range.
- MEGA Side Imaging (SI): 1075-1150 kHz, up to 250 ft (76 m).
- Down Imaging: 455 kHz with 440-500 kHz tuning, up to 125 ft (38 m).
- MEGA Down Imaging (DI): 1075-1150 kHz, up to 75 ft (23 m).
-
MEGA Imaging/455 kHz and Dual Spectrum CHIRP 2D sonar support: CHIRP range 150-220 kHz for versatile target detection.
-
Built-in temperature sensor: Real-time water temperature for smarter lure presentation and fish behavior decisions.
-
Rugged composite housing: Designed to withstand harsh fishing conditions.
-
Cable length: Includes a 20 ft cable for flexible installation.
-
Model: 710298-1
Maximize your boat’s sonar capability with this transducer, unlocking MEGA Imaging across sides and down, paired with precise CHIRP 2D sonar to locate fish fast, even at depth. Perfect for HELIX 7/8 setups and trolling motor mounting.
| Mount Type |
Trolling Motor |
| Sonar Type |
MEGA Imaging, Dual Spectrum |
| Current Models |
HELIX 7, HELIX 8 |
