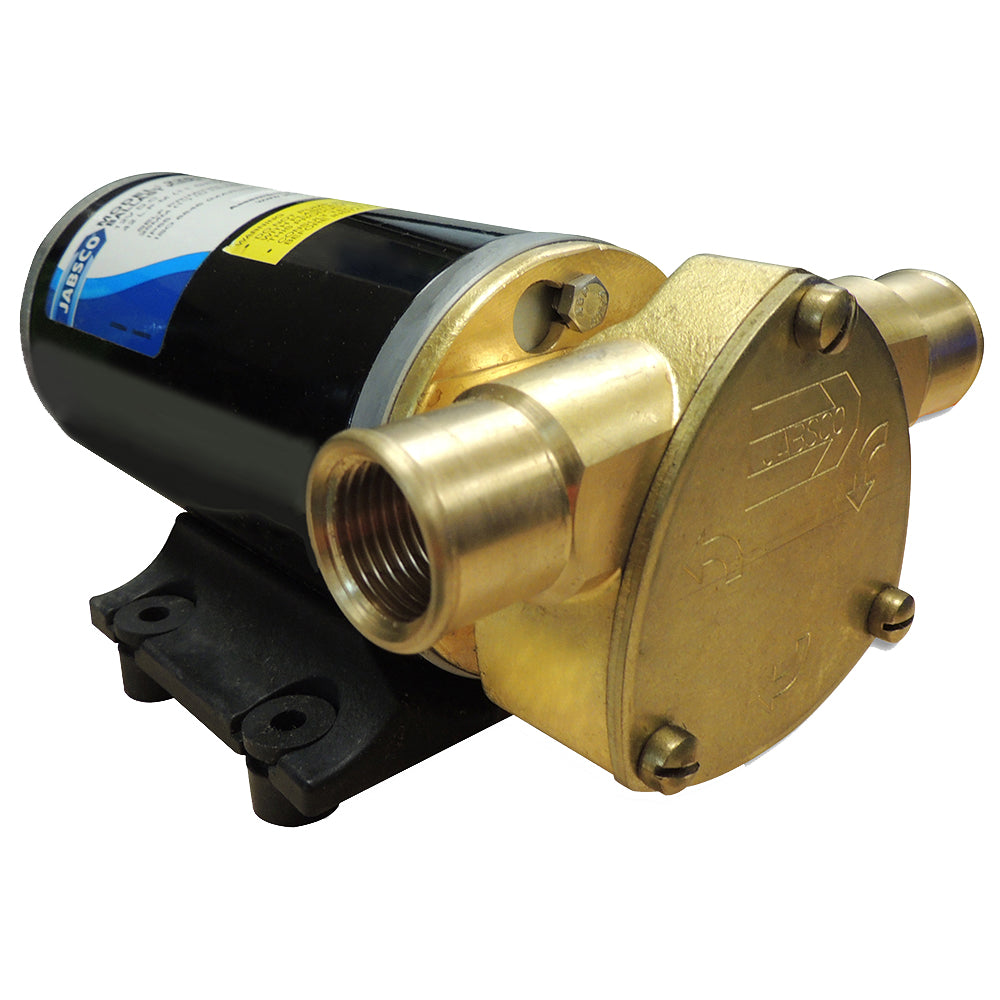

Power your wakeboard and ski boat with the Jabsco Ballast King Bronze DC Pump. Designed for fast ballast filling and reliable drainage, this rugged bronze pump combines marine-grade durability with a compact, easy-to-install design. Featuring a Deutsch connector and a versatile, reversible flow, it’s ready to optimize your ballast system with minimal wear parts and maximum reliability.
Key benefits include:
-
15 US GPM (57 L/min) for rapid ballast fill and quick tank operation
-
Self-priming from dry up to 1.2 m (4 ft) for dependable performance in challenging conditions
-
Reversible to fill and empty ballast tanks to simplify both loading and draining operations
-
Approximately 125 lbs (56 kg) of ballast added per minute to help you achieve optimal ride stability
-
Run-Dry Protection Device (patent pending) automatically shuts off the pump to protect the impeller if the tank is empty
-
ISO 8846 MARINE ignition protection for safer operation on the water
- Simple design with fewer wearing parts for long-term reliability
- 12 VDC operation, 19 A draw, with a 25 A fuse for robust performance
Applications
The Ballast King is engineered to pump water into Wakeboard Liquid Ballast Tanks and, when reversed, to pump water out. With a 15 GPM flow rate, most ballast tanks can be filled in about five minutes, delivering quick, consistent ballast adjustments for your ride.
Specifications
-
Body Material: Bronze
-
Impeller: Jabsco Neoprene compound
-
Seal: Lip Type
-
Ports: 1/2" internal pipe threads, 1" external hose barb
-
Voltage: 12 VDC
-
Amp Draw: 19 A
-
Fuse Size: 25 A
-
Motor Type: Equipped with Run-Dry Protection Device (Patent Pending)
-
Shaft: Fully enclosed stainless steel
-
Bearing: Ball Type Shaft Bearing
-
Reversible Duty Cycle: 30 minutes max
-
Dimensions: 3 5/8 x 8 x 4 3/4 inches
-
Manufacturer: Jabsco
-
Part No: 22610-9427
-
UPC: 671880841696
Upgrade your ballast system with the Ballast King Bronze DC Pump for a dependable, efficient, and compact solution that keeps your boat ready for peak performance on the water.
