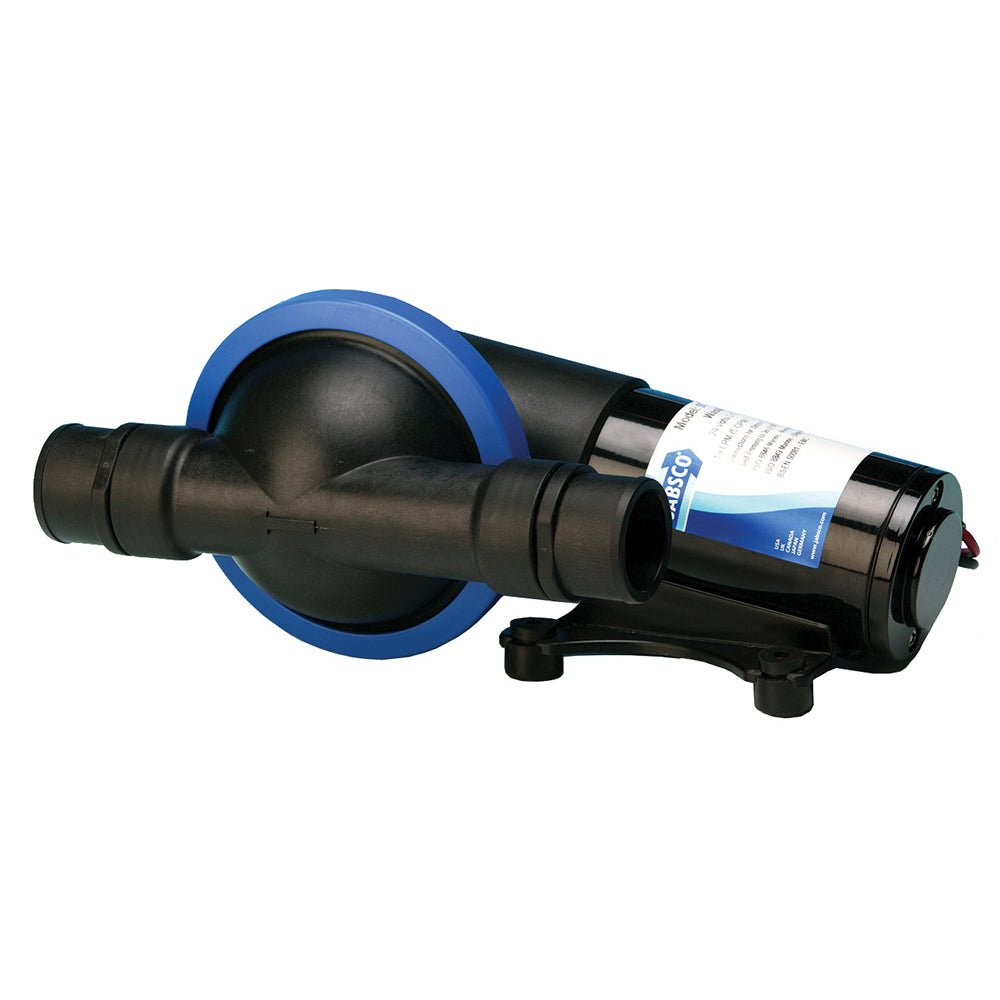

The Jabsco Filterless Waste Pump w/ Single Diaphragm—24V is a compact, reliable solution for marine and mobile waste systems, delivering low-maintenance pumping for sinks, showers, and black water applications.
-
Electrical requirements: 24V DC operation with a 5 A fuse and a maximum current draw of 2.5 A
-
Flow rate: Output up to 19 L/min (4.2 gal/min)
-
Discharge head: Max discharge head of 4 m (13 ft)
-
Hose connections: 38 mm (1½”) bore hose connections for versatile plumbing
-
Self-priming: Self-priming capability up to 3 m (9.5 ft)
-
Ports and mounting: Multi-positional ports for easy mounting and flexible installation; solid 1½” port sizing for better solids handling
-
Continuous operation: Continuous running capability up to 30 minutes
-
Safety and maintenance: Filterless diaphragm design minimizes wear and reduces maintenance time; mechanical parts are shrouded for safety
-
Applications: Suitable for sink, shower, and black water drainage
-
Dimensions and weight: 278 mm L × 161 mm W × 132 mm H; weight approximately 3.02 kg (3.52 kg packed)
Built to perform in tight spaces, the Jabsco 24V waste pump handles demanding daily use without fuss. The filterless diaphragm design reduces wear and simplifies maintenance, while its 3 m self-priming capability and 4 m discharge head accommodate challenging layouts. Flexible mounting options and 1½" port sizing make installation straightforward in boats and RVs, ensuring dependable wastewater movement for sink, shower, and black water needs.
