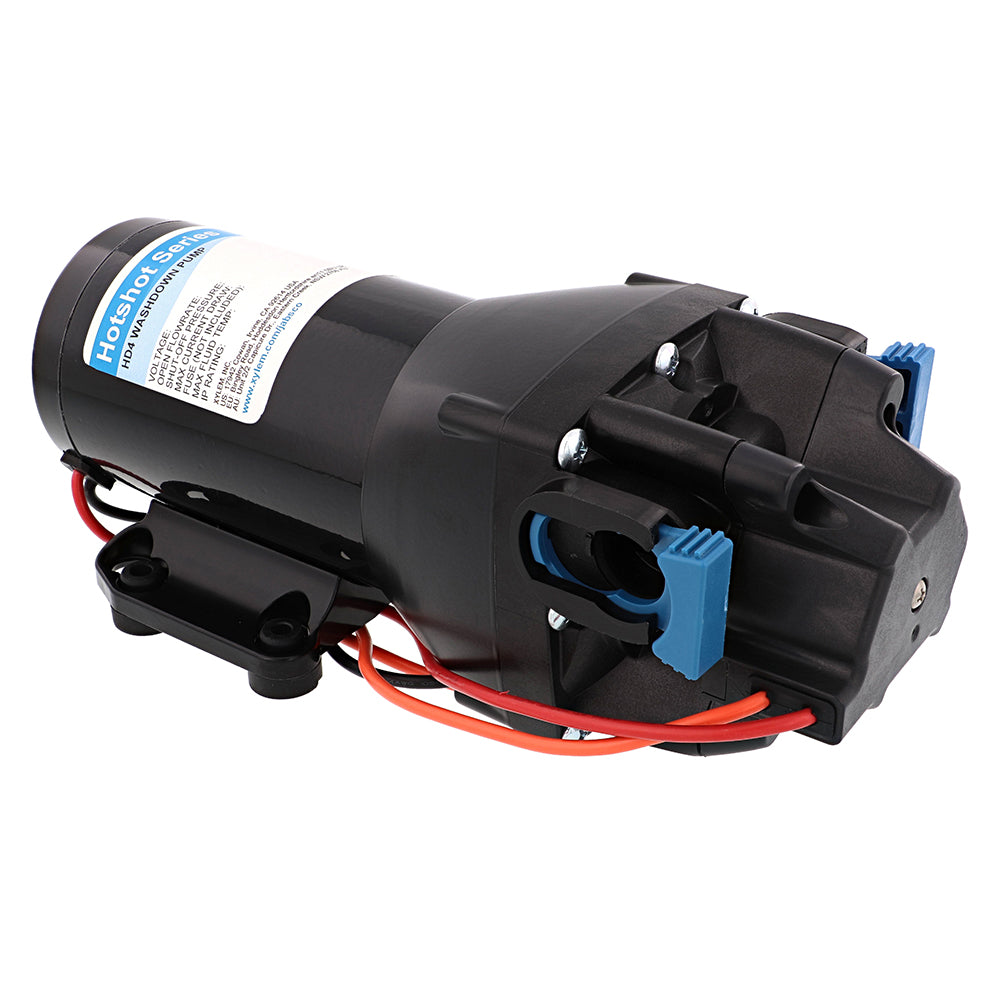

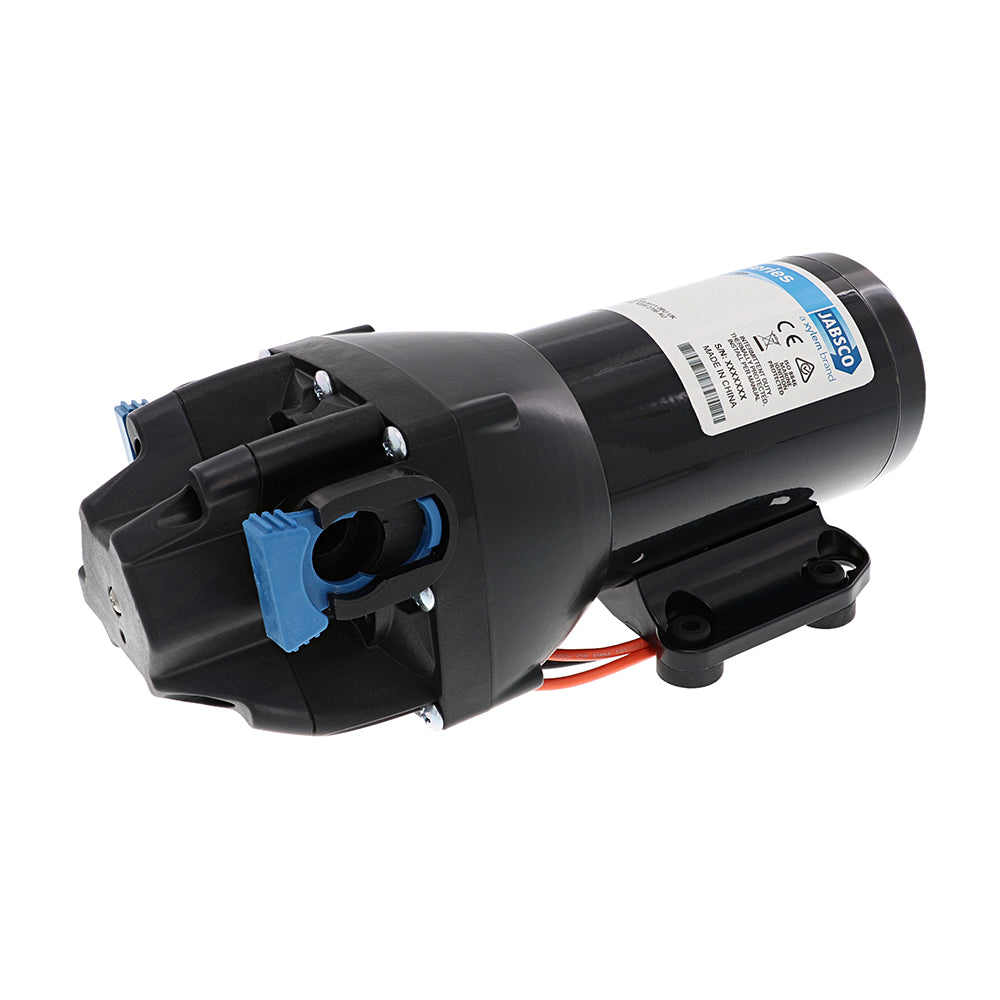

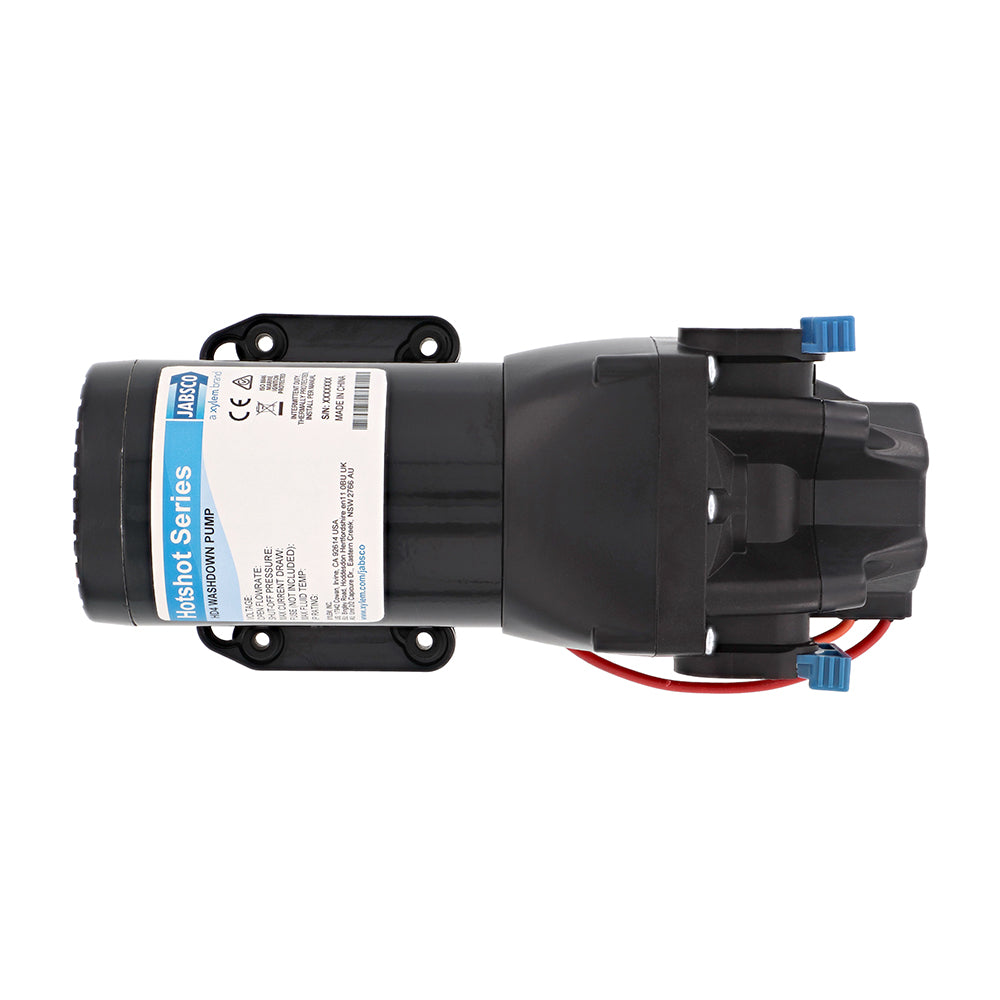

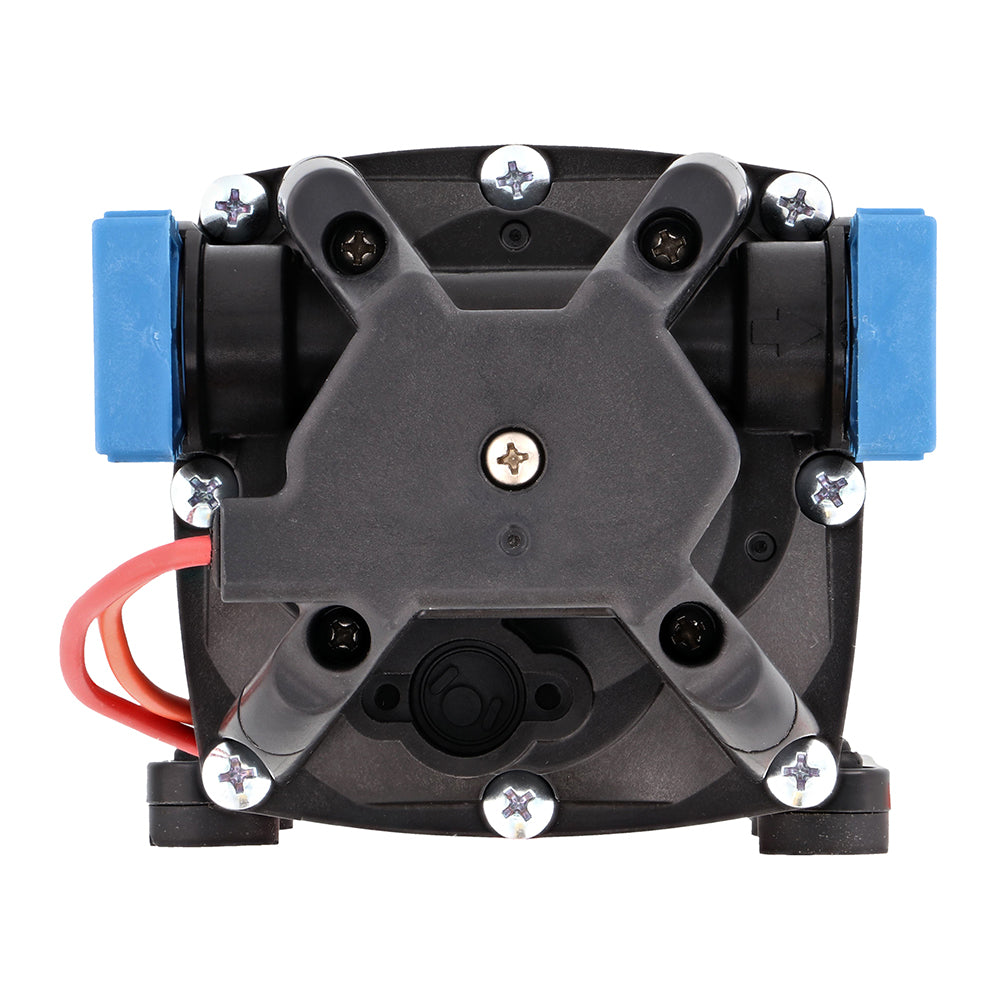

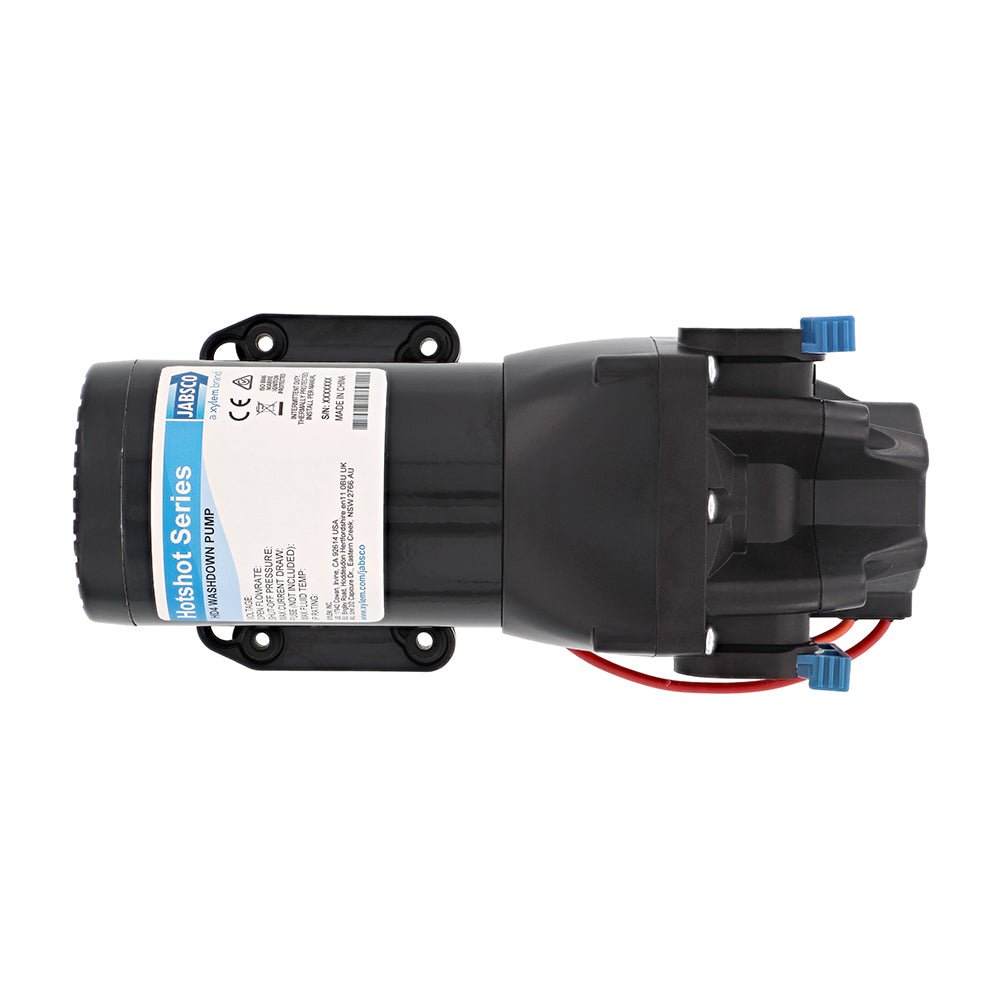

Jabsco HotShot HD4 Heavy Duty Washdown Pump - 12V - 4 GPM - 60 PSI

Jabsco HotShot HD4 Heavy Duty Washdown Pump - 12V - 4 GPM - 60 PSI is built for serious cleaning power with reliability you can count on. Designed to power decks, bilges, and work areas with high flow and high pressure, this pump delivers dependable performance when you need it most.

HD4 models are engineered for durability and long life. They feature a wider diameter motor with a powder-coated shell, cast aluminum endbells, and a lower housing to enhance pressure capability and overall longevity. A protective plastic housing guards against corrosion, while co-molded diaphragm technology provides outstanding durability under demanding washdown conditions.

• Heavy-duty construction: Wider motor, powder-coated shell, and aluminum lower housing for improved pressure capability and lifespan.
• Co-molded diaphragm: Delivers long life and reliable performance in tough washdown environments.
• On-demand operation: Integrated, sealed pressure switch enables efficient, quiet use.
• Self-priming and versatile: Self-priming design allows flexible installation; can run dry without damage.
• Easy installation: Quick-connect ports for fast hookup, servicing, and maintenance; vibration-dampening mounting feet reduce noise and movement.
• Kit options: Full kits available, including a 25' HoseCoil for turnkey setup.

Specifications

• Motor design: Brushed, permanent magnet TENV
• Pumphead material: Glass fiber reinforced polypropylene
• Diaphragm: Co-molded TPV
• Check valves: EPDM
• Max inlet pressure: 30 PSI (2.1 Bar)
• Fluid temperature range: 32°F – 140°F (0°C – 60°C)
• Dry self-priming capability: 7 ft min (2.1 m)
• Ingress protection: IPX6
• Certifications: CE, ISO8846, RCM

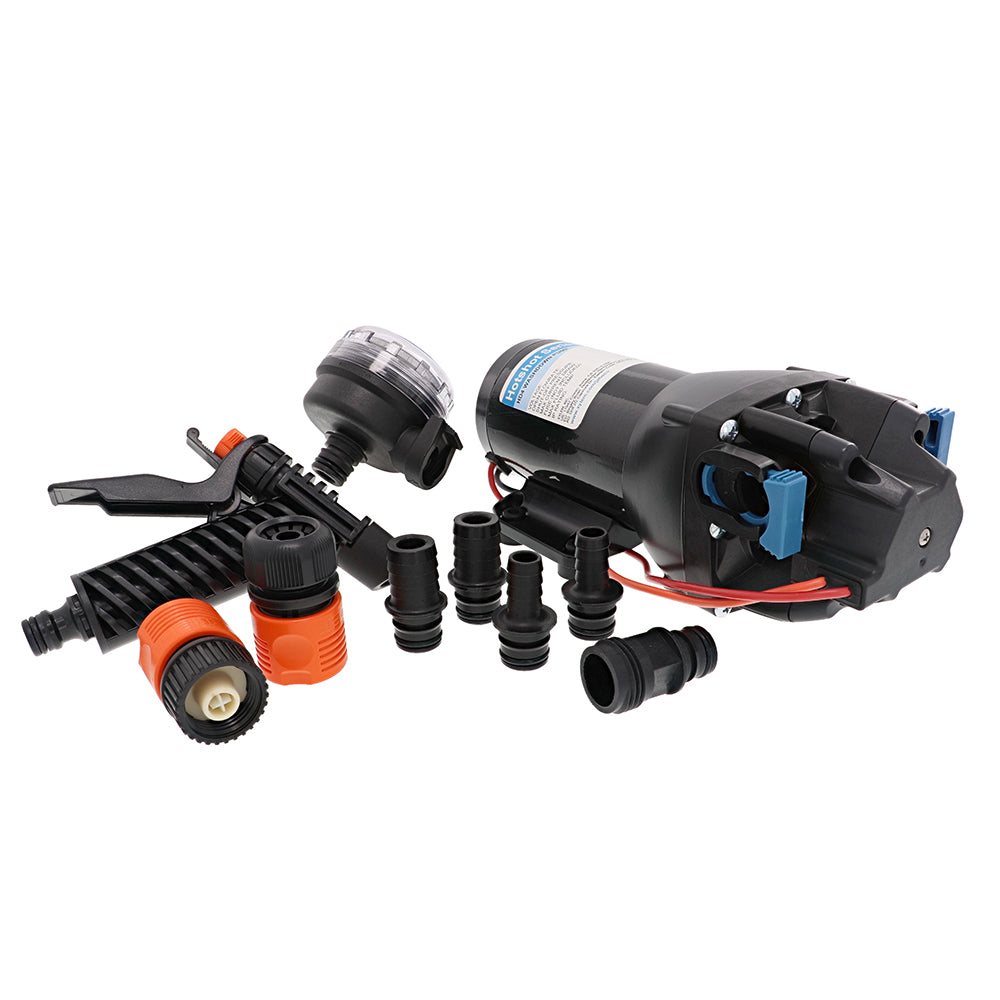

• Fittings & Accessories: Quick Connect straight hosebarb and GHT fittings. Size varies by model. 90°, 20 mesh Quick Connect strainers; trigger nozzle & Quick Connect hose adapters
• Kit version: Includes 25' HoseCoil

Note: This product carries a Prop 65 warning. WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
