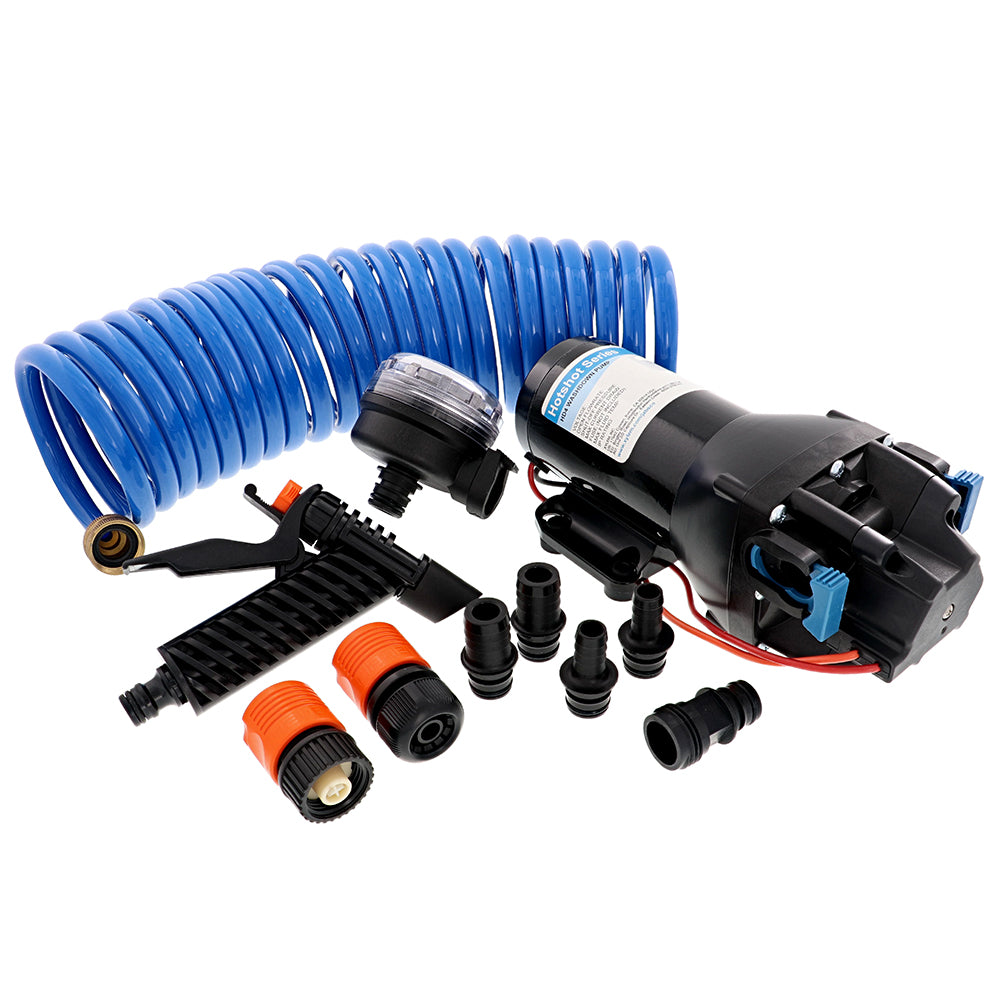

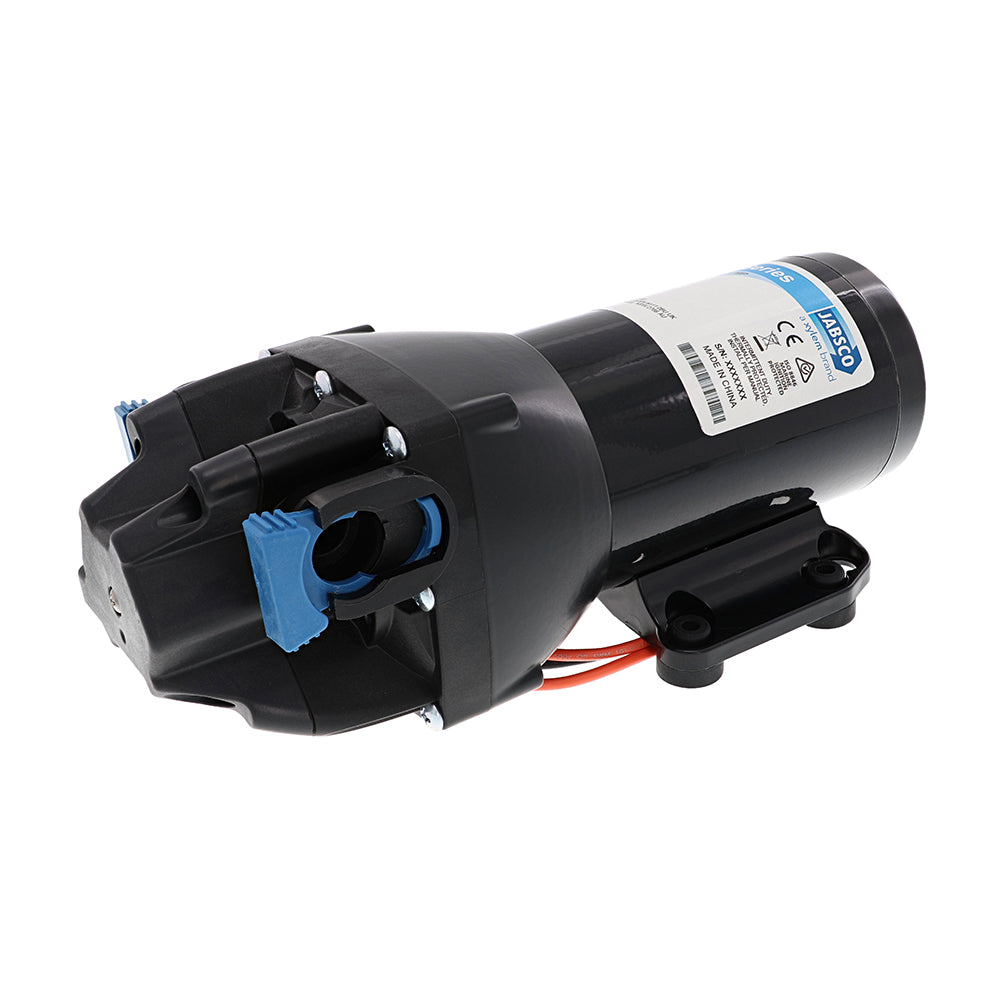

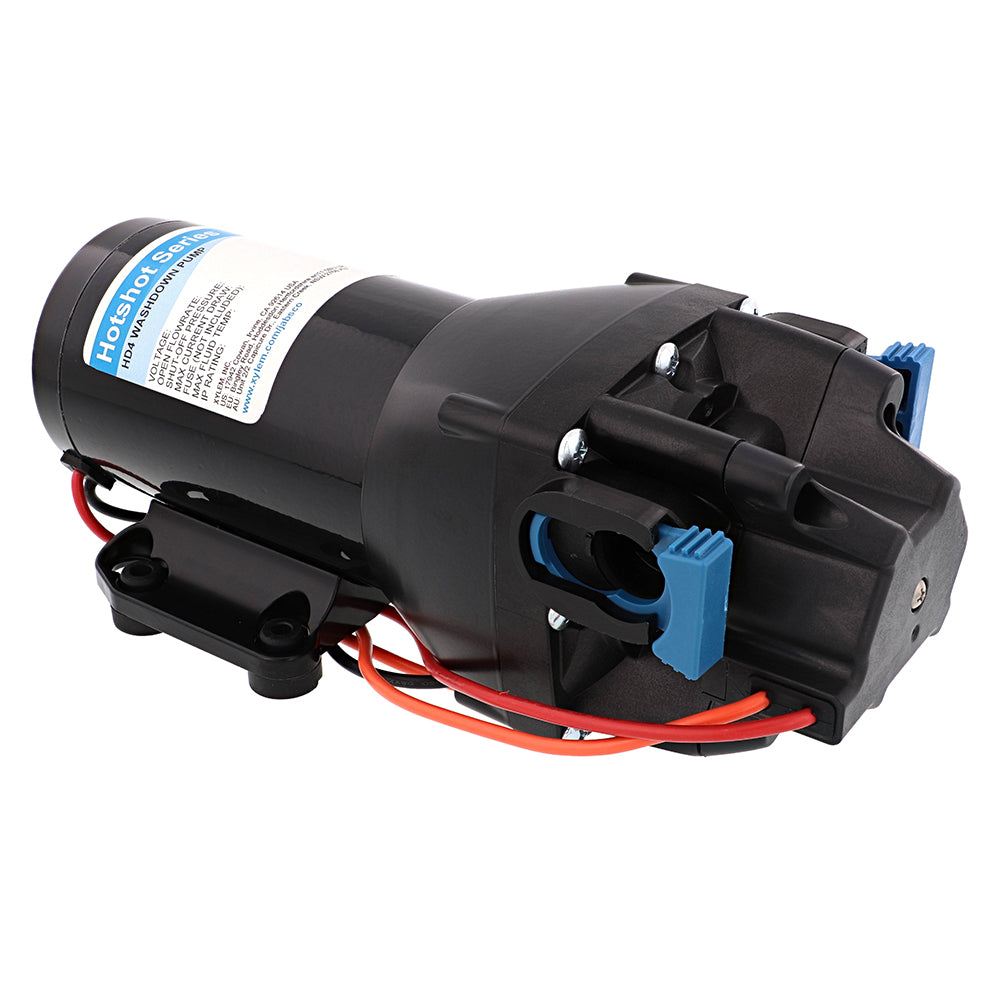

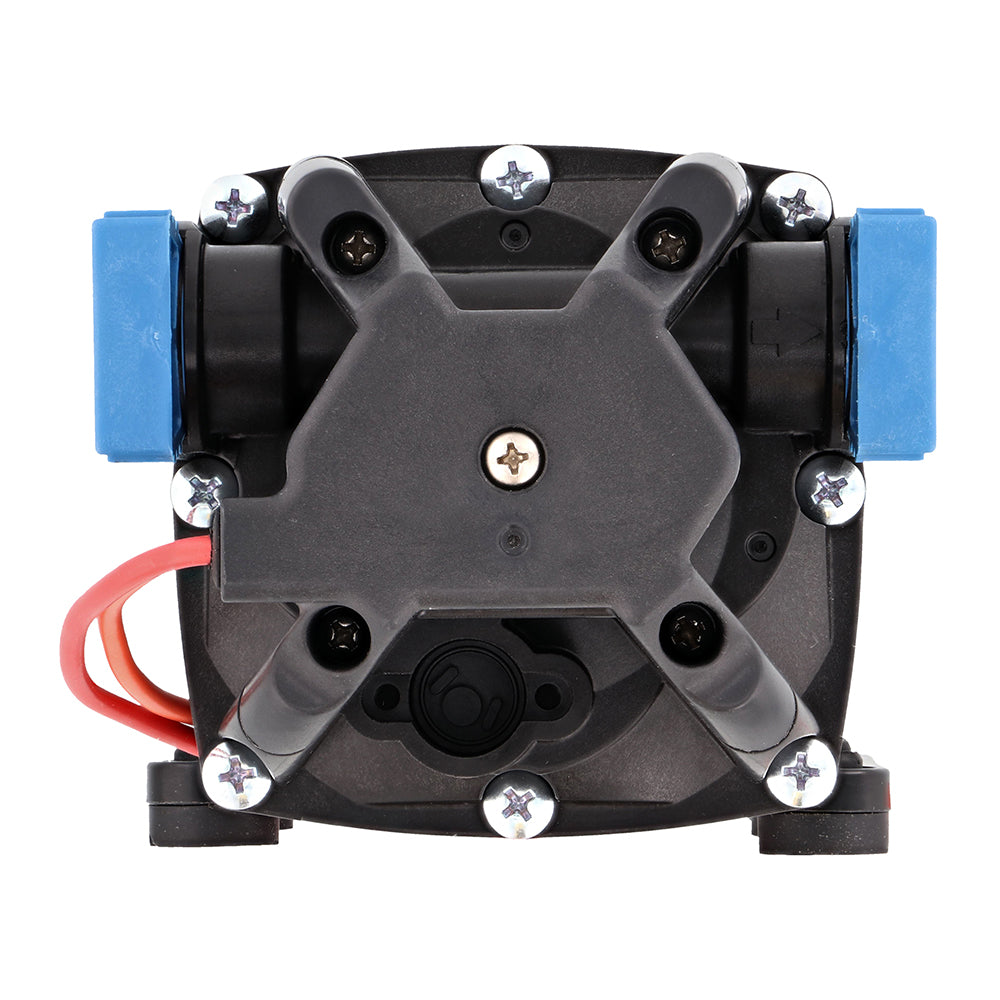

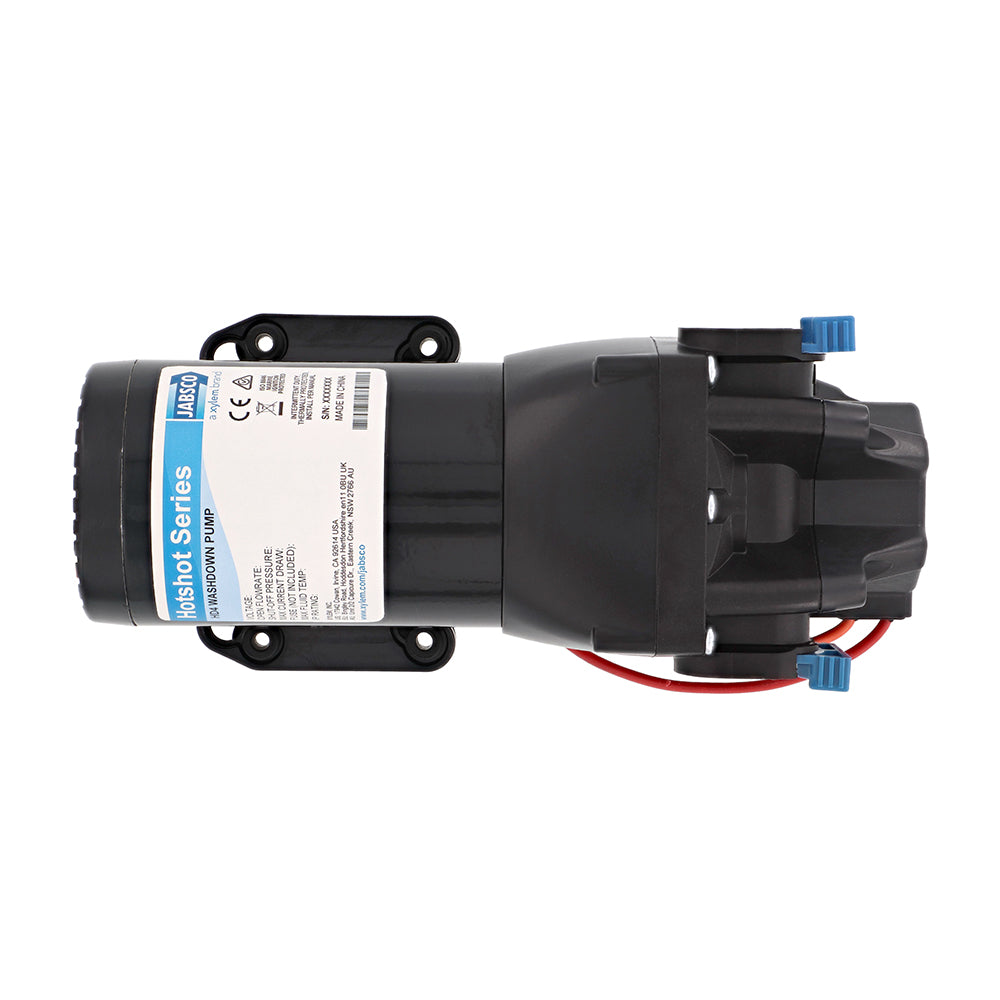

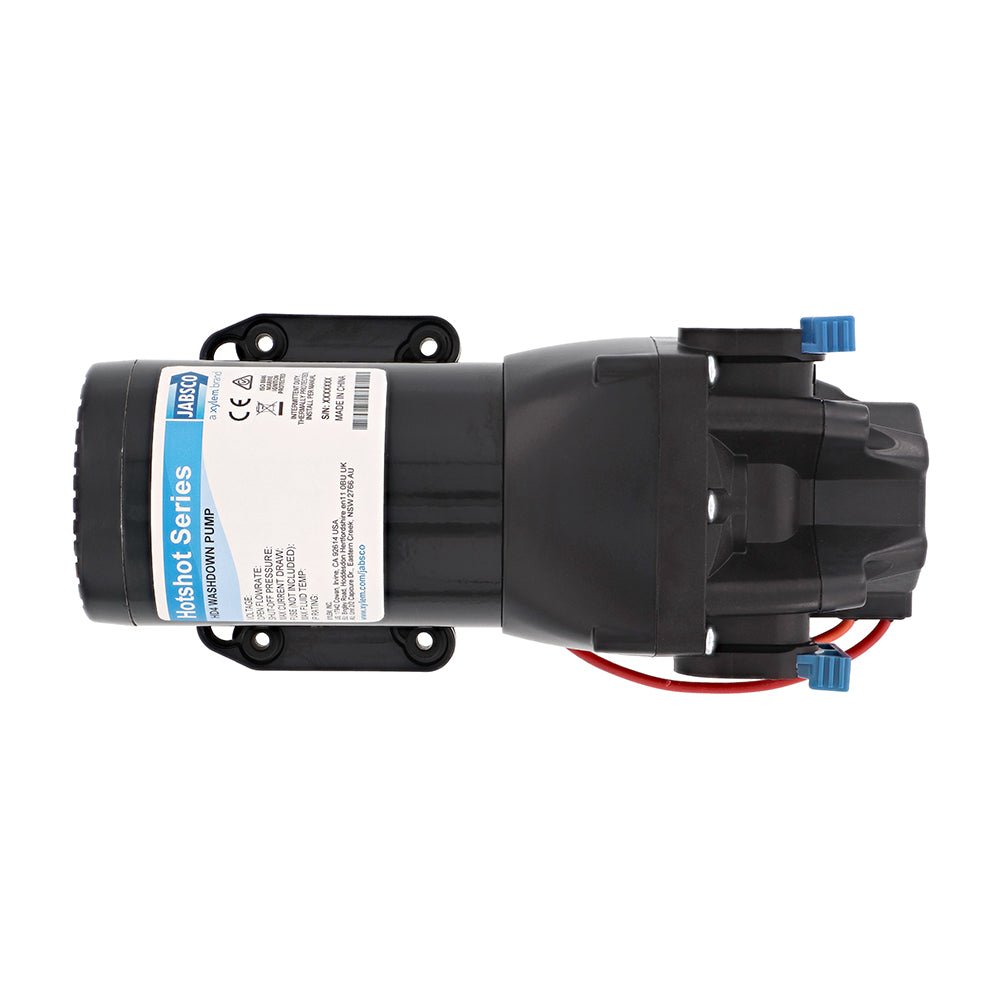

Jabsco HotShot HD4 Heavy Duty Washdown Pump with 25' HoseCoil — a rugged, 12V, high-flow washdown solution delivering 4 GPM at up to 60 PSI, built to stand up to demanding decks and marine environments. Embrace long-lasting performance with co-molded diaphragm technology and a heavy-duty motor that remains powerful at high pressures.
Why HotShot HD4 stands out
-
Heavy-duty build: Wider-diameter motor with a powder-coated shell, cast aluminum endbells and lower housing for improved pressure capability and durability.
-
Co-molded diaphragm for long life and reliability in demanding washdowns.
-
Integrated pressure switch for on-demand operation and reduced water waste.
-
Self-priming: Supports versatile installation with up to 7 ft dry priming capability.
-
Dry-run tolerant: Can operate without damage if run briefly without water.
-
Easy installation: Quick-connect straight hosebarb and GHT fittings simplify setup and maintenance.
-
Quiet, efficient: Efficient operation with vibration-dampening mounting feet.
-
IPX6 sealed and corrosion-protected housing for marine-grade reliability.
-
Kit version includes 25' HoseCoil for immediate reach and convenience (25 ft coil is included with the kit).
Specifications
-
Motor design: Brushed, permanent magnet TENV
-
Pumphead upper housing: Glass fiber reinforced polypropylene
-
Diaphragm: Co-molded TPV
-
Check valves: EPDM
-
Max inlet pressure: 30 PSI (2.1 Bar)
-
Fluid temperature: 32°F – 140°F (0°C – 60°C)
-
Dry self-priming: 7 ft min (2.1 m min)
-
Ingress protection: IPX6
-
Certifications: CE, ISO8846, RCM
-
Fittings & Accessories: Quick Connect straight hosebarb and GHT fittings (size varies by model). 90° 20 mesh Quick Connect straine
-
Kit contents: 25' HoseCoil (included in kit version)
-
Power: 12V DC
-
Performance: 4 GPM at 60 PSI
Applications: Designed for reliable deck cleaning, washdowns on boats, docks, trailers, and other wet environments where power, durability, and on-demand operation matter.
