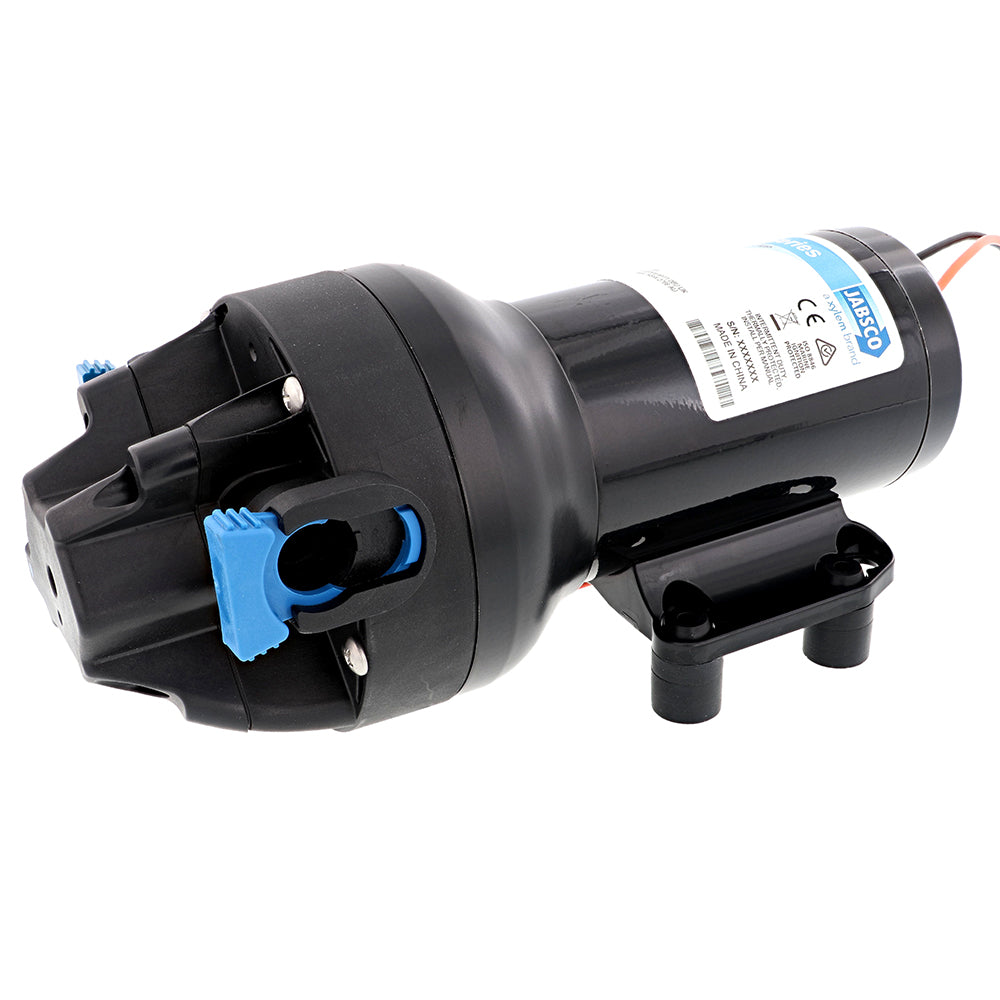

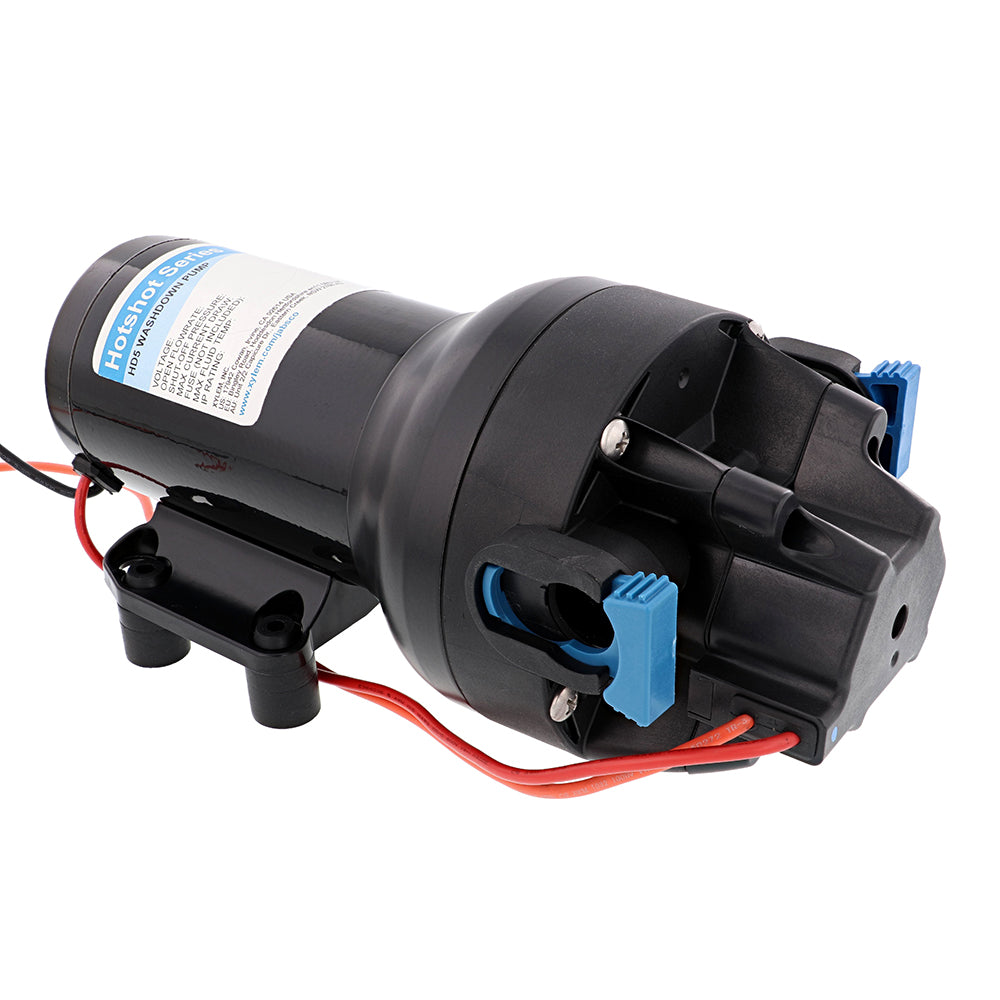

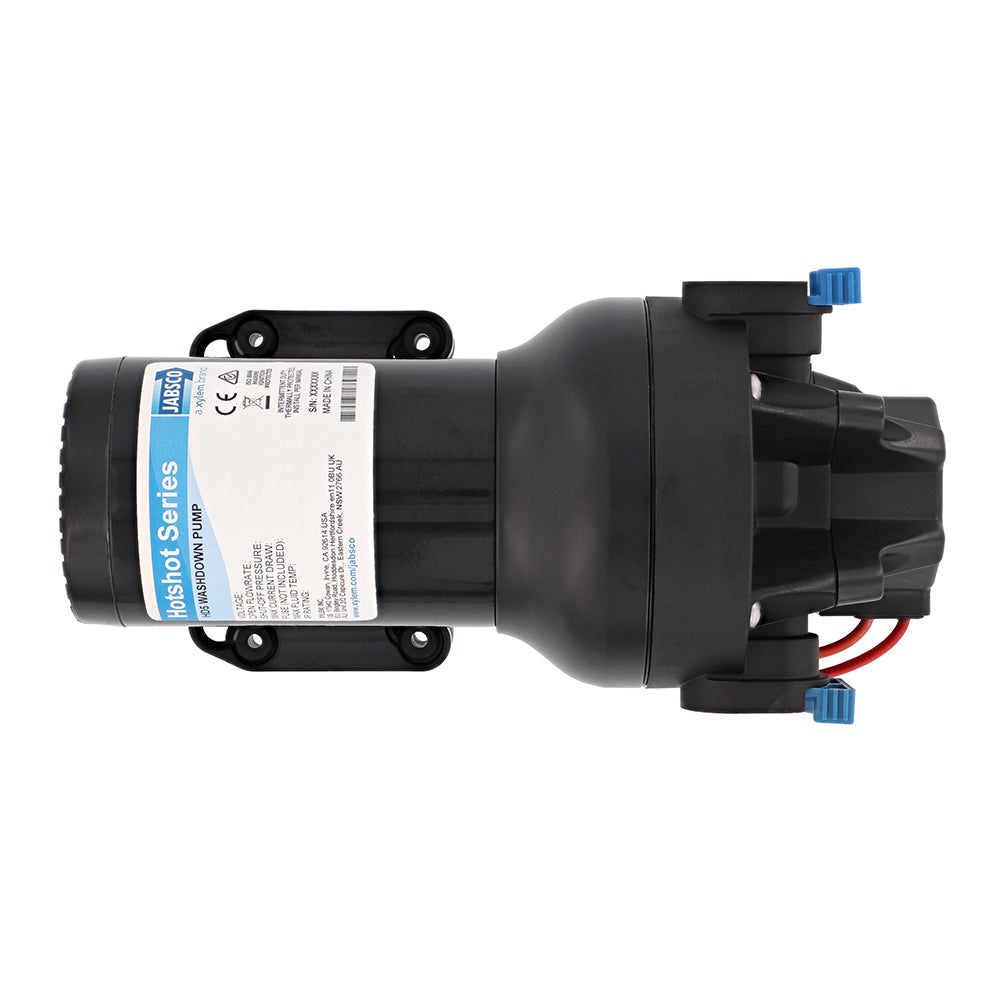

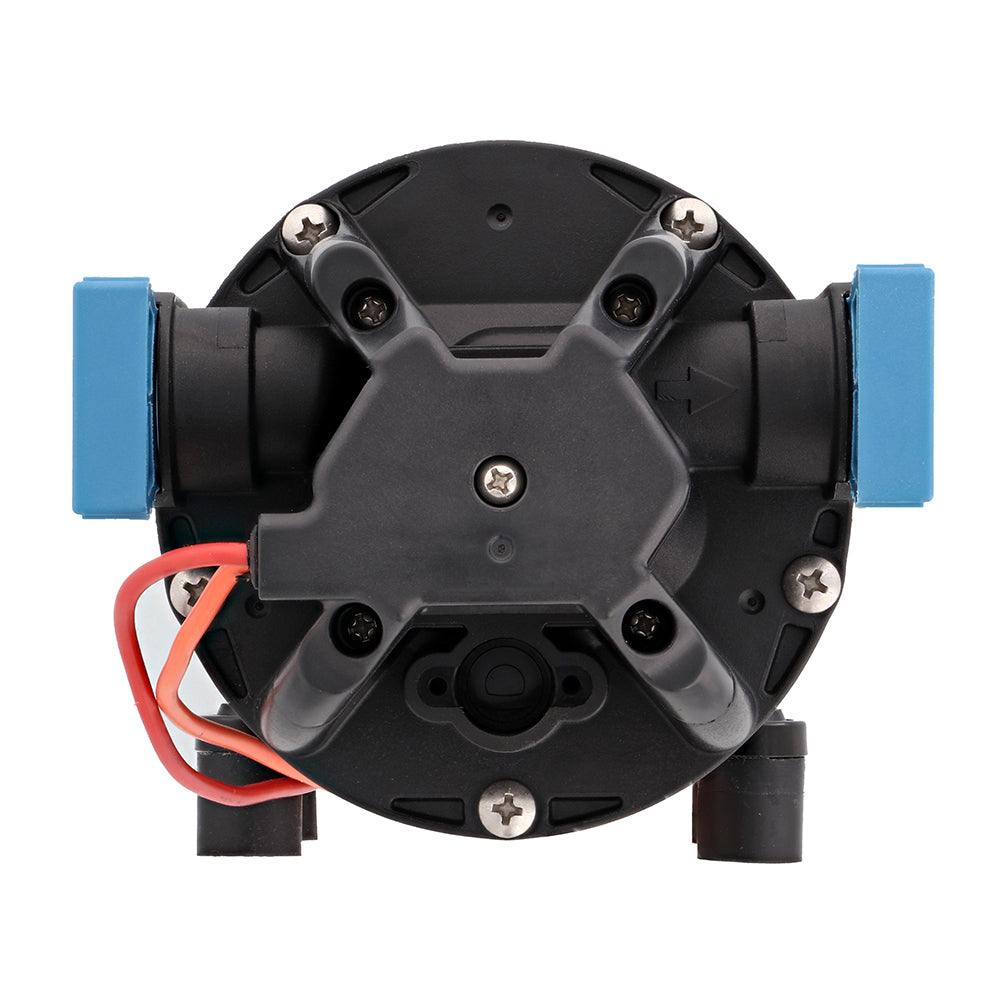

Meet the Jabsco HotShot HD5 Heavy Duty Washdown Pump—a rugged 12V solution designed for relentless decks and heavy-duty cleaning. With 5 GPM at 70 PSI, it powers through grime quickly while standing up to harsh marine conditions.
-
High-flow, high-pressure performance: 5 GPM at 70 PSI for thorough cleaning and fast results.
-
Rugged HD construction: Wider diameter motor with a powder-coated shell; cast aluminum endbells and lower housing to boost pressure capability and longevity; corrosion-protective plastic shell.
-
Durable diaphragm technology: Co-molded TPV diaphragm for long life and durability.
-
On-demand operation: Integrated sealed pressure switch activates spray only when needed, conserving water and power.
-
Self-priming and flexible mounting: Self-priming to 7 ft (2.1 m); runs dry without damage; vibration-dampening feet reduce movement and noise.
-

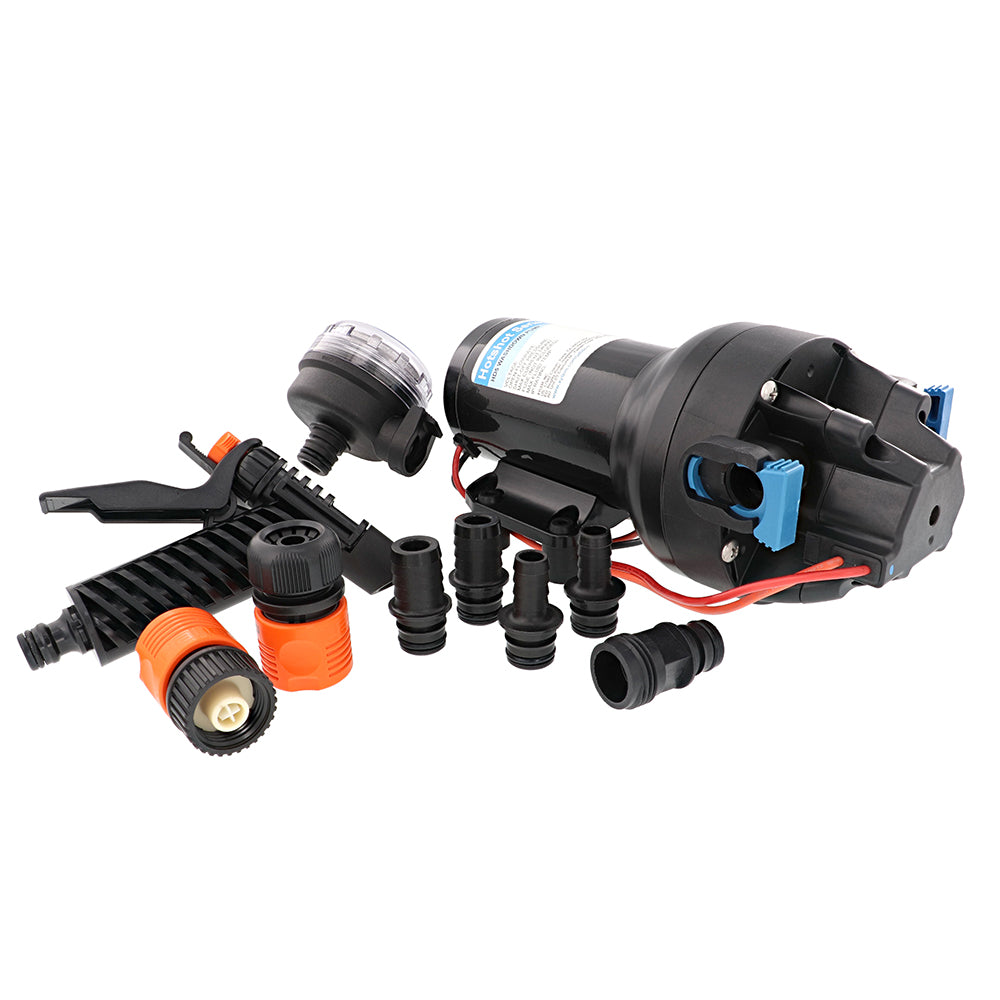

Easy installation and versatile fittings: Quick-connect straight hose barb and GHT fittings; 90° 20-mesh strainer; trigger nozzle and hose adapters.
-
Protection and reliability: IPX6 protection; EPDM check valves; robust marine-ready design.
-
Materials and motor: Pumphead: glass fiber reinforced polypropylene; Motor: brushed, permanent magnet TENV.
-
Kit options: Full kit versions available with a 25 ft (7.6 m) hose coil; hose-only versions without hose are offered.
-
Certifications: CE, ISO8846, RCM.
-
Key specifications: Max inlet pressure 30 PSI (2.1 Bar); Fluid temperature range 32°F – 140°F (0°C – 60°C).
-
Applications: Ideal for deck cleanup on boats, wash-downs at remote sites, and other demanding cleaning tasks.
-
Prop 65 Warning: California Prop 65 warning applies to this product.
This washdown pump is designed to save water and power with on-demand operation, while its rugged construction and marine-ready components deliver reliable performance under demanding cleaning tasks. Its self-priming capability, flexible mounting options, and included fittings simplify installation, making it a practical choice for boaters and remote cleaning needs.
