Meet the Jabsco HotShot HD5 Heavy Duty Washdown Pump Kit with 25' HoseCoil — a rugged, high-flow 12V solution designed for decks, bilges, and rinse tasks. Delivering 5 GPM at up to 70 PSI, this kit powers fast, effective washdowns with reliability you can trust on demanding boats, RVs, and work sites.
The HD5 line represents a thoughtful upgrade in durability and performance. A wider diameter motor with a powder-coated shell, cast aluminum endbells, and a lower housing maximize pressure capability and longevity, while a corrosion-resistant plastic housing protects the motor for years of use. Co-molded diaphragm technology adds long-life durability, ensuring consistent performance under heavy washdown duty.
-
Heavy-duty performance — 5 GPM at 70 PSI with a robust diaphragm pump designed for demanding washdowns.
-
Durable construction — HD motor with cast aluminum lower housing, powder-coated shell, and corrosion-resistant housing for extended life.
-
Quiet, efficient operation — optimized design delivers strong flow with smooth, low-noise running.
-
On-demand water — integrated, sealed pressure switch enables reliable on/off operation as you spray.
-
Versatile and reliable — self-priming for flexible installation; can run dry without damage; IPX6 protection for rugged environments.
-
Fast setup and maintenance — quick-connect ports simplify installation, servicing, and repeated use.
-

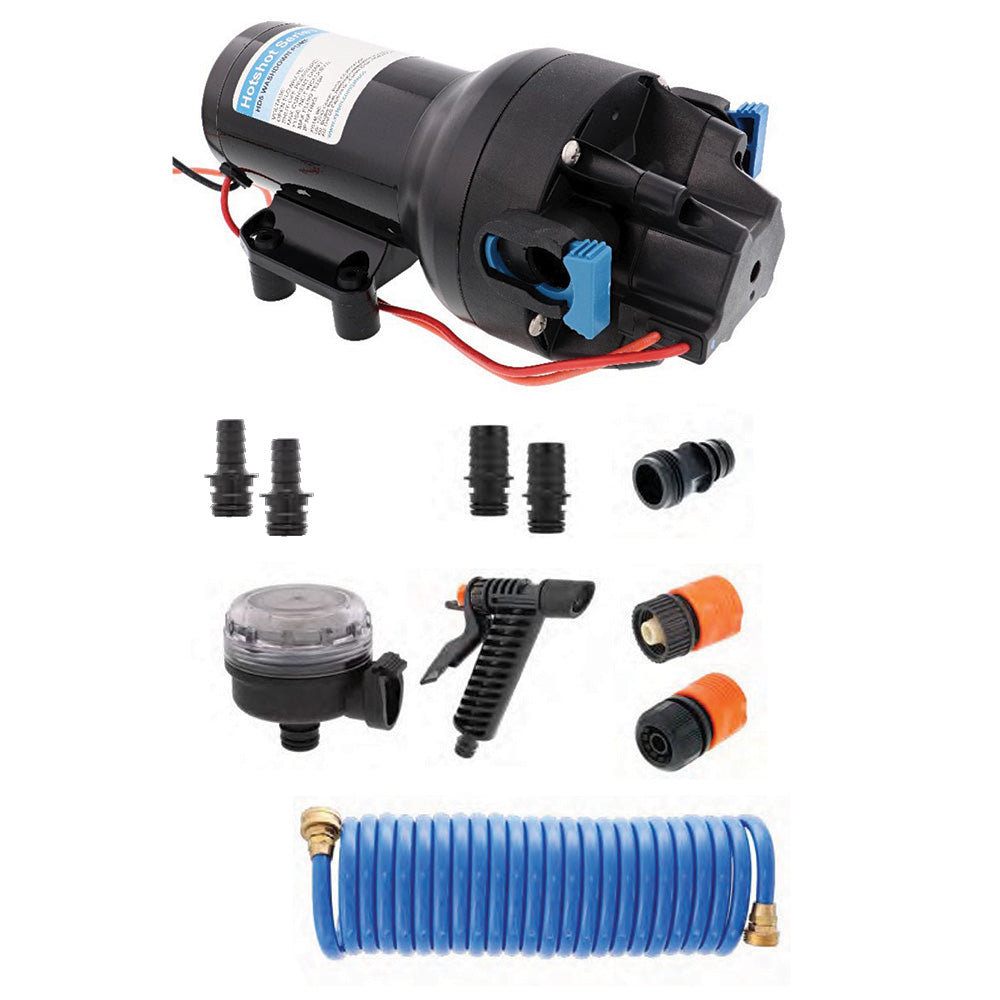

Complete kit — includes a 25' HoseCoil (7.6 m) for extended reach, plus quick-connect hose adapters and a strainer.
-
Built to endure — corrosion-protective plastic housing and vibration-dampening feet keep performance steady on rough decks.
Specifications
-
Motor design: Brushed, permanent magnet TENV
-
Pumphead upper housing: Glass fiber reinforced polypropylene
-
Diaphragm: Co-molded TPV
-
Check valves: EPDM
-
Max inlet pressure: 30 psi (2.1 bar)
-
Fluid temperature range: 32°F – 140°F (0°C – 60°C)
-
Dry self-priming capability: 7 ft min (2.1 m)
-
Ingress protection: IPX6
-
Certifications: CE, ISO8846, RCM
-
Fittings & accessories: Quick Connect straight hose barb and GHT fittings; 90° 20 mesh Quick Connect strainer; trigger nozzle & Quick Connect hose adapters
-
Included: 25' HoseCoil
-
Manufacturer: Jabsco • Part No: P501J-119N-4A • UPC: 671880594868
Upgrade your washdown capability with the HotShot HD5 kit and enjoy dependable, high-pressure cleaning whenever you need it.
