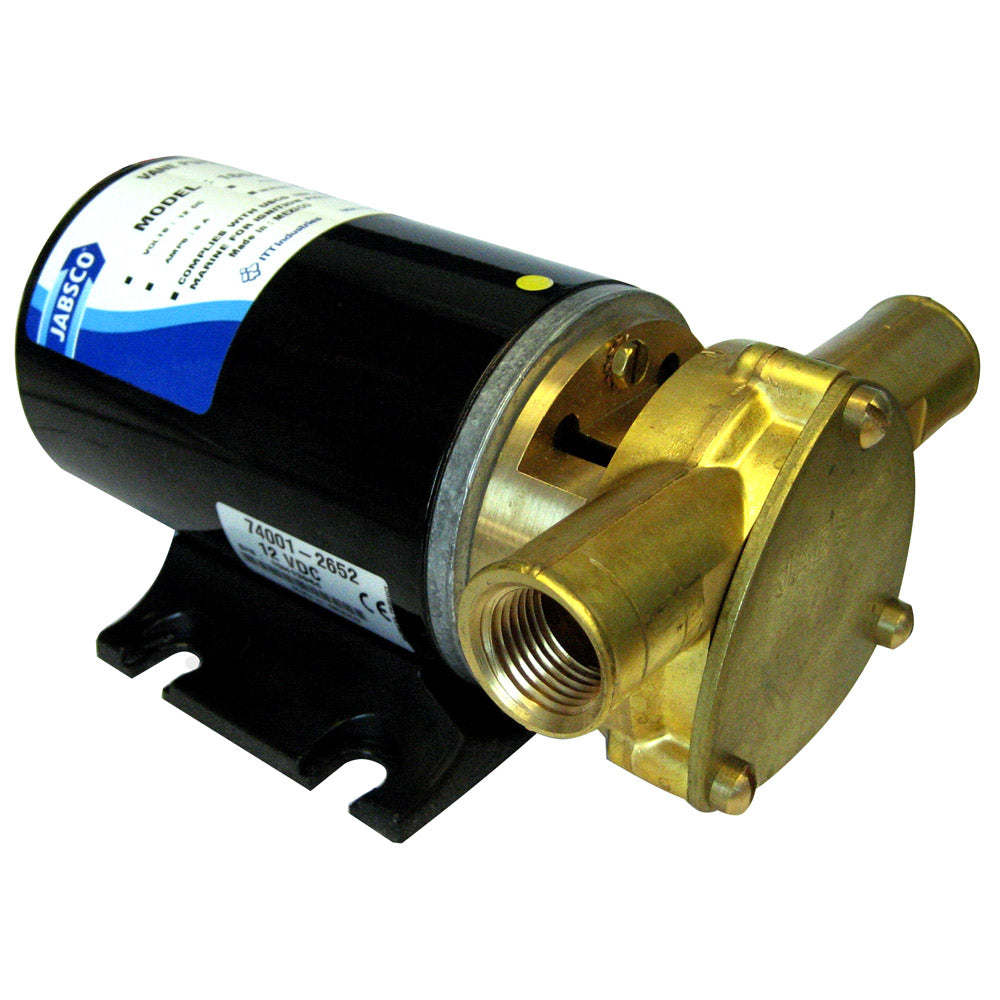

The Jabsco Light Duty Vane Transfer Pump - 12V is a compact, reliable diesel transfer pump built for quick, clean fueling at the dock, on a boat, or from portable tanks. It features a 12V DC motor with marine ignition protection for safe use in marine fueling environments.
-
Flow Rate: 6 US gal/min for fast diesel transfers
-
Self-Priming: Self-priming from dry up to 3 ft for easy startup after tank changes
-
Discharge Head: Can pump against a discharge head up to 20 ft, maintaining fuel flow with elevation or line resistance
-
Motor & Protection: 12V DC motor with marine ignition protection (USCG 183.410 & ISO8846)
-
Installation & Ports: Head may be mounted at 90° increments; Ports: 1/2" NPT Female or 1" Hose Barb
-
Duty & Application: Designed for intermittent duty with a permanent magnet motor; ideal for diesel fuel transfer and compatible with standard fittings
-
Prop 65 Warning: This product carries a Prop 65 warning regarding lead content
This pump is designed to deliver dependable diesel transfers with minimal fuss. Its self-priming capability simplifies startup after tank changes, while the ability to pump against a 20 ft discharge head helps maintain consistent flow across different mounting heights and hose configurations. The combination of a compact profile, flexible mounting options, and standard port sizes makes it straightforward to install in boats, docksides, or portable fueling setups, ensuring you can refuel efficiently and safely.
