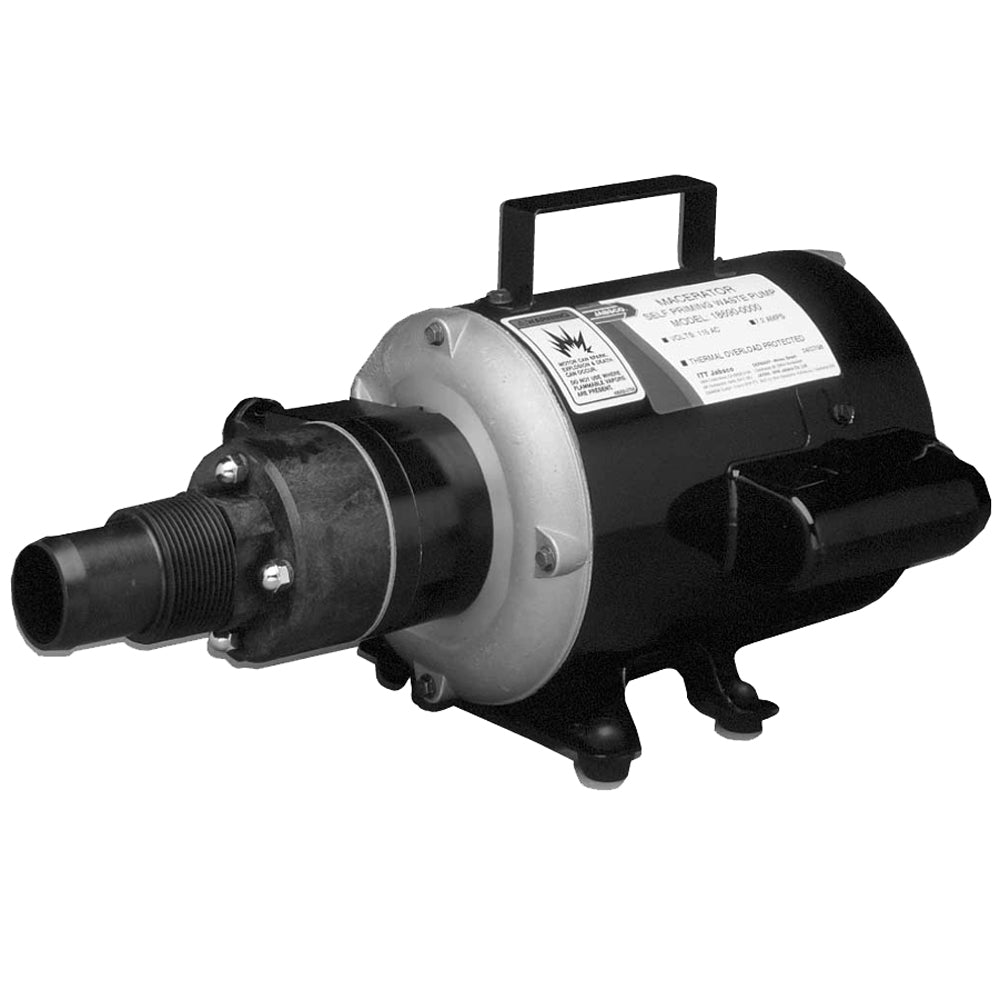

The Jabsco 115V AC macerator pump is a compact, reliable waste-handling solution for marine heads, RVs, and domestic setups. It grinds waste to a fine 1/8-inch particle size for efficient pumping through a 1-inch discharge line, helping you manage holding tanks quickly and cleanly.
-
Maceration capability: Grinds waste down to 1/8 inch to enable efficient pumping through a 1-inch discharge line.
-
Self-priming and mounting flexibility: Self-priming design allows installation above or below the tank; position near the waste source for optimal efficiency.
-
Performance: Empties a 30-gallon holding tank in about 3 minutes.
-
Inlet/Outlet sizing: Inlet: 1-1/2" external pipe thread; Outlet: 1" ID hose barb.
-
Electrical specifications: 115 VAC, single-phase AC induction motor with 60 Hz operation and thermal overload protection.
-
Construction: Impeller made of nitrile; macerator component crafted in cast bronze; cutter plate reduces waste to 1/8 inch.
-
Compatibility and limitations: Ideal for marine head systems, RV waste setups, or domestic waste handling; WILL NOT HANDLE HARD SOLID OBJECTS, SANITARY NAPKINS OR RAGS.
-
Weight: 7.7 kg / 17 lb.
-
Applications: Designed to deliver reliable grinding and pumping performance in compact spaces, suitable for installations in boats, campers, and homes.
-
Prop 65 notice: Safety notice regarding nickel content (Prop 65).
By turning waste into a fine, pump-ready slurry and using a 1-inch discharge line, the unit helps prevent clogs and speeds tank turnover, making waste handling more straightforward. The self-priming design and flexible mounting simplify installation in tight spaces, while robust components such as the nitrile impeller and cast bronze macerator provide reliable performance in marine, RV, or domestic environments.
