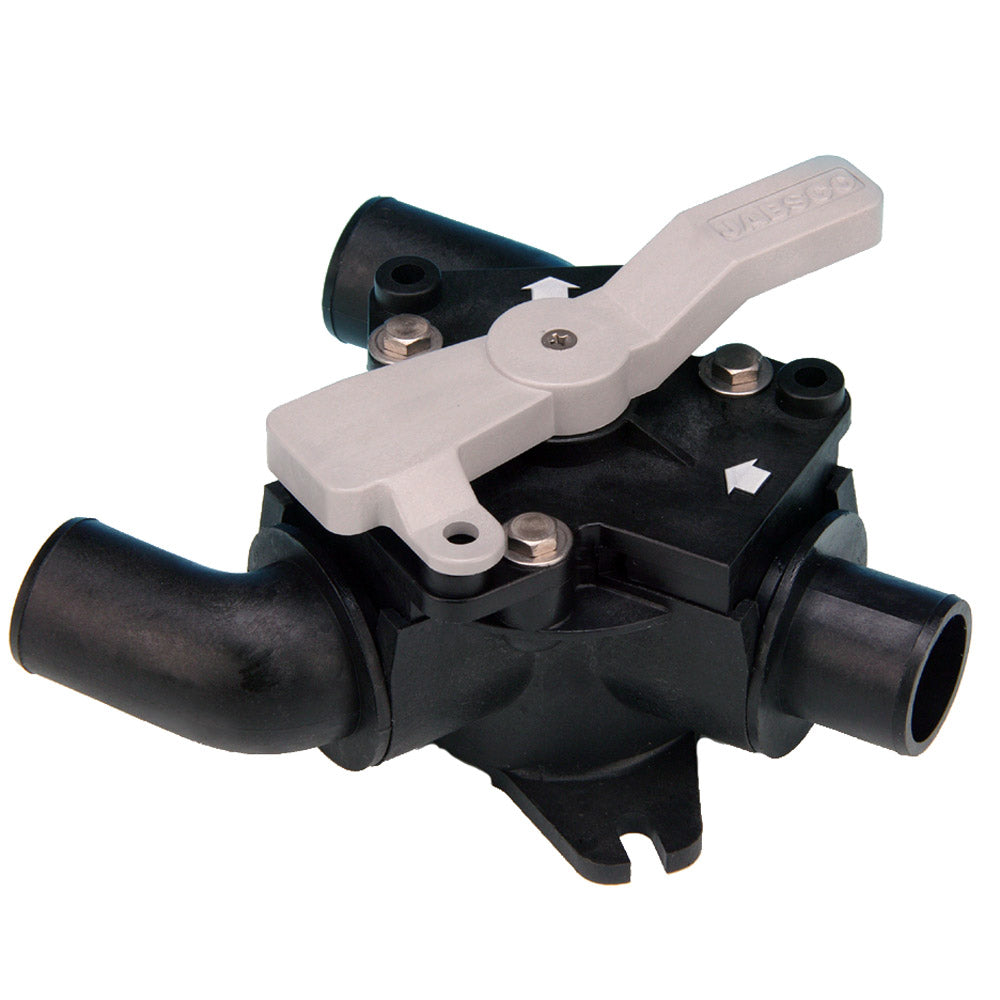

The Jabsco Y-Valve is a versatile marine waste-management valve designed for boats of all sizes, offering flexible routing to keep waste handling compliant and straightforward.
-
Flexible waste routing: Direct waste to an onboard holding tank, to an onboard discharge pump, or to a shoreside pump-out facility for adaptable plumbing layouts.
-
Regulatory compatibility: Supports compliant waste management in no-discharge zones and areas with restricted discharges, helping you navigate maritime regulations.
-
Padlock-ready selector: The selector lever can be padlocked (lock not included) and/or sealed in either position to ensure waste goes where you intend.
-
Rotatable ports: Ports can be rotated to route discharge plumbing in parallel, 90 degrees, or in opposite directions, or either up or down without disassembly.
-
Ports and sizes: Supplied with two 1-1/2" (38 mm) ports (fitted) and an extra 1" (25 mm) straight inlet port for added flexibility.
-
Materials: Chemical- and corrosion-resistant polypropylene and stainless steel construction designed for harsh marine environments.
-
Optional bulkhead mounting: Optional shaft extension allows mounting through bulkheads up to 1-3/4" thick with only the selector handle exposed.
-
Self-cleaning design: Built for trouble-free operation with minimal maintenance, reducing downtime.
-
Easy installation: Three sturdy mounting feet and simple access via three hex head screws, plus a removable top cover and diverter assembly for quick service.
-
Clear flow direction: Molded-in arrows indicate flow direction for fast, intuitive use.
-
Bilge use versatility: Can be used to select between two bilge pickups in different compartments with a single pump.
The Jabsco Y-Valve combines robust, corrosion-resistant materials with flexible mounting options to simplify waste handling on boats of all sizes. Its self-cleaning design and clear flow indicators minimize maintenance while the rotatable ports and bulkhead-mount option adapt to a wide range of hull layouts. The padlock-ready selector adds security for holding-tank configurations, making it a dependable choice whether you’re outfitting a new build or upgrading an existing system.
