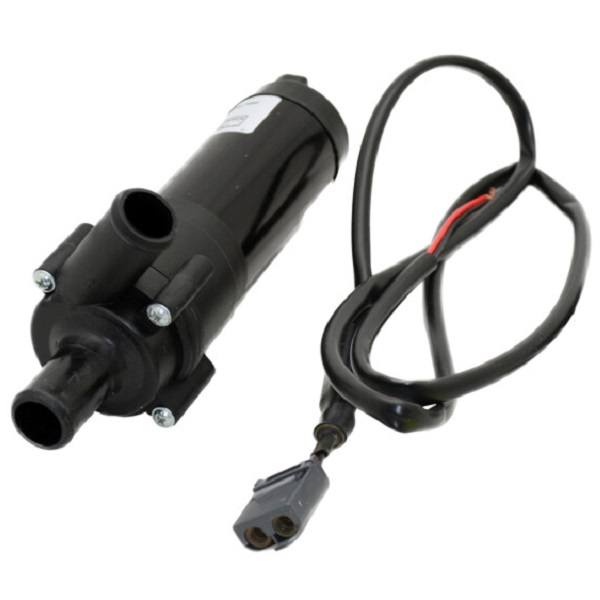

Johnson Pump 10-24486-03 CM10P7-1 Circulation Pump with flexible cord
The Johnson Pump CM10P7-1 is a heavy duty magnetically driven circulating pump. Compact but powerful, this is an ideal pump for circualtion duties such as water/antifreeze in heating systems or for circulating cooling fresh water. The CM series pumps by Johnson are normal-priming centrifugal pumps and should be mounted in a manner that ensures that they are always flooded or else be primed before switching on.
Features:
- Pump Body: PPA, Thermoplastic
- Shaft: Stainless Steel
- Impeller: PPA, Thermoplastic
Specifications:
- Voltage: 12
- Port size: 5/8" or 3/4" hose
- Minimum Liquid Temp: -40° F
- Maximum Liquid Temp: 212° F
- Dry running: 30 minutes max
- Input Power: 14W Max
- Mounting: Separate universal bracket for flat surfaces
- Capacity: 4 GPM
- Length: 6.97"
- System Pressure: 2.5 bar max (36 psi)
- Width: 2.68"
- Height: 3.35"
