Description

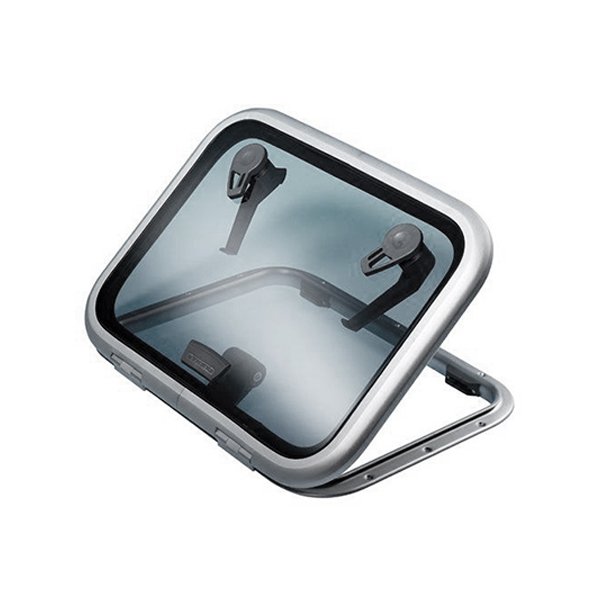

Lewmar Medium Profile Hatch
This Lewmar Medium Profile Hatch features thick acrylic frame sections allowing for greater strength and durability. The internal and external handles provide added security while the self-supporting friction levers hold the lid open in any position up to 95°. With a corrosion-resistant clear anodized aluminum frame with flange bases, inset hinges and snag-resistant rounded edges, this hatch is ideal for larger offshore yachts. The unique sealing system allows for easy replacement of the acrylic lens.
Features:
- Curved Upper Frame Section For Strength and Modern Styling
- Hatch With Thicker Acrylic and Deeper Frame Sections (Compared To Low Profile Hatch) For Greater Strength and Durability
- Ideal As Foredeck Hatch On Larger Offshore Yachts
- Corrosion-Resistant Clear Anodized Aluminum Frame With Flange Bases, Inset Hinges and Snag-Resistant Rounded Edges
- Locking Handles With Exterior Lever, Vent Position
- Outside Handles Allow Hatch To Be Opened From On Deck If Not Locked
- Self-Supporting - Friction Levers Hold Lid Open In Any Position Up To 95°
- Full Range Of Spare Parts Available
- Unique Sealing System Allows Easy Replacement Of Acrylic Lens
- CE Approved For Design Category A / Area 2A
- 3 Year Warranty
Specifications:
| Size | Lower Frame | Acrylic Colour | Acrylic Window Thickness | Hatch Weight | Length | Width | Height | Radii | Cut-Out Length | Cut-Out Width | Cut-Out Radii |
| 60 | 9/16" | Smoke Grey | 1/2" | 17.2 lb | 22-3/4" | 22-3/4" | 1-1/4" | 2-7/8" | 19-15/16" | 19-15/16" | 1-11/16" |
| 70 | 9/16" | Smoke Grey | 1/2" | 23.4 lb | 27-1/2" | 27-1/2" | 1-1/4" | 2-7/8" | 24-11/16" | 24-11/16" | 1-11/16" |
Click here to download Lewmar Hatch Installation Instructions
