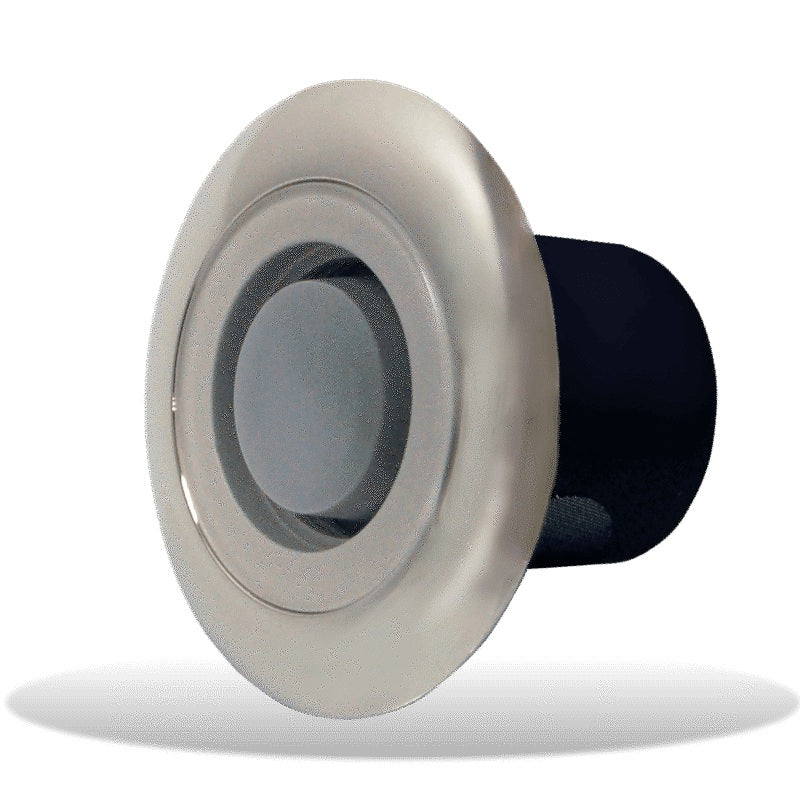

Lumishore LUX CL25 Courtesy Light delivers premium, full-spectrum illumination for boats, perfect for lighting external walkways, stairs, and architectural details while creating a warm and inviting atmosphere. The CL25 packs CRGBW performance and white-tunable light into a compact unit with a sleek chrome bezel for a polished, marine-ready look.
Full spectrum CRGBW with tunable white
Experience vibrant color options with CRGBW (cold white, red, green, blue, warm white) plus white color temperature tuning from 2700K to 6500K, all in a single courtesy light. Dial in the exact ambience you want, whether it’s cozy evening lighting or bright daylight visibility.
Rugged, marine-grade design
Completely sealed and IP68 rated, the CL25 is built to withstand harsh marine environments, indoors or outdoors. Its stainless, chrome bezel adds a touch of sophistication while remaining durable in tough conditions.
Efficient, versatile power and dimming
Powered by 12/24V DC (10.5–31V DC supply range) and rated at 5 watts, the CL25 delivers ample illumination with low power draw. Dimmable as standard, it ensures smooth brightness transitions for the perfect lighting scene.
Flexible control options
Control the CL25 with a momentary switch, or upgrade to full integration with your compatible MFD and/or Lumishore Display. It’s also compatible with the LUX Light Control Module for advanced light management. Each control module supports up to 16 courtesy lights for scalable installations.
Key specifications at a glance
-
Available colors: Full Spectrum CRGBW and white color temperature tuneable from 2700K to 6500K
-
Ingress Protection: IP68
-
Supply voltage: 10.5–31V DC
-
Max current draw: 0.1A (0.05A per channel as applicable)
-
Bezel diameter: 45 mm
-
Hole diameter for fitting: 25 mm
-
Mechanical installation: Screw fixings
-
Courtesy lights per control module: 16
-
Control options: Momentary switch; upgrade to full MFD and Lumishore Display
-
Warranty: 3 years
What’s in the box
- One (1) LUX Courtesy Light CL25
| Available colors |
Full Spectrum CRGBW and white color temperature tuneable from 2700K to 6500K |
| Ingress Protection |
IP68 |
| Supply Voltage Range |
10.5 — 31V DC |
| Max Current Draw |
0.1A / 0.05A |
| Front diameter (Bezel) |
45mm |
| Hole diameter for fitting |
25mm |
| Mechanical installation |
Screw fixings |
| Number of Courtesy Lights per control module |
16 |
| Control options |
Momentary switch with option to upgrade to full MFD and optional Lumishore Display |
| Warranty |
3 Years |
