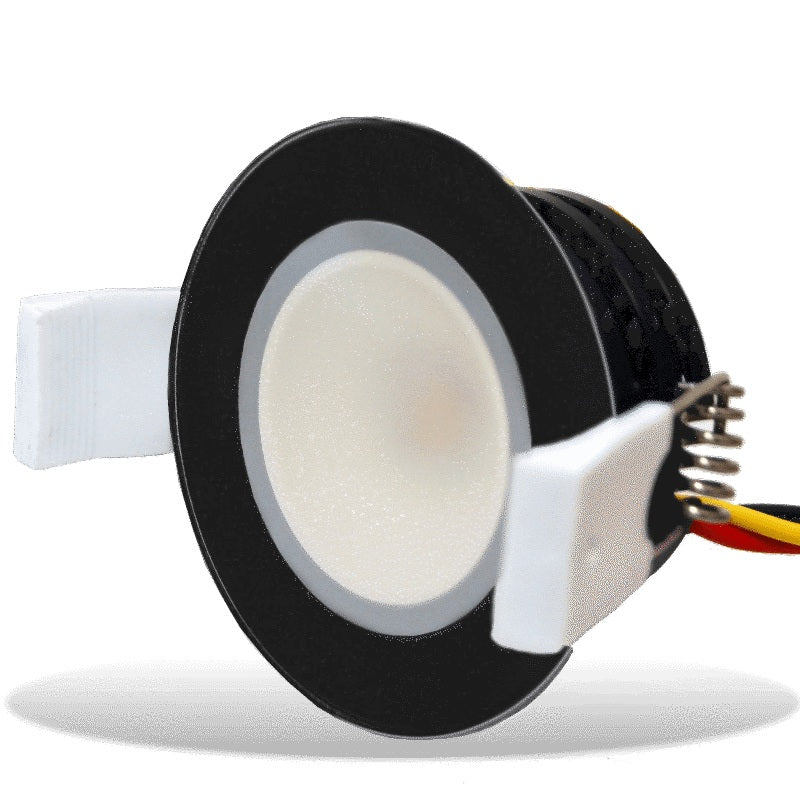

The Lumishore LUX DL50 Courtesy Downlight is a compact, 5-watt LED fixture designed for overhead lighting on boats and mobile spaces. It delivers full-spectrum CRGBW color with tunable white and is available with white or black bezel to suit your aesthetic.
-
Full Spectrum CRGBW with tunable white: color-mixing across RGBW plus white temperature adjustable from 2700K to 6500K for cinematic lighting and adaptable whites.
-
Low-profile 5W, 12/24V DC operation: efficient power in a slim form factor suitable for marine and mobile installations.
-
IP68 sealed and corrosion-resistant: fully weatherproof for interior and exterior overhead applications in harsh environments.
-
Two bezel options: white or black bezel with a durable aluminium body and hard anodised chassis for a sleek, long-lasting finish.
-
Slim, unobtrusive design: compact footprint that keeps overhead lighting discreet while delivering strong illumination.
-
Easy control and integration: operates with a momentary switch by default and can be upgraded to full MFD and Lumishore Display integration.
-
Dimmable via LUX Light Control Module: smooth, flicker-free ambient lighting with adjustable brightness.
-
Robust installation: front bezel Ø64 mm; hole Ø50 mm; secured with a spring clip for reliable mounting.
-
Electrical and scalability: supply voltage range 10.5–31V DC; max current draw 0.5A / 0.25A; supports up to 16 downlights per control module.
-
What's in the box: 1 x LUX Downlight DL50.
-
Warranty: 3-year limited warranty.
This downlight is ideal for overhead spaces where you want cinematic color, scene-setting whites, and precise color tuning without bulky hardware. Its marine-grade construction and 12/24V compatibility make it a versatile choice for boats, cabins, exterior decks, or any area where durable, customizable lighting is key. The fixture’s slim profile, combined with easy control options and scalable installation, helps you create the exact ambiance you need across multiple vessels or rooms.
| Available colors |
Full Spectrum CRGBW and white color temperature tuneable from 2700K to 6500K |
| Ingress Protection |
IP68 |
| Supply Voltage Range |
10.5 — 31V DC |
| Max Current Draw |
0.5A / 0.25A |
| Front diameter (Bezel) |
64mm |
| Hole diameter for fitting |
50mm |
| Mechanical installation |
Spring clip |
| Number of Downlights per control module |
16 |
| Control options |
Momentary switch with option to upgrade to full MFD and optional Lumishore Display |
| Warranty |
3 Years |
