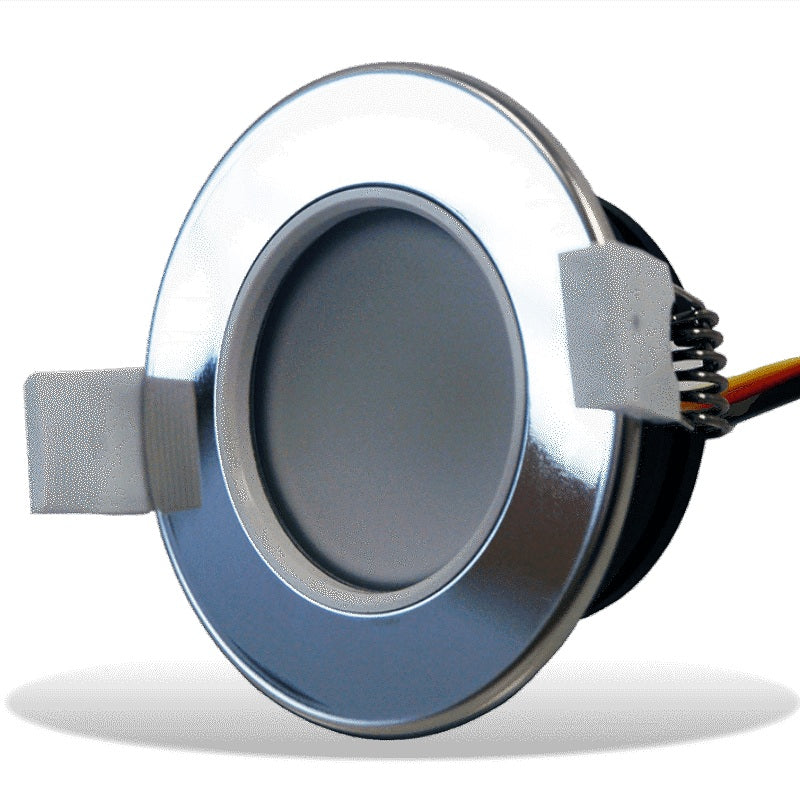

The Lumishore LUX DL65 Downlight is a compact, marine-grade CRGBW fixture designed for overhead cabin lighting on boats. It delivers vibrant color and tunable white in a 5W package, compatible with 12/24V DC and housed in a durable chrome bezel for both interior and exterior use.
-
Full-spectrum CRGBW with tunable white: Red, green, blue plus cold and warm white with adjustable white temperature from 2700K to 6500K in a single fixture.
-
Low power, high efficiency: Only 5 watts of power draw while providing rich, customizable illumination for mood, task lighting, and accents.
-
Marine-grade construction: Chrome bezel with a hard-anodized aluminum body and IP68 protection for rugged use in humid or wet environments.
-
Compact installation: Front bezel diameter 82mm with a 65mm fitting hole, enabling a clean, low-profile install.
-
Outdoor vs indoor installation: Outdoor installations use screw fittings; indoor installations use spring clips (indoor use only).
-
Voltage and current: Supply range 10.5–31V DC; max current draw 0.6A / 0.3A.
-
Smart control and integration: Dimmable via the LUX Light Control Module; compatible with a momentary switch or upgrade to full MFD and Lumishore Display; supports up to 16 downlights per control module.
-
Package contents: One (1) LUX Downlight DL65.
-
Warranty: 3-year warranty for lasting peace of mind.
-
Versatility: Designed for interior or exterior overhead lighting and adaptable to all cabin ceiling heights.
Tailor any space with precise white balance and vibrant color to suit activity or mood, from relaxing ambient light to focused task illumination. The DL65’s marine-grade build, IP68 protection, and rugged aluminum construction ensure dependable performance in humid or wet environments, while flexible mounting options simplify installs on both new builds and retrofit projects. With up to 16 fixtures per control module and optional Lumishore Display integration, you can create cohesive lighting scenes across the vessel and manage them from a single interface.
| Available colors |
Full Spectrum CRGBW and white color temperature tuneable from 2700K to 6500K |
| Ingress Protection |
IP68 |
| Supply Voltage Range |
10.5 — 31V DC |
| Max Current Draw |
0.6A / 0.3A |
| Front diameter (Bezel) |
82mm |
| Hole diameter for fitting |
65mm |
| Mechanical installation |
Screw fittings (outdoor), spring clips (indoor use only) |
| Number of Downlights per control module |
16 |
| Control options |
Momentary switch with option to upgrade to full MFD and optional Lumishore Display |
| Warranty |
3 Years |
