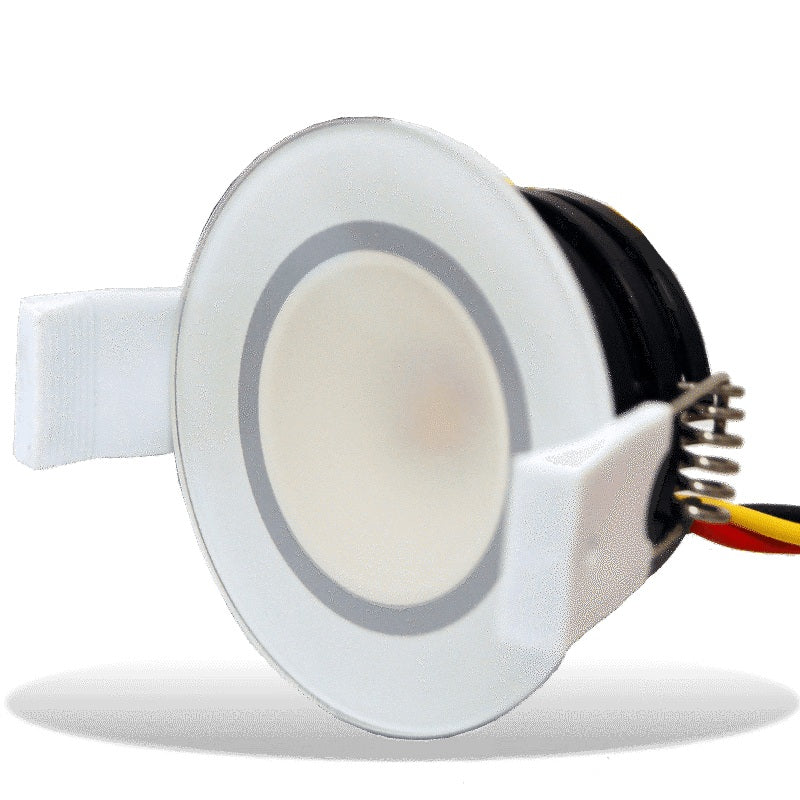

Meet the Lumishore LUX DL65 Downlight — a compact, high-output full-spectrum CRGBW LED downlight designed for overhead lighting on boats, yachts, and outdoor spaces. With 5 watts of power, a 12/24vDC input, and an ultra-slim profile, it delivers brilliant illumination without clutter.
Key features
-
Full system versatility — CRGBW plus tunable white (cold white, red, green, blue, warm white) with white temperature adjustable from 2700K to 6500K.
-
Slim, durable build — hard anodised aluminium body with optional white or black bezel to suit your boat’s style.
-
Industrial-grade reliability — completely sealed and IP68 rated for versatile indoor or outdoor overhead use.
-
Dimmable by default and powered by the LUX Light Control Module for smooth, consistent lighting.
-
Flexible control — operate with a momentary switch; upgrade to full MFD and Lumishore Display integration for advanced control.
-
Marine-ready installation — compact footprint with a 64mm front diameter and a 50mm mounting hole; supports up to 16 downlights per control module.
-
Electrical specs — supply range 10.5–31V DC; max current draw 0.5A / 0.25A; 5W power consumption.
-
Warranty — 3-year limited warranty for peace of mind.
Technical specifications
-
Light output — Full Spectrum CRGBW with white color temperature tuneable from 2700K to 6500K.
-
Ingress Protection — IP68 rated.
-
Electrical — 12/24V DC operation; 5W power; current draw up to 0.5A / 0.25A.
-
Physical dimensions — front bezel diameter 64mm; installation hole 50mm.
-
Housing — hard anodised aluminium; white or black bezel option.
-
Controls — momentary switch control; optional upgrade to MFD and Lumishore Display; dimmable via LUX system.
-
Module compatibility — LUX Light Control Module supports up to 16 downlights per control module.
-
Warranty — 3 years.
What's in the box
One LUX Downlight DL65.
| Available colors |
Full Spectrum CRGBW and white color temperature tuneable from 2700K to 6500K |
| Ingress Protection |
IP68 |
| Supply Voltage Range |
10.5 — 31V DC |
| Max Current Draw |
0.5A / 0.25A |
| Front diameter (Bezel) |
64mm |
| Hole diameter for fitting |
50mm |
| Mechanical installation |
Spring clip |
| Number of Downlights per control module |
16 |
| Control options |
Momentary switch with option to upgrade to full MFD and optional Lumishore Display |
| Warranty |
3 Years |
