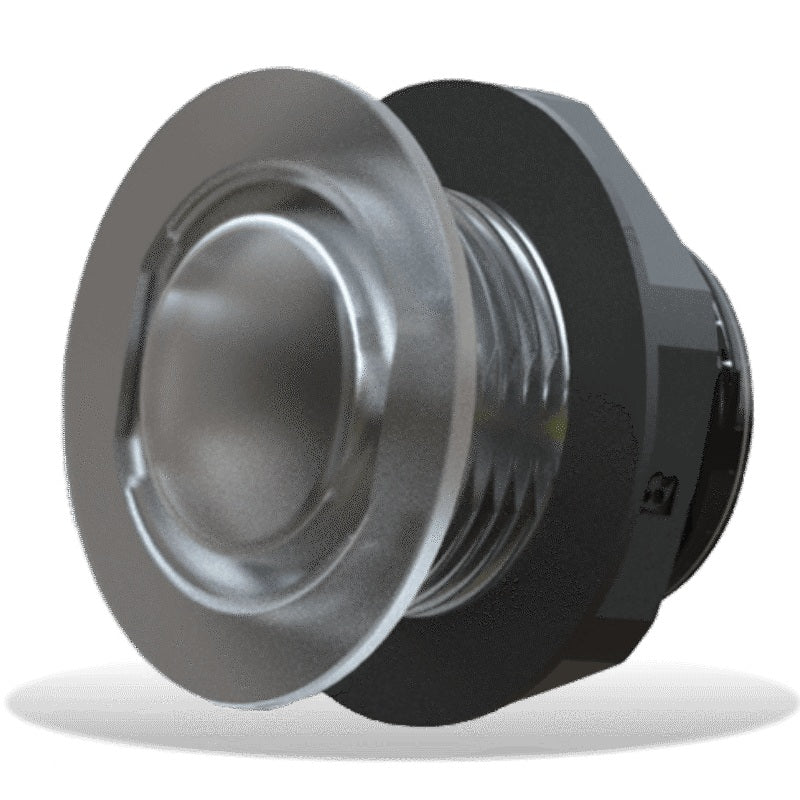

The Lumishore LUX LW25 Livewell Light is engineered for the harsh realities of marine life. Designed to live in livewells, fish boxes, splash wells, or any wet area on board (even submerged), this chrome-bezel light delivers vibrant color, precise white tuning, and rock-solid reliability in one compact unit. With 12/24V DC operation and a sleek, corrosion-resistant finish, the LW25 brings pro-grade illumination to your vessel.
Key features
-
Full Spectrum CRGBW lighting provides cold white, red, green, blue, and warm white, plus tunable white color temperature from 2700K to 6500K for perfect underwater or interior ambience.
-
Ultra-low power draw—rated at 0.5W, with a current draw of up to 0.1A at 12V or 0.05A at 24V—keeping battery use minimal while maximizing visibility.
-
12/24V DC compatibility ensures seamless integration on any modern boat electrical system.
-
IP68 sealed construction for complete protection against water, dust, and corrosion in demanding marine environments.
-
Chrome bezel options — install with or without the stainless steel bezel to suit your aesthetic and installation needs.
-
Dimmable by default and powered by the LUX Light Control Module for smooth, scene-appropriate lighting.
Control and integration
- Control with a simple momentary switch or upgrade to full MFD and optional Lumishore Display integration for advanced customization.
- Supports up to 16 LW25 lights per control module, enabling large, uniform lighting across multiple livewells or compartments.
- Fully configurable white temperature and color mix to optimize visibility for fish behavior, lure presentation, and crew safety.
Dimensions, installation, and durability
-
Front diameter (with bezel): 50 mm; Profile (with bezel): 5.4 mm. Without bezel: 36 mm front diameter; 3.5 mm profile.
-
Depth: 30.0 mm; Hole diameter for fitting: 25 mm.
- installs as Bulkhead Panel Mount (with marine adhesive) for secure, long-lasting mounting in even challenging hulls.
What’s in the box
- One (1) LUX Livewell Light LW25
Warranty
Backed by a 3-year warranty, the LW25 is built to endure the rigors of marine life and provide dependable illumination season after season.
| Available colors |
Full Spectrum CRGBW and white color temperature tuneable from 2700K to 6500K |
| Ingress Protection |
IP68 |
| Supply Voltage Range |
10.5 - 31 V DC |
| Max Current Draw |
0.1A / 0.05A |
| Front diameter (Bezel) |
50mm |
| Profile (Bezel) |
5.4mm |
| Front diameter (Without Bezel) |
36mm |
| Profile (Without Bezel) |
3.5mm |
| Depth |
30.0mm |
| Hole diameter for fitting |
25mm |
| Mechanical installation |
Bulkhead Panel Mount (with marine adhesive) |
| Number of Livewell Lights per control module |
16 |
| Control options |
Momentary switch or upgrade to full MFD and optional Lumishore Display |
| Warrnty |
3 Years |
