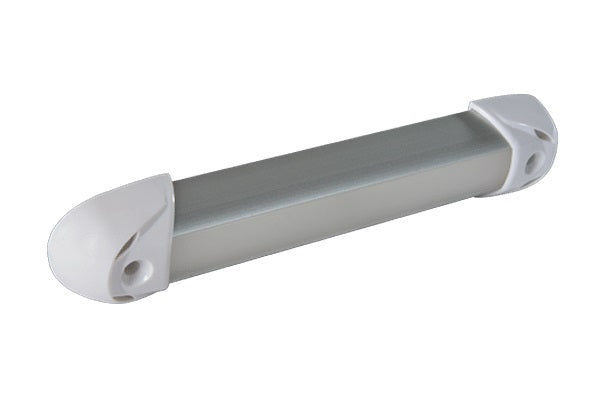

The Lumitec 6in Mini Rail2 Spectrum LED Utility Light is a compact, versatile lighting solution for marine, outdoor, and interior spaces. Its brushed housing, IP67 sealing, and flexible voltage and color options deliver durable, energy-efficient illumination wherever you need it.
-
Voltage & Power: 10–30V DC operation; 12V draws 360mA, 24V draws 200mA; rated watts 4
-
Light Output & Color: 145 lumens of white light at 5000K; CRI 70+
-
Color Options: Warm White, Neutral White, Blue, or Red
-
Durability & Sealing: Brushed housing with IP67 waterproof and dust-tight sealing for exterior and demanding interior use
-
Dimensions & Mounting: 6" long; height 5.90" (14.97 cm), width 1.11" (2.82 cm), depth 0.60" (1.53 cm); mounting hole diameter 5/32"
-
Smart Features: Timed Toggled Protocol (TTP), Third Party Dimmer Compatibility (3PD), Color Match Commitment (CM) for consistent color across units
-
Applications: Ideal for marine dashboards, boat interiors, exterior accents, work areas, or any space requiring bright, durable illumination
Designed for reliability and versatility, the Lumitec Mini Rail2 Spectrum provides crisp, energy-efficient brightness with flexible power and color options. The IP67 rating protects against rain, splashes, and dust, while the smart features enable easy integration with dimmers and timers to match your workflow or mood.
| Lumens (White) |
145 |
| Voltage |
10-30vDC |
| 12v DC Amps |
360mA |
| 24v DC Amps |
200mA |
| Rated Watts |
4 |
| CCT |
5000 |
| CRI |
70+ |
| Op. Temp F/C |
-31/35 to + 131/55 |
| Timed Toggled Protocol (TTP) |
Yes |
| Third Party Dimmer Compatibility (3PD) |
Yes |
| Color Match Commitment (CM) |
Yes |
| Mounting Hole Diameter |
5/32" |
| Height |
5.90in (14.97cm) |
| Width |
1.11in (2.82cm) |
| Depth |
0.60in (1.53cm) |
| Diameter |
N/A |
