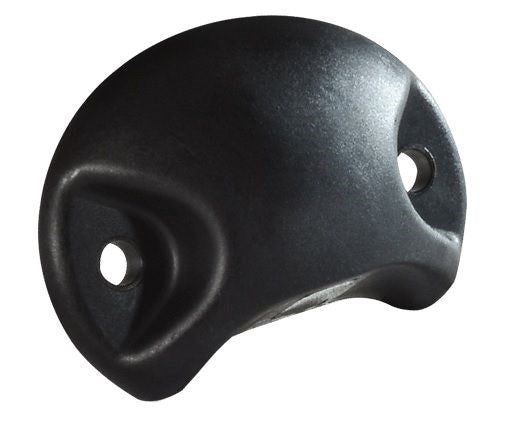

Meet the Lumitec Barbados Courtesy/Accent Red LED Light with Black Housing for 12V systems. Originally engineered for military applications, this robust, high-output light delivers exceptional performance with clean, streamlined lines that pair well with marine and industrial gear.
Built Tough for Marine and Industrial Environments
Featuring an extremely durable composite housing and a smooth rounded profile to avoid snagging pant cuffs, lines, or clothing — Barbados is ideal for toe-kick lighting along stairwells or as a discreet courtesy light on decks and companionways.
Key Features
-
Color/Output: Red LED with Color Rendering Index (CRI) 70+ and Color Match Commitment (CM) Yes
-
Power & Efficiency: 12V DC operation, 45 mA current draw (0.55 W)
-
Durability: Extremely durable composite housing, IP67 rated, designed to cover a DPT-02 Deutsch connector hole for clean installation
-
Size & Light Output: 45 lumens, compact footprint: 0.52 in depth (1.33 cm), 1.28 in height (3.25 cm), 1.81 in width (4.60 cm)
-
Operating Range & Compliance: Voltage 10-16 VDC; CCT 5000K; CE Certified; UL Not Certified; PLI Enabled No
-
Compatibility: Third Party Dimmer Compatibility (3PD) Yes; Timed Toggled Protocol (TTP) No
Detailed Specifications
-
Model: 101061
-
Lumens: 45
-
Operating Temp: -31°F to +131°F (-35°C to +55°C)
-
Voltage: 10-16 VDC
-
IP Rating: IP67
-
CCT: 5000K
-
Color Output: Red
-
Color Rendering Index (CRI): 70+
-
Depth/Height/Width: 0.52 in / 1.28 in / 1.81 in
-
Amps: 45 mA @ 12 VDC
Why Barbados?
With its military-grade heritage, the Barbados light offers a clean, modern aesthetic without sacrificing performance. It installs effortlessly, provides reliable red illumination for courtesy or accent lighting, and stands up to demanding conditions—making it a versatile choice for boats, fleets, warehouses, and outdoor stairwells.
| Amps |
45mA @12vDC |
| Correlated Corrected Temperature (CCT) |
5000 |
| CE Certified |
Yes |
| Color Match Commitment (CM) |
Yes |
| Color Output |
Red |
| Color Rendering Index (CRI) |
70+ |
| Depth |
0.52in (1.33cm) |
| Height |
1.28in (3.25cm) |
| Width |
1.81in (4.60cm) |
| Lumens |
45 |
| Operating Temp F/C |
-31/35 to +131/55 |
| PLI Enabled |
No |
| Related Watts |
0.55 |
| Third Party Dimmer Compatibility (3PD) |
Yes |
| Timed Toggled Protocol (TTP) |
No |
| UL Certified |
No |
| Voltage |
10-16vDC |
| IP Rating |
67 |
| Amps |
45mA @12vDC |
| Correlated Corrected Temperature (CCT) |
5000 |
| CE Certified |
Yes |
| Color Match Commitment (CM) |
Yes |
| Color Output |
Red |
| Color Rendering Index (CRI) |
70+ |
| Depth |
0.52in (1.33cm) |
| Height |
1.28in (3.25cm) |
| Width |
1.81in (4.60cm) |
| Lumens |
45 |
| Operating Temp F/C |
-31/35 to +131/55 |
| PLI Enabled |
No |
| Related Watts |
0.55 |
| Third Party Dimmer Compatibility (3PD) |
Yes |
| Timed Toggled Protocol (TTP) |
No |
| UL Certified |
No |
| Voltage |
10-16vDC |
| IP Rating |
67 |
