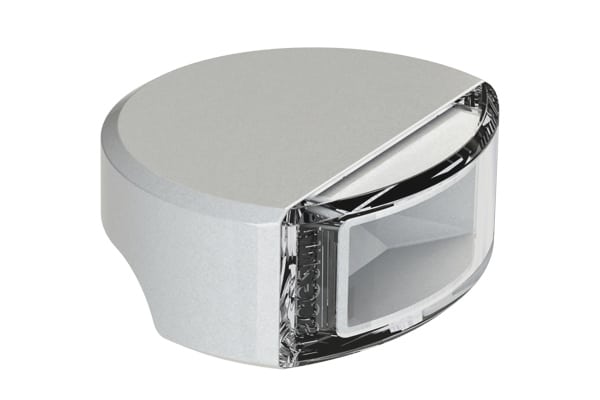

Meet the Lumitec Contour Navigation Surface Mount Stern Light in White Finish — the perfect solution for retrofit and new installations where an inset pocket isn’t practical. Crafted from a high-durability composite, this sleek, contemporary navigation light delivers reliable performance on horizontal mounting surfaces with clean styling that won’t clutter your deck or profile.
Overview
Designed for harsh marine environments, the Lumitec Contour Navigation light provides clear, Coast Guard-approved visibility over a 2 nautical mile range while drawing a minimal 1.5 watts. Its surface-mount design eliminates the need for molded-in pockets, making it ideal for retrofits and new builds where space or fixtures are limited.
Highlights
- Durable, impact-resistant composite housing with a modern, low-profile aesthetic
- Surface-mount installation for horizontal surfaces without inset pockets
- US Coast Guard approved for 2 NM visibility
- Voltage range: 10–30 VDC (12 V nominal); compatible with 12/24 V systems
- Low power consumption: rated at 1.5 W; current draw 18 mA at 12 V and 12 mA at 24 V
- Operating temperature: -31°F to 131°F (-35°C to 55°C)
Specifications
- Model: 101598
- Finish: White
- Light Type: Surface Mount Stern Navigation Light
- Visibility: 2 NM (USCG approved)
- Voltage: 10–30 VDC
- Current: 18 mA at 12 V; 12 mA at 24 V
- Power: 1.5 W
- CCT: N/A
- CRI: N/A
- Operating Temp: -31°F to 131°F / -35°C to 55°C
Dimensions & Mounting
- Height: 1 in (2.54 cm)
- Width: 4.5 in (11.43 cm)
- Depth: 2.1 in (5.33 cm)
- Mounting: Horizontal surface mount; no inset pocket required
| Lumens (White) |
2 NM |
| Voltage |
10-30vDC |
| 12v DC Amps |
18mA |
| 24c DC Amps |
12mA |
| Rated Watts |
1.5W |
| CCT |
N/A |
| CRI |
N/A |
| Op. Temp F/C |
-31/35 to + 131/55 |
| Timed Toggled Protocol (TTP) |
No |
| Third Party Dimmer Compatibility (3PD) |
No |
| Color Match Commitment (CM) |
No |
| Mounting Hole Diameter |
N/A |
| Height |
1 in (2.54 cm) |
| Width |
4.5 in (11.43 cm) |
| Depth |
2.1 in (5.33 cm) |
| Diameter |
N/A |
